FT8DE (2013)
INTAKE

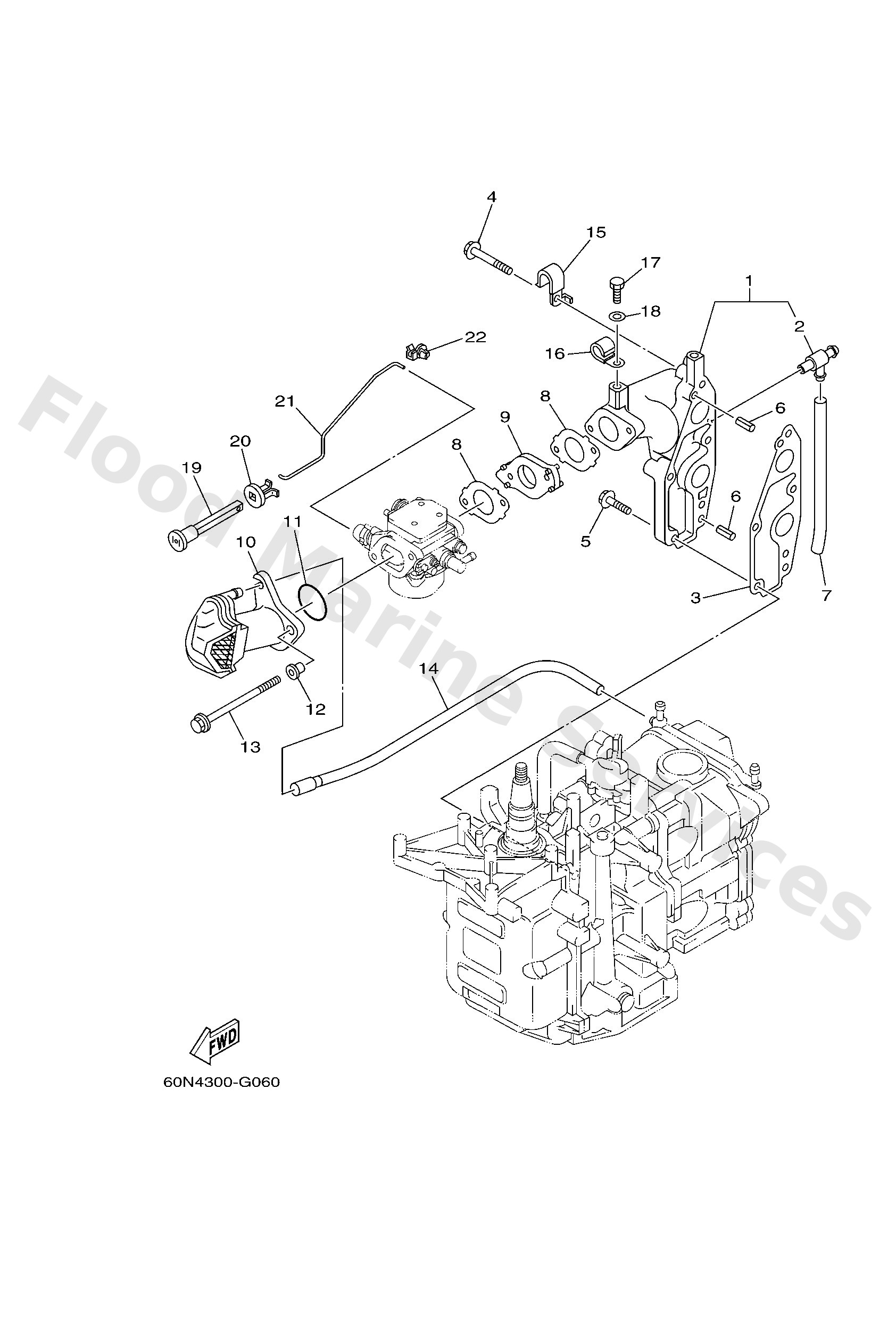

Diagram: INTAKE
Parts List
Reference
Description
Price
1
60RE3641201S
FLUSHING KIT
Manifold 1
Loading…
↗
2
67F1248200
Pipe 2
Loading…
↗
3
68T1364500
Gasket, manifold 1
Loading…
↗
4
9011906MA5
Bolt, with washer
Loading…
↗
5
9011906MA3
Bolt, with washer
Loading…
↗
6
9169050014
Pin, spring (647)
Loading…
↗
7
9044509812
FLUSHING KIT
Hose (L93)
Loading…
↗
8
60RE3646A0
Gasket, manifold 2
Loading…
↗
9
68T1427100
Insulator
Loading…
↗
10
60RE444000
Silencer assembly, intake
Loading…
↗
11
9321031MJ5
O-ring
Loading…
↗
12
9038706M70
Collar (6h5)
Loading…
↗
13
9010506188
Bolt, flange
Loading…
↗
14
60RE248300
Pipe 3
Loading…
↗
15
9046508M99
Clamp
Loading…
↗
16
9046508M83
FLUSHING KIT
Clamp
Loading…
↗
17
9709506010
FLUSHING KIT
Bolt
Loading…
↗
18
9299506600
FLUSHING KIT
Washer, plain (646)
Loading…
↗
19
6H44127102
Knob, choke
Loading…
↗
20
6894127300
Grommet
Loading…
↗
21
68T4125600
Rod, choke 1
Loading…
↗
22
6J84126200
Joint, choke lever
Loading…
↗
