FT8DMH (2003)
INTAKE

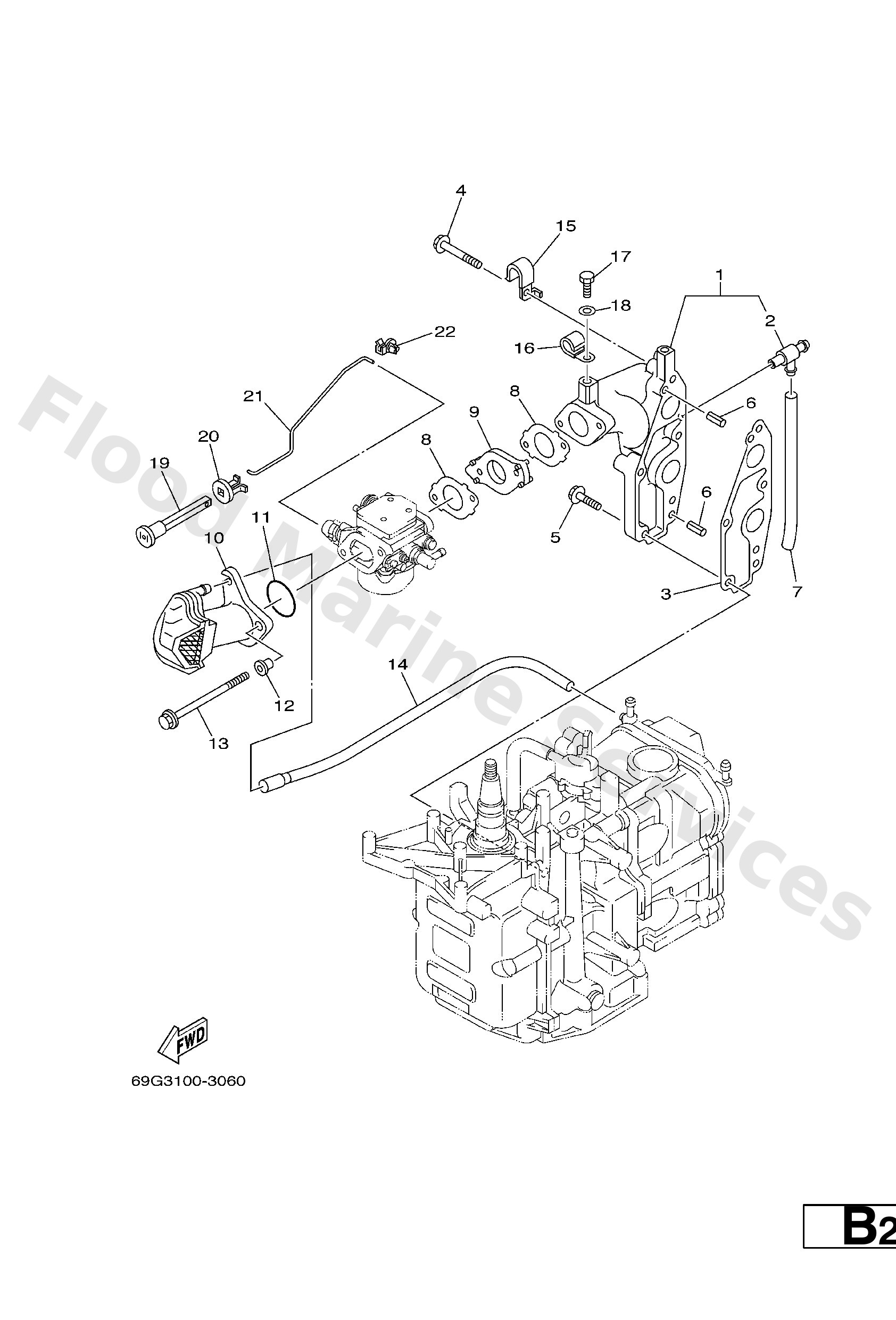

Diagram: INTAKE
Parts List
Reference
Description
Price
1
68T−13641−20−1S
FOR FLUSHING KIT
Manifold 1
Loading…
↗
2
67F−12482−00
Pipe 2
Loading…
↗
3
68T−13645−00
Gasket, manifold 1
Loading…
↗
4
90119−06MA5
Bolt, with washer
Loading…
↗
5
90119−06MA3
Bolt, with washer
Loading…
↗
6
91690−50014
Pin, spring (647)
Loading…
↗
7
90445−09M20
FOR FLUSHING KIT
Hose (L95)
Loading…
↗
8
68T−13646−A0
Gasket, manifold 2
Loading…
↗
9
68T−14271−00
Insulator
Loading…
↗
10
68T−14440−00
Silencer assembly, intake
Loading…
↗
11
93210−31MJ5
O-ring
Loading…
↗
12
90387−06M70
Collar (6h5)
Loading…
↗
13
97595−06585
Bolt, flange
Loading…
↗
14
68T−12483−00
Pipe 3
Loading…
↗
15
90465−08M99
Clamp
Loading…
↗
16
90465−08M83
FOR FLUSHING KIT
Clamp
Loading…
↗
17
97095−06010
FOR FLUSHING KIT
Bolt
Loading…
↗
18
92995−06600
FOR FLUSHING KIT
Washer, plain (646)
Loading…
↗
19
6H4−41271−01
Knob, choke
Loading…
↗
20
689−41273−00
Grommet
Loading…
↗
21
68T−41256−00
Rod, choke 1
Loading…
↗
22
6J8−41262−00
Joint, choke lever
Loading…
↗
