FT9.9DE (2007)
INTAKE

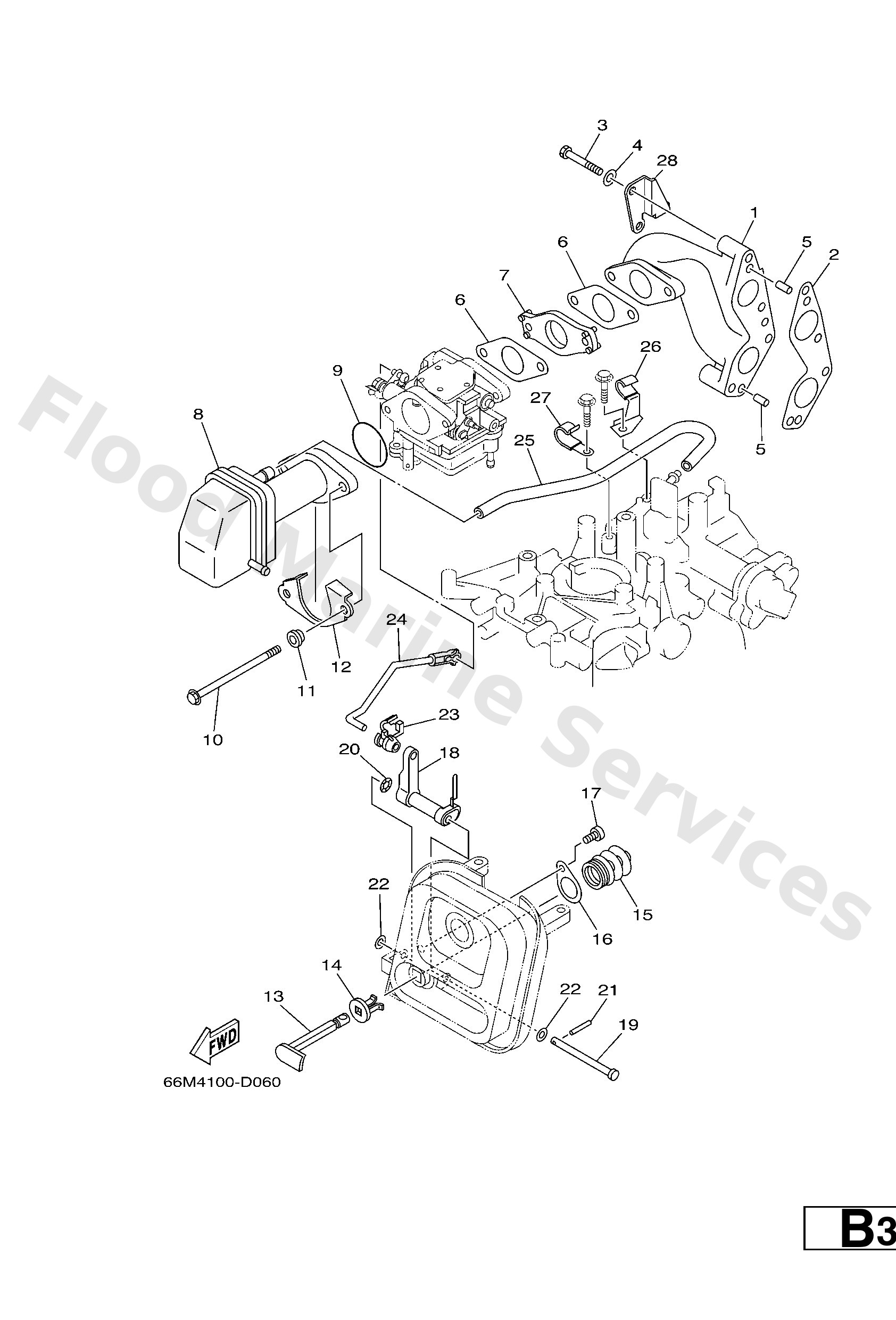

Diagram: INTAKE
Parts List
Reference
Description
Price
1
66M136411094
Manifold 1
Loading…
↗
2
66M1364500
Gasket, manifold 1
Loading…
↗
3
9709506040
Bolt (682)
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
9360612019
Pin, dowel (614)
Loading…
↗
6
66M1364600
Gasket, manifold 2
Loading…
↗
7
66M1427100
Insulator
Loading…
↗
8
66M1444000
Silencer assembly, intake
Loading…
↗
9
9321035M86
O-ring(6l2)
Loading…
↗
10
9011906M76
Bolt, with washer
Loading…
↗
11
9038706M79
Collar
Loading…
↗
12
66M1447700
Plate
Loading…
↗
13
66M4127100
Knob, choke
Loading…
↗
14
6894127300
Grommet
Loading…
↗
15
66M4129200
Bush 2
Loading…
↗
16
66M4129800
Washer 2
Loading…
↗
17
9778050510
Screw, tapping(6u1)
Loading…
↗
18
66M4125200
Lever, choke 1
Loading…
↗
19
9024005M20
Pin, clevis
Loading…
↗
20
9020605005
Washer, wave(656)
Loading…
↗
21
9169020016
Pin, spring (677)
Loading…
↗
22
9020205088
Washer, plate (666)
Loading…
↗
23
6R54123700
Joint, link
Loading…
↗
24
66M4125600
Rod, choke 1
Loading…
↗
25
66M1537300
Pipe, breather
Loading…
↗
26
9046508M82
Clamp
Loading…
↗
27
9046508M83
Clamp
Loading…
↗
28
6D42456600
Bracket, Filter
Loading…
↗
