FT9.9DMH (2002)
INTAKE

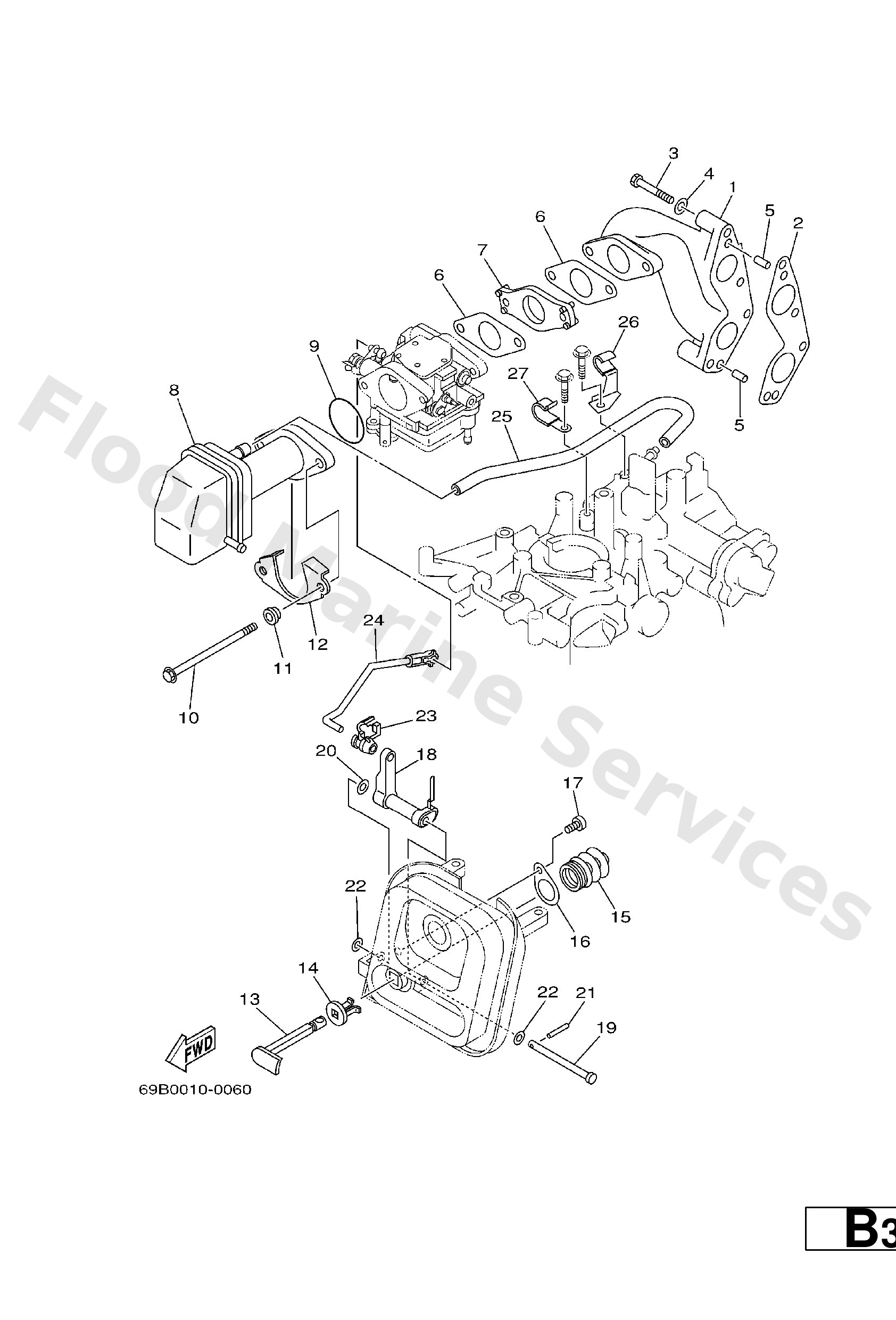

Diagram: INTAKE
Parts List
Reference
Description
Price
1
66M−13641−00−94
Manifold 1
Loading…
↗
2
66M−13645−00
Gasket, manifold 1
Loading…
↗
3
97095−06040
Bolt (682)
Loading…
↗
4
92995−06600
Washer, plain (646)
Loading…
↗
5
93606−12019
Pin, dowel (614)
Loading…
↗
6
66M−13646−00
Gasket, manifold 2
Loading…
↗
7
66M−14271−00
Insulator
Loading…
↗
8
66M−14440−00
Silencer assembly, intake
Loading…
↗
9
93210−35M86
O-ring(6l2)
Loading…
↗
10
90119−06M76
Bolt, with washer
Loading…
↗
11
90387−06M79
Collar
Loading…
↗
12
66M−14477−00
Plate
Loading…
↗
13
66M−41271−00
Knob, choke
Loading…
↗
14
689−41273−00
Grommet
Loading…
↗
15
66M−41292−00
Bush 2
Loading…
↗
16
66M−41298−00
Washer 2
Loading…
↗
17
97780−50510
Screw, tapping(6u1)
Loading…
↗
18
66M−41252−00
Lever, choke 1
Loading…
↗
19
90240−05M20
Pin, clevis
Loading…
↗
20
90206−05005
Washer, wave(656)
Loading…
↗
21
91690−20016
Pin, spring (677)
Loading…
↗
22
90202−05088
Washer, plate (666)
Loading…
↗
23
6R5−41237−00
Joint, link
Loading…
↗
24
66M−41256−00
Rod, choke 1
Loading…
↗
25
66M−15373−00
Pipe, breather
Loading…
↗
26
90465−08M82
Clamp
Loading…
↗
27
90465−08M83
Clamp
