L200FETO (2003)
INTAKE

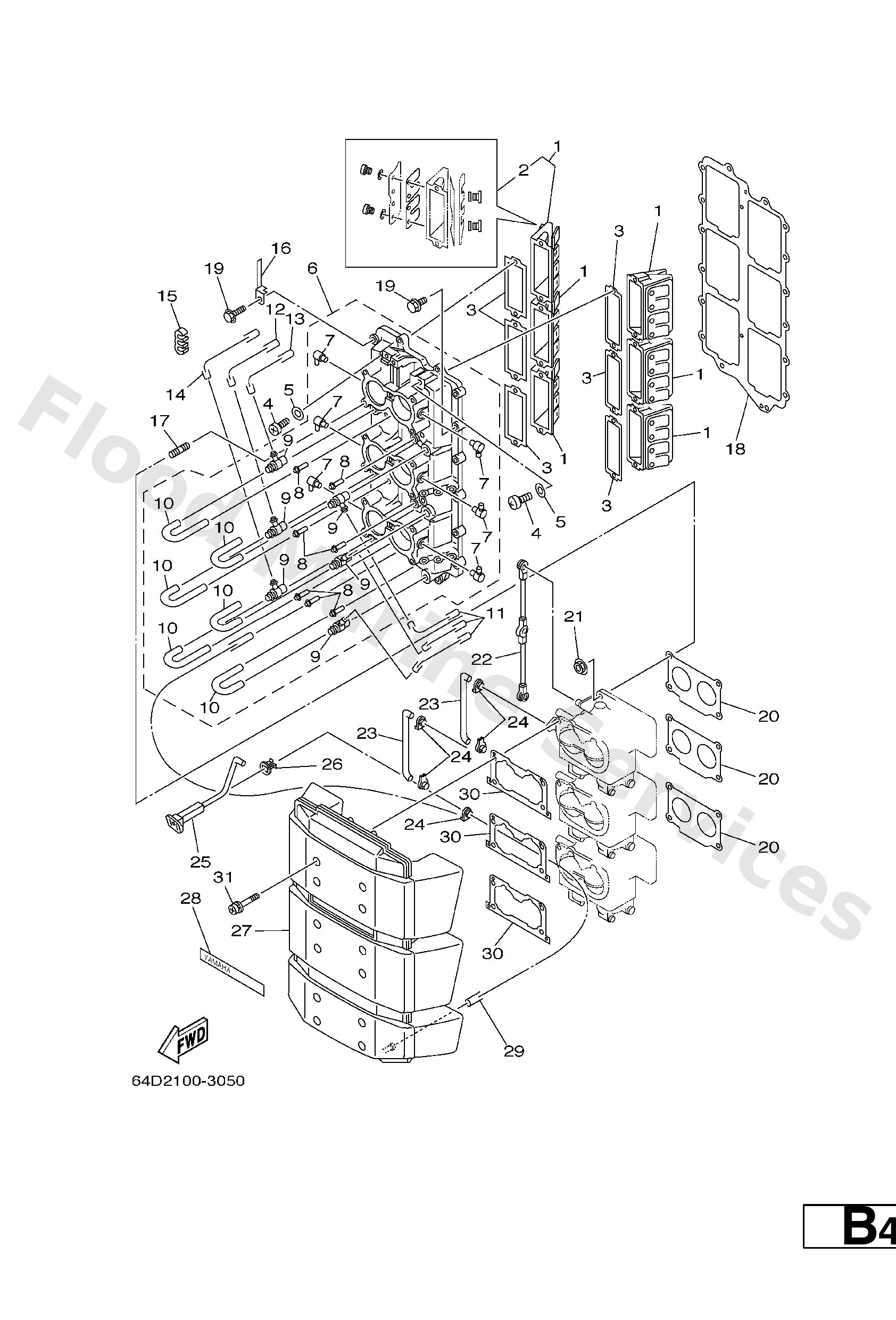

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6E5−13610−00
Reed valve assembly
Loading…
↗
2
6E5−W0004−00
Reed set
Loading…
↗
3
6E5−13621−A1
Gasket, valve seat
Loading…
↗
4
97880−05016
Screw, pan head(6b0)
Loading…
↗
5
92990−05600
Washer, plain (646)
Loading…
↗
6
6G5−13641−11−1S
Manifold 1
Loading…
↗
7
6E5−13552−01
Nozzle
Loading…
↗
8
624−14485−00
Pipe, joint
Loading…
↗
9
6E5−11370−01
Check valve assembly
Loading…
↗
10
90445−07M28
Hose (l200)
Loading…
↗
11
90445−07M45
Hose (l390)
Loading…
↗
12
90445−07M46
Hose (l390)
Loading…
↗
13
90445−07M09
Hose (l390)
Loading…
↗
14
90445−07M59
Hose (l770)
Loading…
↗
15
90464−07M05
Clamp (6g5)
Loading…
↗
16
90465−10M91
Clamp
Loading…
↗
17
90116−06M30
Bolt, stud(6e5)
Loading…
↗
18
6G5−13645−A2
Gasket, manifold 1
Loading…
↗
19
90119−06MA3
Bolt, with washer
Loading…
↗
20
6E5−14198−A2
Gasket
Loading…
↗
21
90179−06M28
Nut(63v)
Loading…
↗
22
6G5−41217−01
Rod, accel. lever
Loading…
↗
23
6E5−41256−01
Rod, choke 1
Loading…
↗
24
661−41262−02
Joint, choke lever
Loading…
↗
25
6R3−41271−00
Knob, choke
Loading…
↗
26
689−41273−00
Grommet
Loading…
↗
27
6R3−14440−02
Silencer assembly, intake
Loading…
↗
28
6G5−1441K−00
Emblem
Loading…
↗
29
90445−07MA3
Hose (l200)
Loading…
↗
30
6K7−14483−00
Gasket
Loading…
↗
31
90159−06M14
Screw, with washer(6r3)
Loading…
↗
