L200FETO (2010)
INTAKE

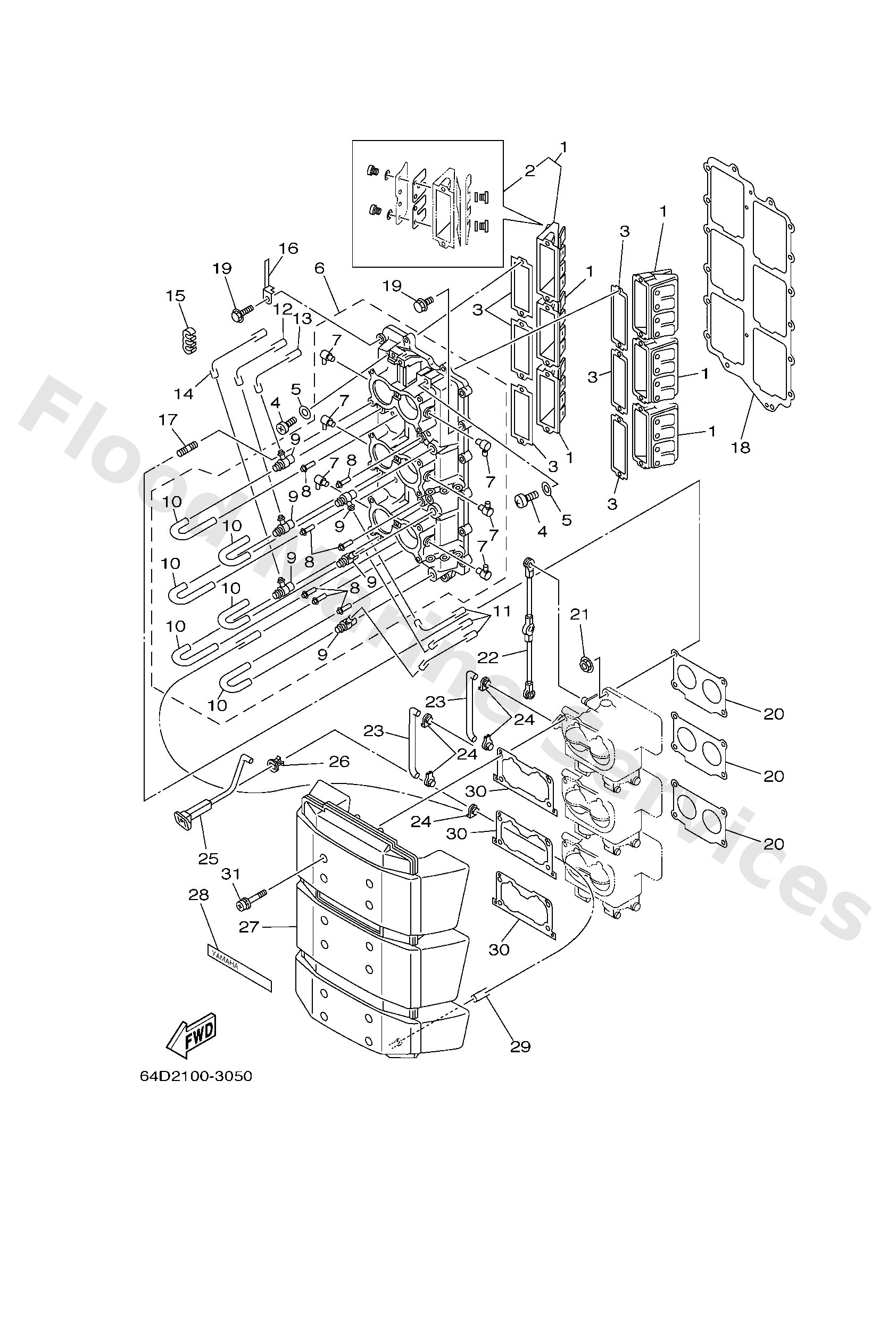

Diagram: INTAKE
Parts List
Reference
Description
Price
1
6E51361000
Reed valve assembly
Loading…
↗
2
6E5W000400
Reed set
Loading…
↗
3
6E513621A1
Gasket, valve seat
Loading…
↗
4
9788005016
Screw, pan head(6b0)
Loading…
↗
5
9299005600
Washer, plain (646)
Loading…
↗
6
6G513641111S
Manifold 1
Loading…
↗
7
6E51355201
Nozzle
Loading…
↗
8
6241448500
Pipe, joint
Loading…
↗
9
6E51137001
Check valve assembly
Loading…
↗
10
9044507M28
Hose (l200)
Loading…
↗
11
9044507M45
Hose (l390)
Loading…
↗
12
9044507M46
Hose (l390)
Loading…
↗
13
9044507M09
Hose (l390)
Loading…
↗
14
9044507M59
Hose (l770)
Loading…
↗
15
9046407M05
Clamp (6g5)
Loading…
↗
16
9046510M91
Clamp
Loading…
↗
17
9011606M30
Bolt, stud(6e5)
Loading…
↗
18
6G513645A2
Gasket, manifold 1
Loading…
↗
19
9011906MA3
Bolt, with washer
Loading…
↗
20
6E514198A2
Gasket
Loading…
↗
21
9017906M28
Nut(63v)
Loading…
↗
22
6G54121701
Rod, accel. lever
Loading…
↗
23
6E54125601
Rod, choke 1
Loading…
↗
24
6614126202
Joint, choke lever
Loading…
↗
25
6R34127100
Knob, choke
Loading…
↗
26
6894127300
Grommet
Loading…
↗
27
6R31444002
Silencer assembly, intake
Loading…
↗
28
6G51441K00
Emblem
Loading…
↗
29
9044507MA3
Hose (l200)
Loading…
↗
30
6K71448300
Gasket
Loading…
↗
31
9015906M14
Screw, with washer(6r3)
Loading…
↗
