L250AETO (2005)
INTAKE

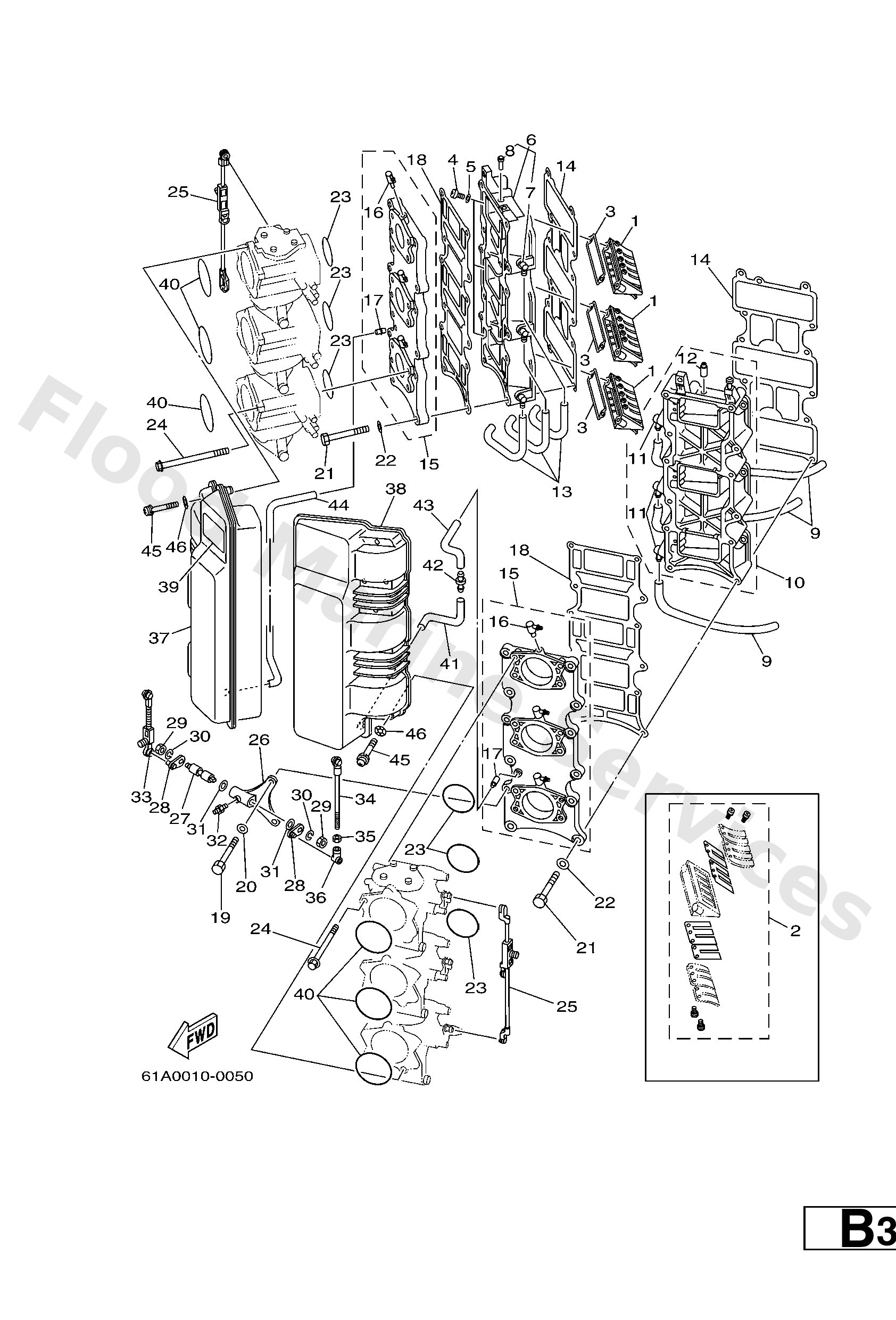

Diagram: INTAKE
Parts List
Reference
Description
Price
1
65L1361001
Reed valve assembly
Loading…
↗
2
65JW000401
Reed set
Loading…
↗
3
61A13621A0
Gasket, valve seat
Loading…
↗
4
9788005016
Screw, pan head(6b0)
Loading…
↗
5
9299005600
Washer, plain (646)
Loading…
↗
6
61A13624201S
Plate,Reed Valve
Loading…
↗
7
6E51137201
Nipple, hose
Loading…
↗
8
6502437800
Pipe, joint 2
Loading…
↗
9
9044507M20
Hose (l770)
Loading…
↗
10
61A13624301S
Plate,Reed Valve
Loading…
↗
13
9044507M45
Hose (l390)
Loading…
↗
14
61A1364600
Gasket, manifold 2
Loading…
↗
15
61A13641001S
Manifold 1
Loading…
↗
16
61A1355200
Nozzle
Loading…
↗
17
6241448500
Pipe, joint
Loading…
↗
18
61A1364500
Gasket, Manifold 1
Loading…
↗
19
9701306070
Bolt(62j)
Loading…
↗
20
9290306600
Washer, plain (646)
Loading…
↗
21
9701306065
Bolt(62j)
Loading…
↗
23
9321050MA8
O-ring(61a)
Loading…
↗
24
9010506M55
Bolt, Flange
Loading…
↗
25
61A4121701
Rod, accel. lever
Loading…
↗
26
61A41663001S
Bracket 3
Loading…
↗
27
61A4124200
Rod 2
Loading…
↗
28
61A4128000
Accel. Lever assembly
Loading…
↗
29
9538006600
Nut(661)
Loading…
↗
30
9299006100
Washer(6a1)
Loading…
↗
31
9020208M41
Washer, plate(6t4)
Loading…
↗
32
9370006M03
Nipple, grease(6a1)
Loading…
↗
33
61A4121101
Link, Accel.
Loading…
↗
34
6J84123700
Joint, link
Loading…
↗
35
9538005600
Nut, hexagon (663)
Loading…
↗
36
6H44123700
Joint, link
Loading…
↗
37
61A1444003
Silencer assembly, Intake
Loading…
↗
38
61A1444010
Silencer assembly, Intake
Loading…
↗
39
61A1441K01
Emblem
Loading…
↗
40
9321060ME8
O-ring(61a)
Loading…
↗
41
9044507254
Hose (l200)
Loading…
↗
42
6E51313200
Joint
Loading…
↗
43
9044507258
Hose (l390)
Loading…
↗
44
9044507M44
Hose (l390)
Loading…
↗
45
9015906M16
Screw, with washer(61a)
Loading…
↗
46
9020906M05
Washer (688)
Loading…
↗
