Yamaha Outboard Parts - INTAKE - LZ250DETO (2003) | Flood Marine

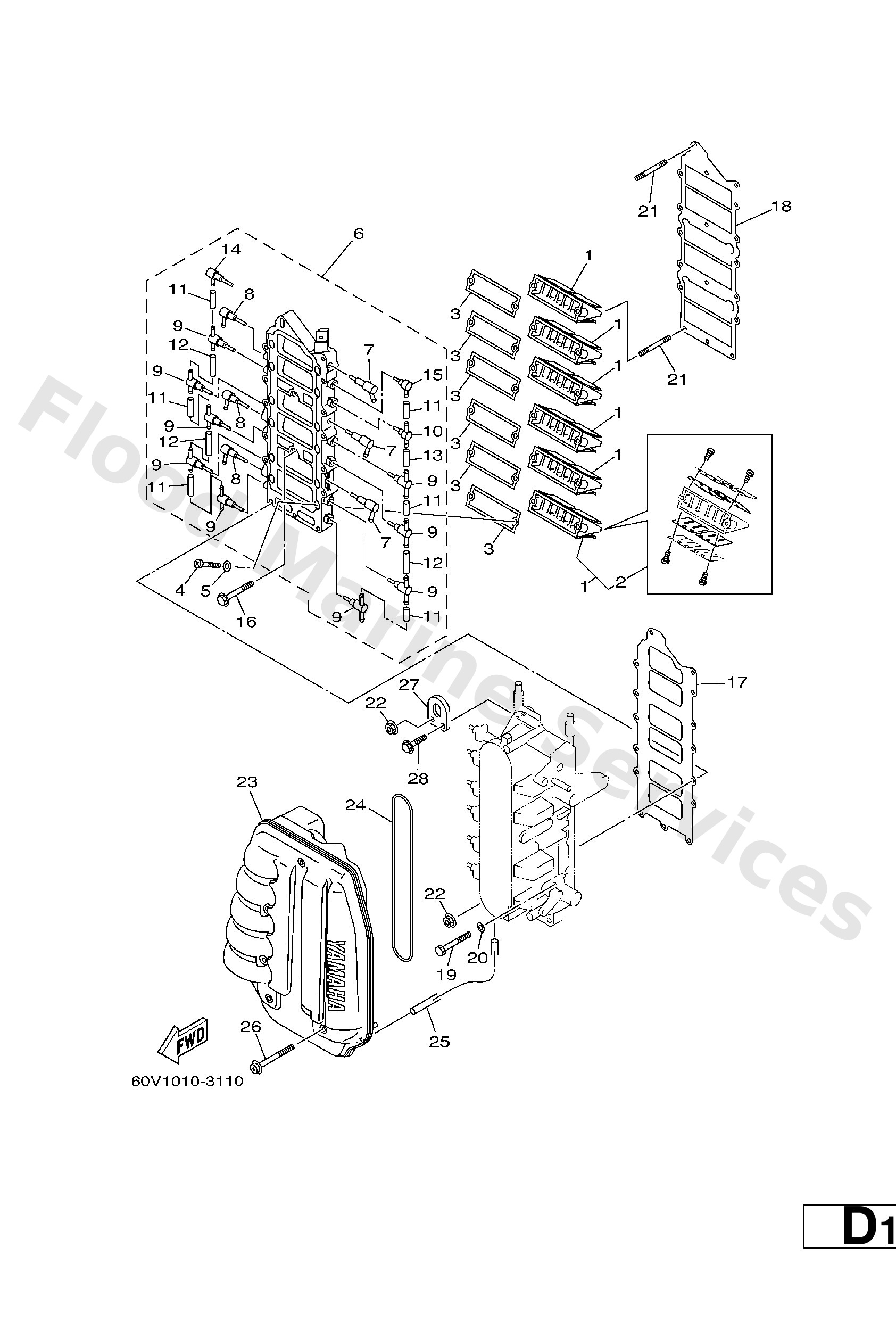

Diagram: INTAKE

Diagram

Parts List

Reference
Description
Price


1
60V−13610−00
Reed valve assembly
Loading…

↗
2
60V−W0004−00
Reed set
Loading…

↗
3
60V−13621−A0
Gasket, Valve Seat
Loading…

↗
4
97880−05016
Screw, pan head(6b0)
Loading…

↗
5
92990−05600
Washer, plain (646)
Loading…

↗
6
60V−13624−00−1S
Plate,Reed Valve
Loading…

↗
7
60V−13552−00
Nozzle
Loading…

↗
8
60V−13572−00
Nozzle
Loading…

↗
9
60V−11379−00
Valve, check
Loading…

↗
10
6F6−11370−01
Check valve assembly
Loading…

↗
11
90445−07M03
Hose (l200)
Loading…

↗
12
90445−07016
Hose (l60)
Loading…

↗
13
90445−07015
Hose (l65)
Loading…

↗
14
60V−11369−00
11 −
Loading…

↗
15
650−11370−01
Check valve assembly
Loading…

↗
16
90105−06028
Bolt, washer based
Loading…

↗
17
60V−13646−00
Gasket, manifold 2
Loading…

↗
18
60V−13645−00
Gasket, manifold 1
Loading…

↗
19
97013−06060
Bolt, hexagon
Loading…

↗
20
92903−06600
Washer, plain (646)
Loading…

↗
21
95670−06660
Bolt, stud
Loading…

↗
22
90179−06M24
Nut(6j8)
Loading…

↗
23
60V−14440−00
Silencer assembly, intake
Loading…

↗
24
60V−14476−00
Seal
Loading…

↗
25
90445−07M44
Hose (l390)
Loading…

↗
26
90159−06M16
Screw, with washer(61a)
Loading…

↗
27
68F−11119−00
Hanger, engine
Loading…

↗
28
90119−06MA2
Bolt, with washer
Loading…

↗
