LZ250DETO (2005)
INTAKE

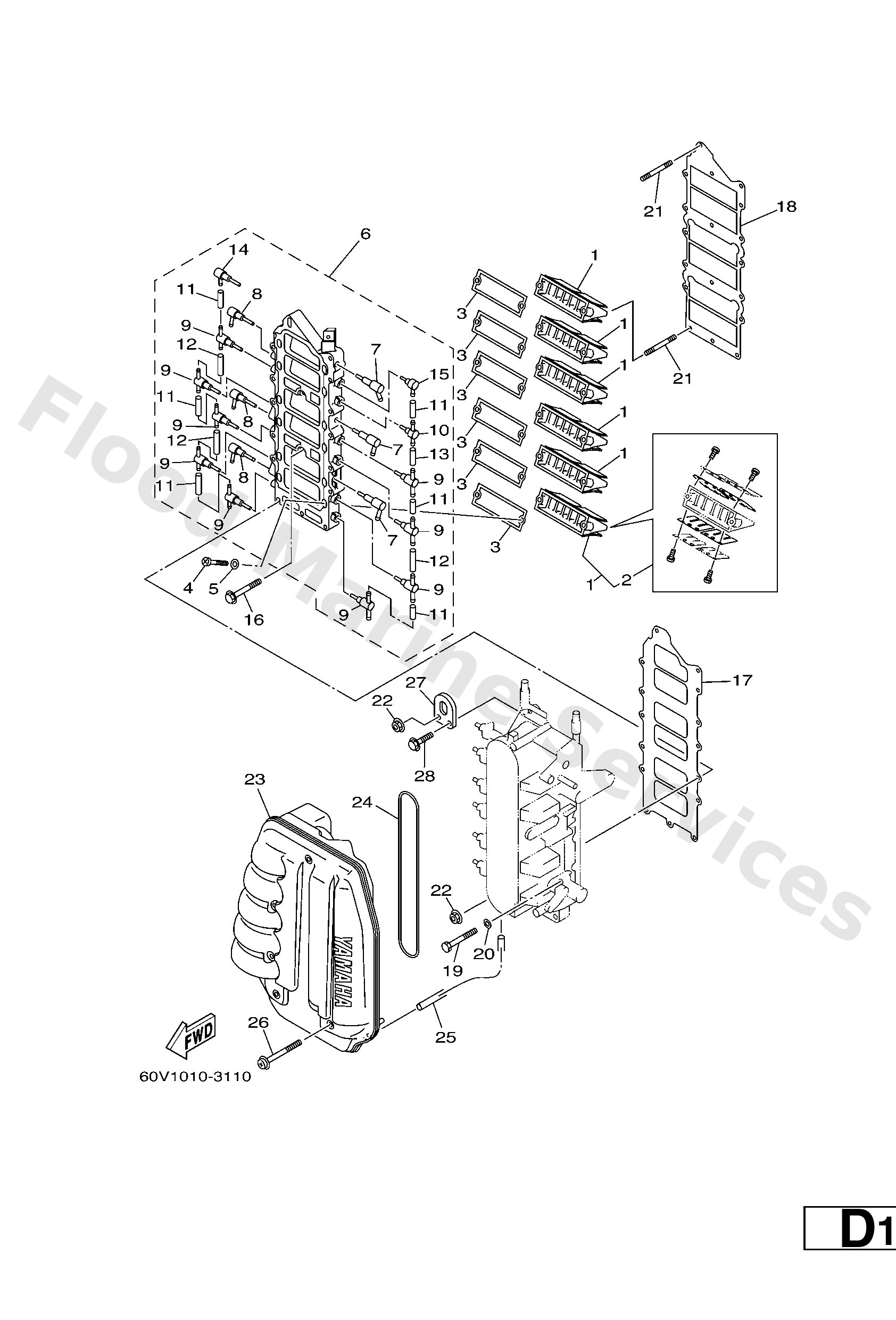

Diagram: INTAKE
Parts List
Reference
Description
Price
1
60V1361000
Reed valve assembly
Loading…
↗
2
60VW000400
Reed set
Loading…
↗
3
60V13621A0
Gasket, Valve Seat
Loading…
↗
4
9788005016
Screw, pan head(6b0)
Loading…
↗
5
9299005600
Washer, plain (646)
Loading…
↗
6
60V13624001S
Plate,Reed Valve
Loading…
↗
7
60V1355200
Nozzle
Loading…
↗
8
60V1357200
Nozzle
Loading…
↗
9
60V1137900
Valve, check
Loading…
↗
10
6F61137001
Check valve assembly
Loading…
↗
11
9044507M03
Hose (l200)
Loading…
↗
12
9044507016
Hose (l60)
Loading…
↗
13
9044507015
Hose (l65)
Loading…
↗
14
60V1136900
-
Loading…
↗
15
6501137001
Check valve assembly
Loading…
↗
16
9010506028
Bolt, washer based
Loading…
↗
17
60V1364600
Gasket, manifold 2
Loading…
↗
18
60V1364500
Gasket, manifold 1
Loading…
↗
19
9701306060
Bolt, hexagon
Loading…
↗
20
9290306600
Washer, plain (646)
Loading…
↗
21
9567006660
Bolt, stud
Loading…
↗
22
9017906M24
Nut(6j8)
Loading…
↗
23
60V1444000
Silencer assembly, intake
Loading…
↗
24
60V1447600
Seal
Loading…
↗
25
9044507M44
Hose (l390)
Loading…
↗
26
9015906M16
Screw, with washer(61a)
Loading…
↗
27
68F1111900
Hanger, engine
Loading…
↗
28
9011906MA2
Bolt, with washer
Loading…
↗
