Yamaha Outboard Parts - INTAKE - XF375NSA (2018) | Flood Marine

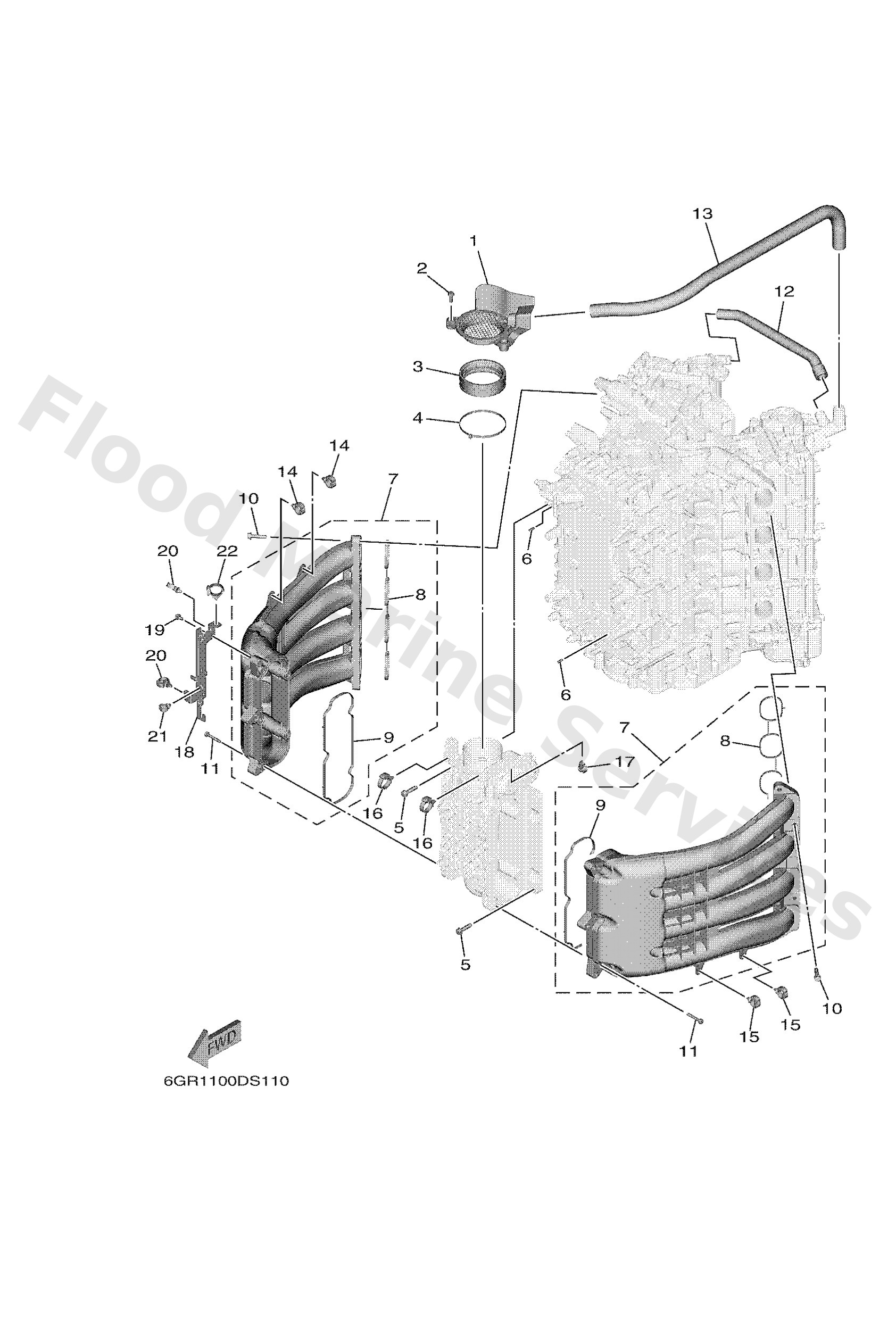

Diagram: INTAKE

Diagram

Parts List

Reference
Description
Price


1
6GR1444000
Silencer assembly, intake
Loading…

↗
2
9589506020
Bolt, flange(jk3)
Loading…

↗
3
6AW1441J00
Pipe, silencer
Loading…

↗
4
9046499004
Clamp
Loading…

↗
5
9011908022
Bolt, with washer
Loading…

↗
6
9169050014
Pin, spring (647)
Loading…

↗
7
6GR1364100
Manifold, intake 1
Loading…

↗
8
6GR1364500
Gasket, manifold 1
Loading…

↗
9
6GR1364600
Gasket, manifold 2
Loading…

↗
11
9011906MA6
Bolt, with washer
Loading…

↗
12
6GR1531A00
Hose, breather 1
Loading…

↗
13
6GR1531A10
Hose, breather 1
Loading…

↗
14
9046420181
Clamp(4ap)
Loading…

↗
16
9046412183
Clamp(jn2)
Loading…

↗
17
9046413249
Clamp
Loading…

↗
18
6GR8257G00
Clamp, cord
Loading…

↗
19
9589506012
Bolt, flange deep recess
Loading…

↗
