Z150QETO (2002)
INTAKE

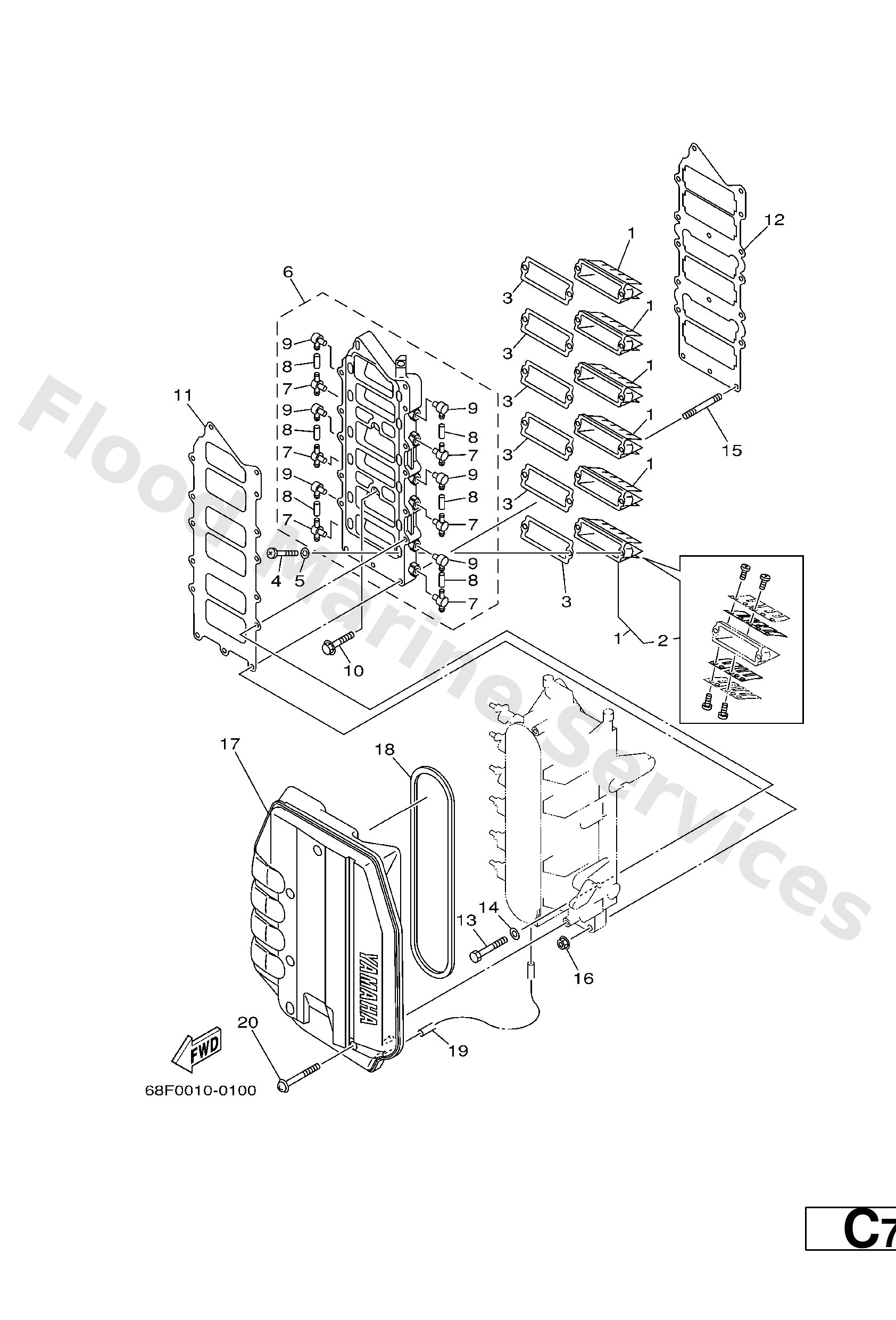

Diagram: INTAKE
Parts List
Reference
Description
Price
1
68H1361000
Reed valve assembly
Loading…
↗
2
65J--W0004--01
Reed set
Loading…
↗
3
61A--13621--A0
Gasket, valve seat
Loading…
↗
4
97880--05016
Screw, pan head(6b0)
Loading…
↗
5
92990--05600
Washer, plain (646)
Loading…
↗
6
68F13624001S
Plate,reed valve
Loading…
↗
7
6F6--11372--00
Nipple, hose
Loading…
↗
8
90445--07M03
Hose (l200)
Loading…
↗
9
650--11370--00
Check valve assembly
Loading…
↗
10
90105--06028
Bolt, washer based
Loading…
↗
11
65L--13646--00
Gasket, manifold 2
Loading…
↗
12
65L--13645--00
Gasket, manifold 1
Loading…
↗
13
97013--06060
Bolt, hexagon
Loading…
↗
14
92903--06600
Washer, plain (646)
Loading…
↗
15
9567006660
Bolt, stud
Loading…
↗
16
90179--06M24
Nut(6j8)
Loading…
↗
17
67H1444000
Silencer assembly, Intake
Loading…
↗
18
65L--14483--00
Gasket
Loading…
↗
19
90445--07M44
Hose (l390)
Loading…
↗
20
90159--06M16
Screw, with washer(61a)
Loading…
↗
