Yamaha Outboard Parts - INTAKE - Z175GETO (2003) | Flood Marine

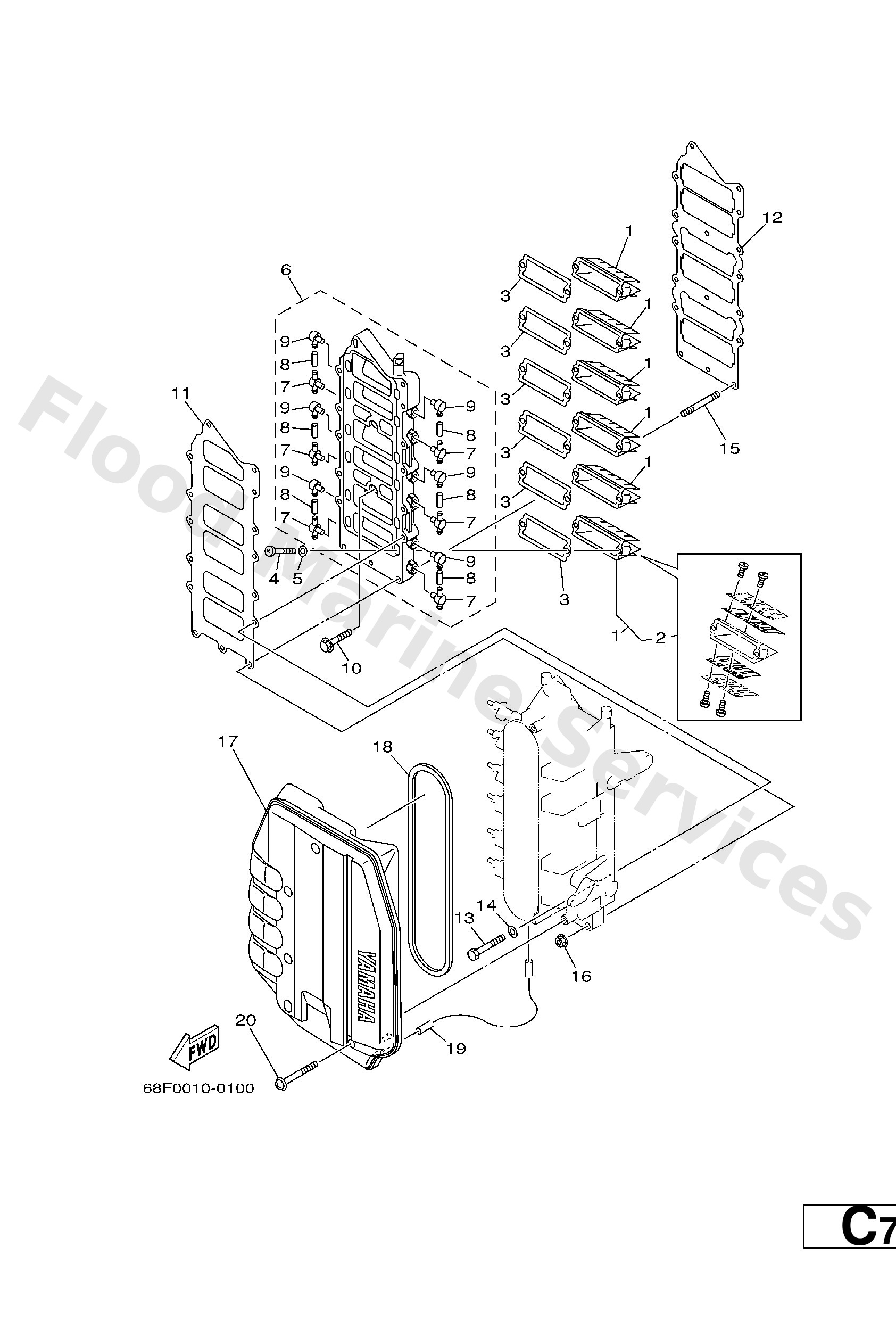

Diagram: INTAKE

Diagram

Parts List

Reference
Description
Price


1
68H−13610−00
Reed valve assembly
Loading…

↗
1
65L−13610−01
Reed valve assembly
Loading…

↗
2
65J−W0004−01
Reed set
Loading…

↗
3
61A−13621−A0
Gasket, valve seat
Loading…

↗
4
97880−05016
Screw, pan head(6b0)
Loading…

↗
5
92990−05600
Washer, plain (646)
Loading…

↗
6
68F−13624−00−1S
Plate,reed valve
Loading…

↗
7
6F6−11372−00
Nipple, hose
Loading…

↗
8
90445−07M03
Hose (l200)
Loading…

↗
9
650−11370−01
Check valve assembly
Loading…

↗
10
90105−06028
Bolt, washer based
Loading…

↗
11
65L−13646−00
Gasket, manifold 2
Loading…

↗
12
65L−13645−00
Gasket, manifold 1
Loading…

↗
13
97013−06060
Bolt, hexagon
Loading…

↗
14
92903−06600
Washer, plain (646)
Loading…

↗
15
95670−06660
Bolt, stud
Loading…

↗
16
90179−06M24
Nut(6j8)
Loading…

↗
17
67H−14440−00
Silencer assembly, Intake
Loading…

↗
18
65L−14483−00
Gasket
Loading…

↗
19
90445−07M44
Hose (l390)
Loading…

↗
20
90159−06M16
Screw, with washer(61a)
Loading…

↗
