Z200PETO (2004)
INTAKE

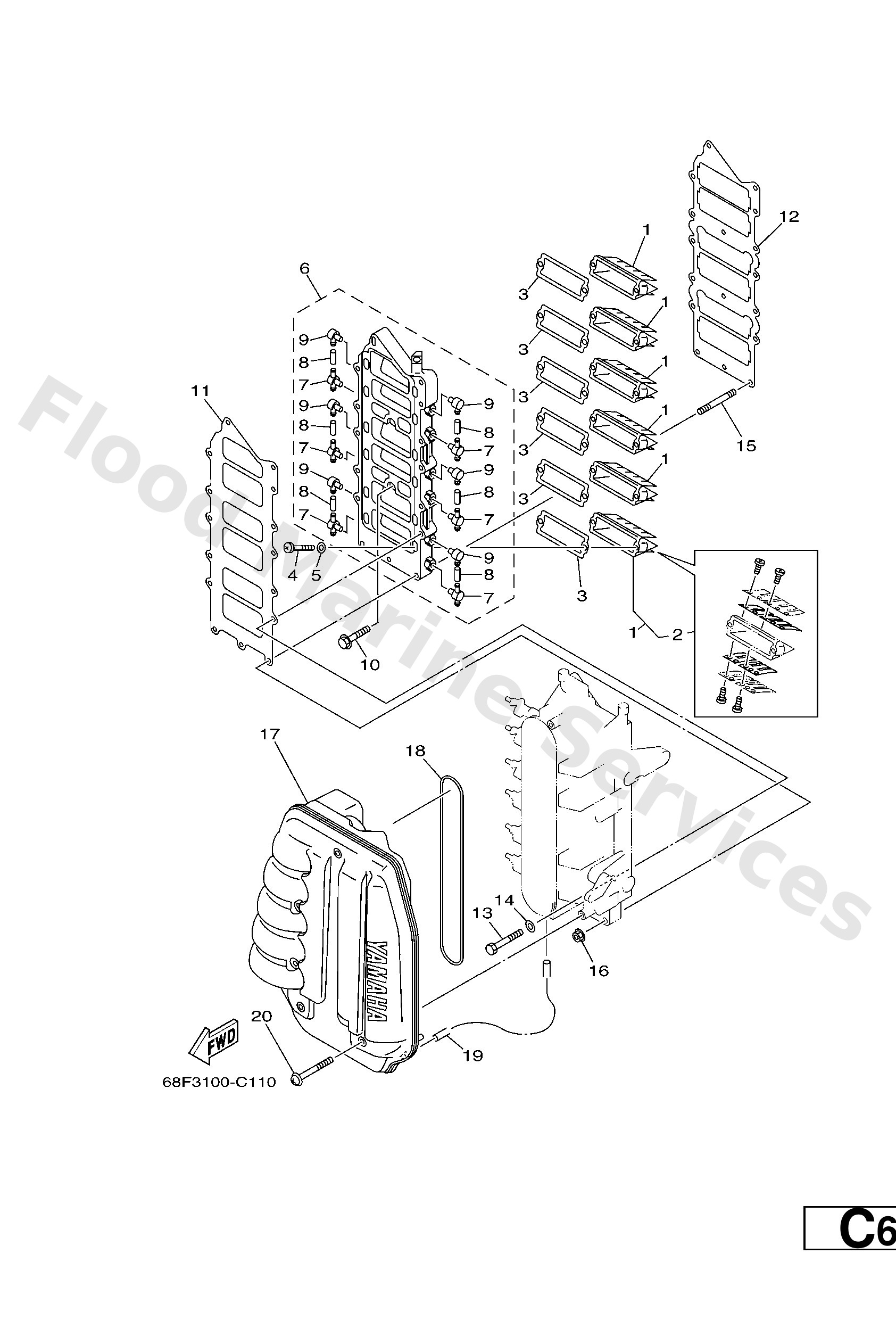

Diagram: INTAKE
Parts List
Reference
Description
Price
1
68H1361000
Reed valve assembly
Loading…
↗
2
65JW000401
Reed set
Loading…
↗
3
61A13621A0
Gasket, valve seat
Loading…
↗
4
9788005016
Screw, pan head(6b0)
Loading…
↗
5
9299005600
Washer, plain (646)
Loading…
↗
6
68F13624001S
Plate,reed valve
Loading…
↗
7
6F61137201
Nipple, hose
Loading…
↗
8
9044507M03
Hose (l200)
Loading…
↗
9
6501137001
Check valve assembly
Loading…
↗
10
9010506028
Bolt, washer based
Loading…
↗
11
65L1364600
Gasket, manifold 2
Loading…
↗
12
65L1364500
Gasket, manifold 1
Loading…
↗
13
9701306060
Bolt, hexagon
Loading…
↗
14
9290306600
Washer, plain (646)
Loading…
↗
15
9567006660
Bolt, stud
Loading…
↗
16
9017906M24
Nut(6j8)
Loading…
↗
17
60V1444000
Silencer assembly, intake
Loading…
↗
18
60V1447600
Seal
Loading…
↗
19
9044507M44
Hose (l390)
Loading…
↗
20
9015906M16
Screw, with washer(61a)
Loading…
↗
