F100B (2021)
INTAKE 1

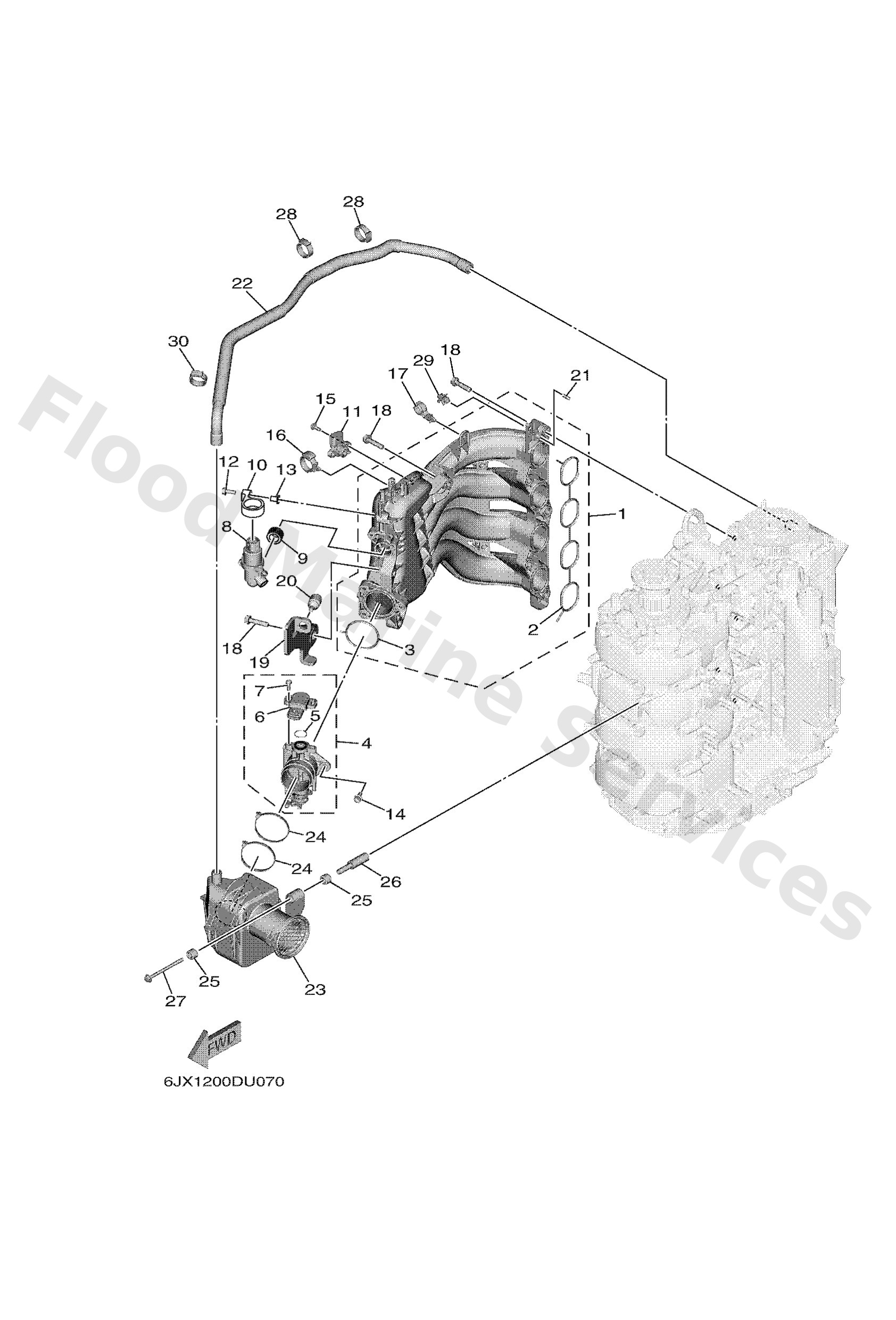

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
6FP1364100
Manifold, intake 1
Loading…
↗
2
6FP1364500
Gasket, manifold 1
Loading…
↗
3
6FP1364600
Gasket, manifold 2
Loading…
↗
4
6FP1375100
Body, throttle 1
Loading…
↗
5
9321017014
O-ring
Loading…
↗
6
8GL8588500
Throttle sensor assembly
Loading…
↗
7
9014905041
Screw
Loading…
↗
8
6C51371301
Valve, idle speed control
Loading…
↗
9
6FP1347600
Gasket
Loading…
↗
10
6FP1338100
Damper
Loading…
↗
11
68F8368810
Sensor assembly
Loading…
↗
12
9011906309
Bolt, with washer
Loading…
↗
13
9038706289
Collar
Loading…
↗
14
6C51449600
Bolt
Loading…
↗
15
6C58114610
Screw 2
Loading…
↗
16
9046412183
Clamp(jn2)
Loading…
↗
17
9046417006
Clamp
Loading…
↗
18
9011908020
Bolt, with washer
Loading…
↗
19
6FP1337100
Plate
Loading…
↗
20
6FP1443500
Grommet
Loading…
↗
21
9169050014
Pin, spring (647)
Loading…
↗
22
6FP1537300
Pipe, breather
Loading…
↗
23
6HV1444001
Silencer assembly, intake
Loading…
↗
23
6FP1444002
Silencer assembly, intake
Loading…
↗
24
9046465001
Clamp
Loading…
↗
25
9038608001
Bush
Loading…
↗
26
9038707013
Collar
Loading…
↗
27
9011906307
Bolt, with washer
Loading…
↗
28
9046426001
Clamp
Loading…
↗
29
9046409M47
Clamp(65j)
Loading…
↗
