F350AET (2013)
INTAKE 1

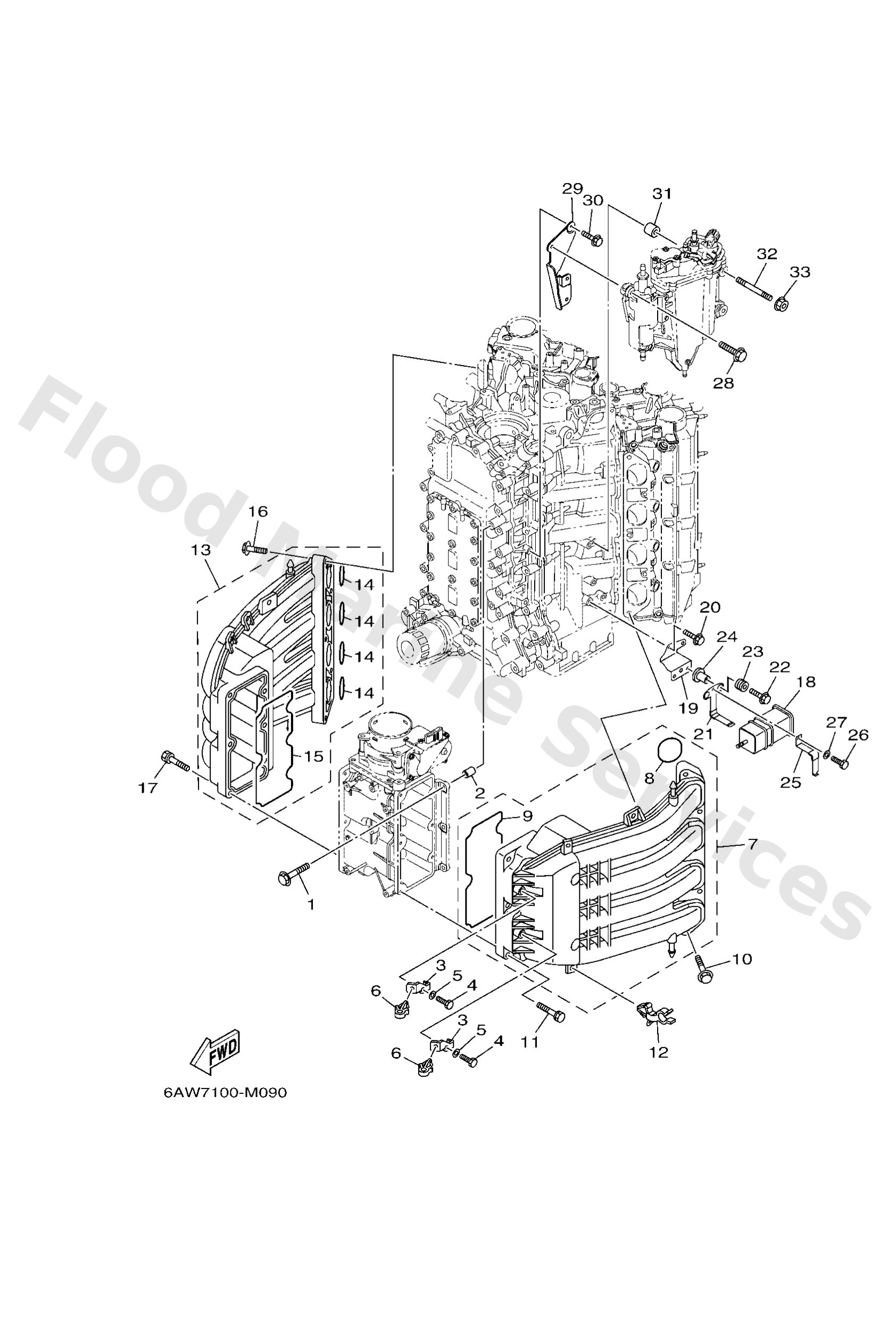

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
9587508035
Bolt, flange
Loading…
↗
2
9953010114
Pin, dowel(3vd)
Loading…
↗
3
6AW1378200
Stay
Loading…
↗
4
9709506012
Bolt(gh1)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
9046409023
Clamp
Loading…
↗
7
6AW1364110
Manifold 1
Loading…
↗
8
6AW1364500
Gasket, manifold 1
Loading…
↗
9
6AW1364600
Gasket, manifold 2
Loading…
↗
10
9011908022
Bolt, with washer
Loading…
↗
11
9011906MA6
Bolt, with washer
Loading…
↗
12
9046417006
Clamp
Loading…
↗
18
6P22417000
Canister assembly
Loading…
↗
19
6AW2134X10
Bracket, canister
Loading…
↗
20
9587506016
Bolt, flange deep recess
Loading…
↗
21
69J2134X00
Bracket, canister
Loading…
↗
22
9011906M17
Bolt, with washer
Loading…
↗
23
9048010M23
Grommet(6k7)
Loading…
↗
24
9038706M60
Collar (6h3)
Loading…
↗
25
69J2419A01
Holder
Loading…
↗
26
9709506016
Bolt, hexagon deep recess
Loading…
↗
28
9011906M24
Bolt, with washer
Loading…
↗
29
6AW2441900
Brkt., separator
Loading…
↗
31
9038706276
Collar
Loading…
↗
32
9011606046
Bolt, stud
Loading…
↗
33
9017906M28
Nut(63v)
Loading…
↗
