F40FED (2022)
INTAKE 1

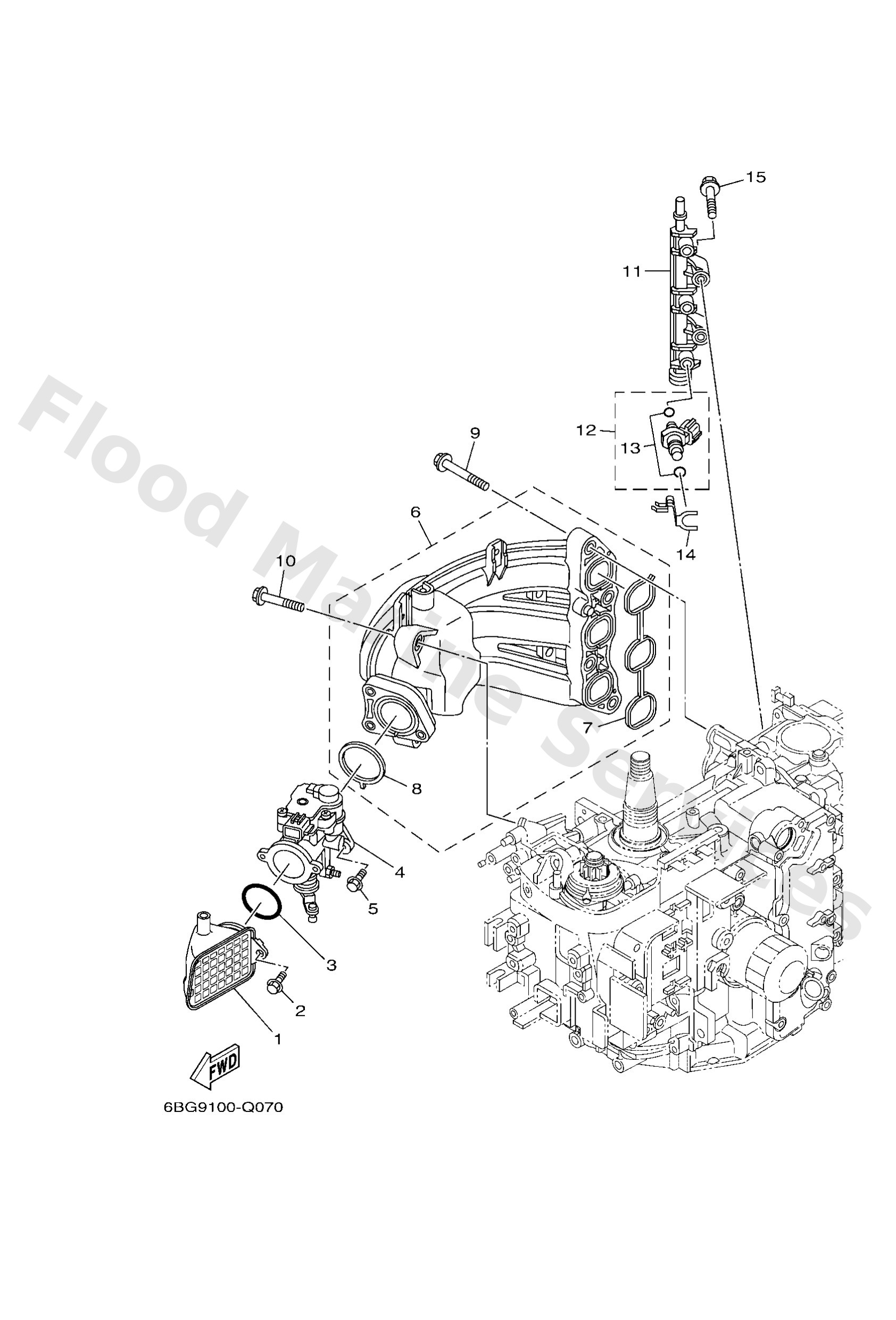

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
6BG14440A0
F40F
Silencer assembly, intake
Loading…
↗
1
6BT14440A0
F30B
Silencer assembly, intake
Loading…
↗
2
95D9506016
Bolt, flange deep recess
Loading…
↗
3
9321042159
O-ring (647)
Loading…
↗
4
6BG1375003
Throttle body assembly
Loading…
↗
6
6BG1364101
Manifold, intake 1
Loading…
↗
7
6BG1364500
Gasket, manifold 1
Loading…
↗
8
6BG1355700
Gasket
Loading…
↗
9
9011908190
Bolt, with washer
Loading…
↗
10
9011906297
Bolt, with washer
Loading…
↗
11
6BG1316100
Pipe, delivery 1
Loading…
↗
12
6C51376100
Injector assembly
Loading…
↗
13
6C51410B00
Packing kit
Loading…
↗
14
6BG1357700
Clip
Loading…
↗
15
95D9506040
Bolt, flange deep recess
Loading…
↗
