F50AED (2002)
INTAKE 1

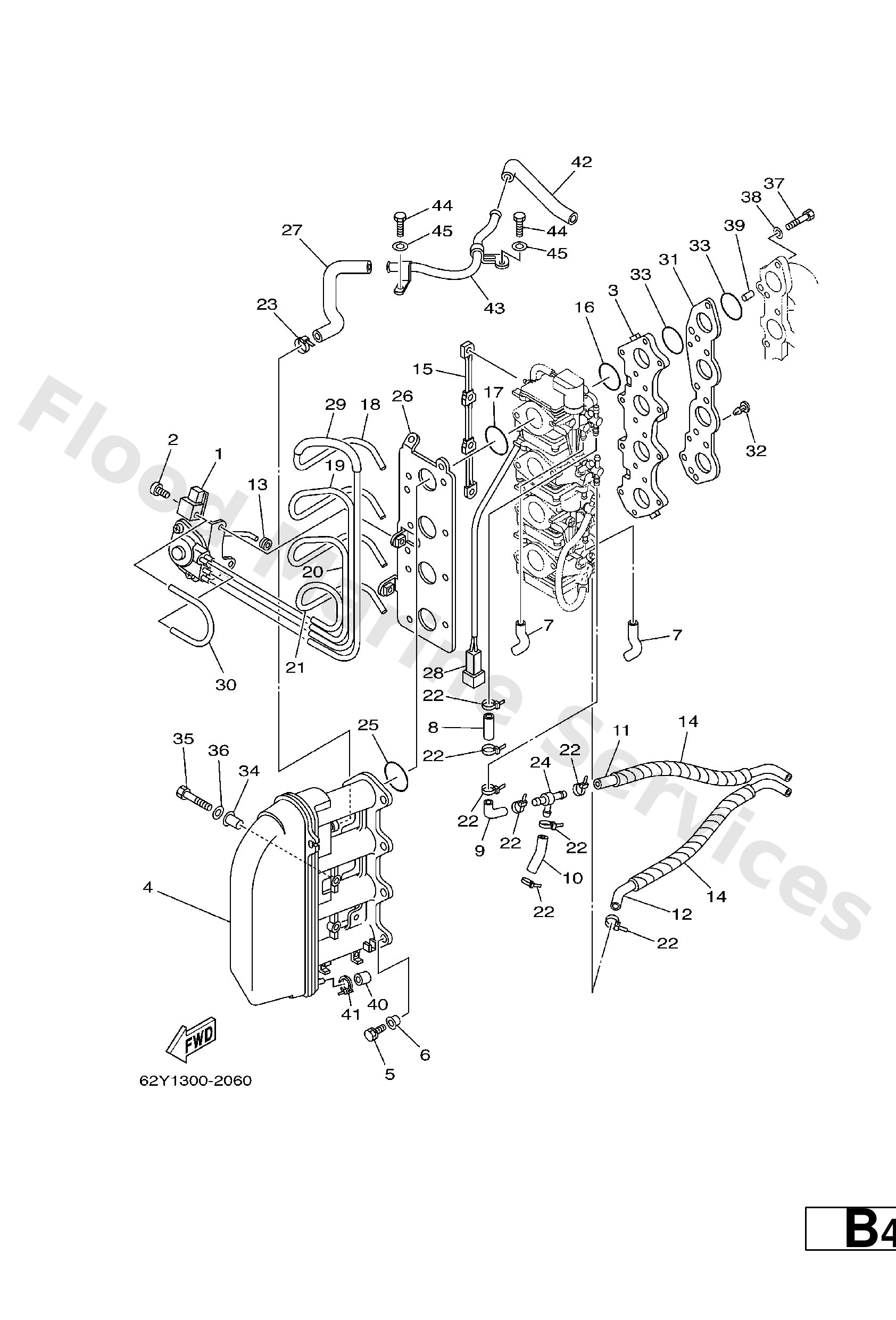

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
62Y1436930
Diaphragm assembly 2
Loading…
↗
2
6501432701
Screw
Loading…
↗
3
62Y1358630
Joint, carburetor 1
Loading…
↗
4
62Y1444000
Silencer assembly, intake
Loading…
↗
5
9759506590
Bolt(62y)
Loading…
↗
6
9038706M70
Collar (6h5)
Loading…
↗
7
62Y2431200
Pipe, fuel 1
Loading…
↗
8
62Y2431330
Pipe 3
Loading…
↗
9
62Y2431340
Pipe 3
Loading…
↗
10
62Y2431350
Pipe 3
Loading…
↗
11
62Y2431361
Pipe 3
Loading…
↗
12
62Y2431370
Pipe 3
Loading…
↗
13
62Y4126230
Joint, choke lever
Loading…
↗
14
62Y2431380
Pipe 3
Loading…
↗
15
64J1458500
Rod, choke
Loading…
↗
16
9321030MH4
O-ring(62y)
Loading…
↗
17
9321035M86
O-ring(6l2)
Loading…
↗
18
64J1434901
Pipe
Loading…
↗
19
64J1434911
Pipe
Loading…
↗
20
64J1434921
Pipe
Loading…
↗
21
64J1434931
Pipe
Loading…
↗
22
9046511M10
Clamp
Loading…
↗
23
9046513M36
Clamp(6h4)
Loading…
↗
24
62Y2437800
Pipe, joint 4
Loading…
↗
25
9321038MH3
O-ring(62y)
Loading…
↗
26
62Y1429130
Bracket 1
Loading…
↗
27
62Y1532B00
Pipe, breather
Loading…
↗
28
62Y8250900
Wire, sub lead
Loading…
↗
29
64J1434940
Pipe
Loading…
↗
30
64J1434950
Pipe
Loading…
↗
31
62Y1427100
Insulator
Loading…
↗
32
9033804M17
Plug(62y)
Loading…
↗
34
9038706M15
Collar(6g8)
Loading…
↗
35
9709506030
Bolt(jf7)
Loading…
↗
36
9299506600
Washer, plain (646)
Loading…
↗
37
9709506025
Bolt
Loading…
↗
39
9360816M16
Pin, dowel(6t4)
Loading…
↗
40
62Y1344800
Cap
Loading…
↗
42
62Y1531A00
Hose, breather 1
Loading…
↗
43
62Y1537310
Pipe, breather
Loading…
↗
44
9709506016
Bolt, hexagon deep recess
Loading…
↗
