F70AET (2011)
INTAKE 1

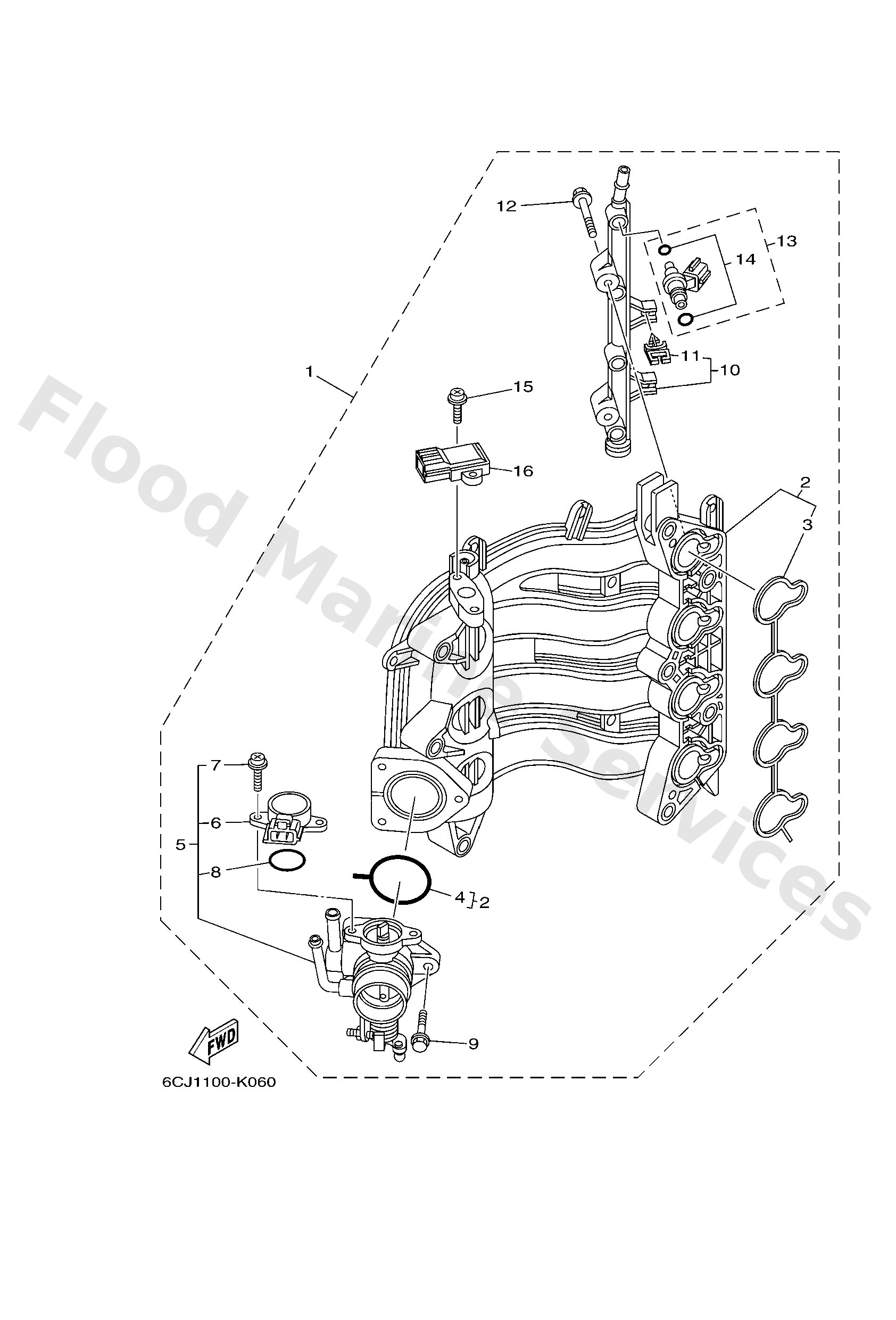

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
6CJ1420000
Intake assembly
Loading…
↗
2
6CJ1364100
Manifold 1
Loading…
↗
3
6C51364500
Gasket, manifold 1
Loading…
↗
4
6C51355700
Gasket
Loading…
↗
5
6CJ1375000
Throttle body assembly
Loading…
↗
6
6C58588500
Throttle sensor assembly
Loading…
↗
7
6C58114500
Screw 1
Loading…
↗
8
6C58182L00
O-ring 1
Loading…
↗
9
6C51449600
Bolt
Loading…
↗
10
6C51316100
Pipe, delivery 1
Loading…
↗
11
9046407M56
Clamp
Loading…
↗
12
6C51444600
Bolt
Loading…
↗
13
6C51376100
Injector assembly
Loading…
↗
14
6C51410B00
Packing kit
Loading…
↗
15
6C58114600
Screw 2
Loading…
↗
16
68F8368800
Sensor assembly
Loading…
↗
