FL115AET (2003)
INTAKE 1

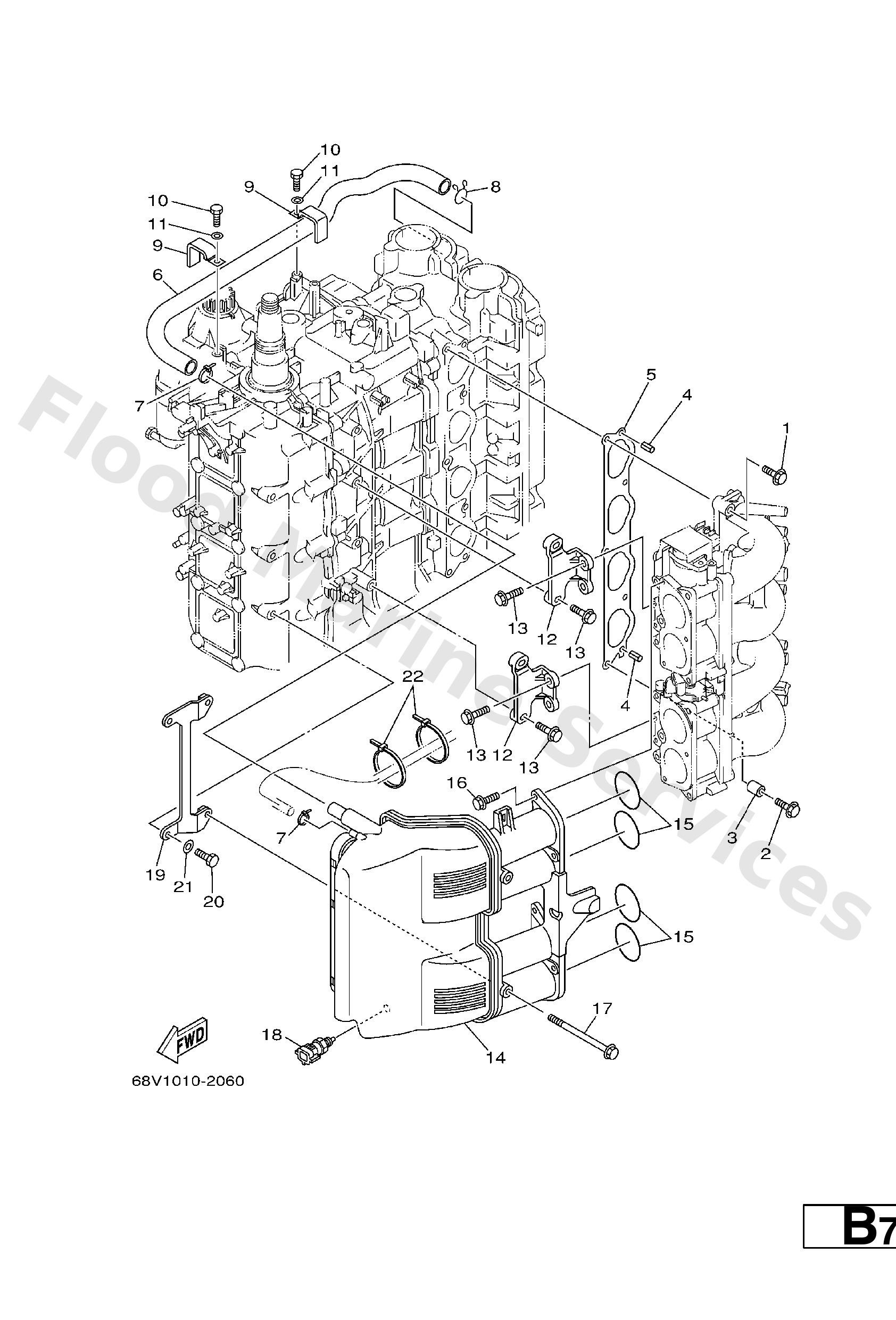

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
97575−08540
Bolt, hexagon w/w deep recess
Loading…
↗
2
90119−08M68
Bolt, with washer
Loading…
↗
3
90387−08M32
Collar
Loading…
↗
4
91690−50014
Pin, spring (647)
Loading…
↗
5
68V−13645−00
Gasket, manifold 1
Loading…
↗
6
67F−15373−00
Pipe, breather
Loading…
↗
7
90465−11M10
Clamp
Loading…
↗
8
90467−20M15
Clip
Loading…
↗
9
90465−12M03
Clamp, cord (688)
Loading…
↗
10
97095−06012
Bolt(gh1)
Loading…
↗
11
92995−06600
Washer, plain (646)
Loading…
↗
12
68V−14291−00−94
Bracket 1
Loading…
↗
13
90119−06M49
Bolt, with washer
Loading…
↗
14
68V−14440−00
Silencer assembly, Intake
Loading…
↗
15
93210−48MJ9
O-ring
Loading…
↗
16
90119−06M82
Bolt, with washer
Loading…
↗
17
90119−06ME1
Bolt, with washer
Loading…
↗
18
65L−85886−00
Thermosensor
Loading…
↗
19
68V−14292−00
Bracket 2
Loading…
↗
20
97095−08020
Bolt, hexagon
Loading…
↗
21
92995−08600
Washer, plain (663)
Loading…
↗
22
90465−13M18
Clamp
Loading…
↗
