FL115AET (2009)
INTAKE 1

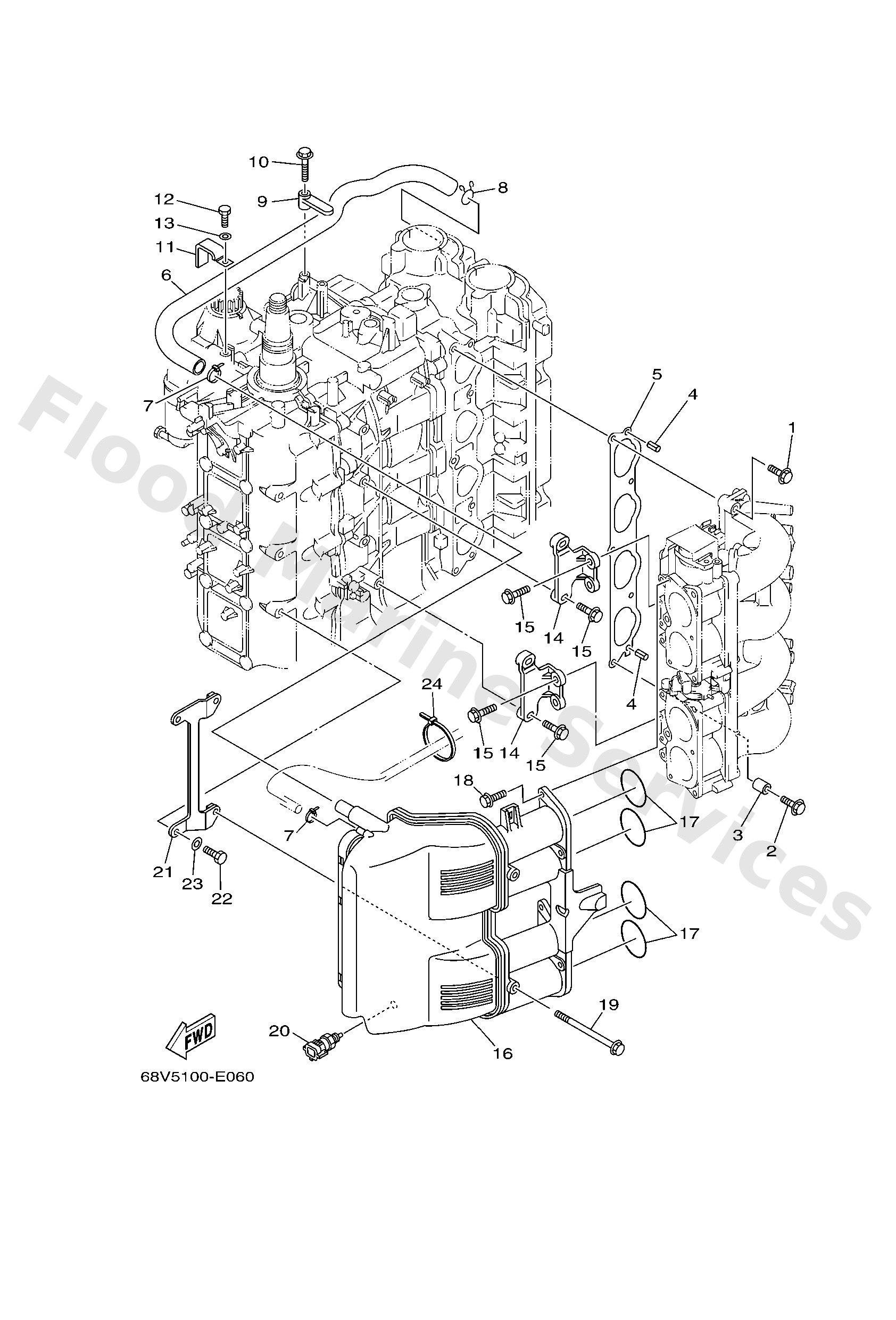

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
2
9011908M68
Bolt, with washer
Loading…
↗
3
9038708M32
Collar
Loading…
↗
4
9169050014
Pin, spring (647)
Loading…
↗
5
68V1364500
Gasket, manifold 1
Loading…
↗
6
67F1537300
Pipe, breather
Loading…
↗
7
9046511M10
Clamp
Loading…
↗
8
9046720M15
Clip
Loading…
↗
9
6D88254400
Clamp
Loading…
↗
10
9589506025
Bolt, flange deep recess
Loading…
↗
11
9046512M03
Clamp, cord (688)
Loading…
↗
12
9709506012
Bolt(gh1)
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
68V142910094
Bracket 1
Loading…
↗
15
9011906M49
Bolt, with washer
Loading…
↗
16
68V1444000
Silencer assembly, Intake
Loading…
↗
17
9321048MJ9
O-ring
Loading…
↗
18
9011906M82
Bolt, with washer
Loading…
↗
19
9011906ME1
Bolt, with washer
Loading…
↗
20
65L8588600
Thermosensor
Loading…
↗
21
68V1429200
Bracket 2
Loading…
↗
22
9709508020
Bolt, hexagon
Loading…
↗
23
9299508600
Washer, plain (663)
Loading…
↗
24
9046513M18
Clamp
Loading…
↗
