FL115AET (2015)
INTAKE 1

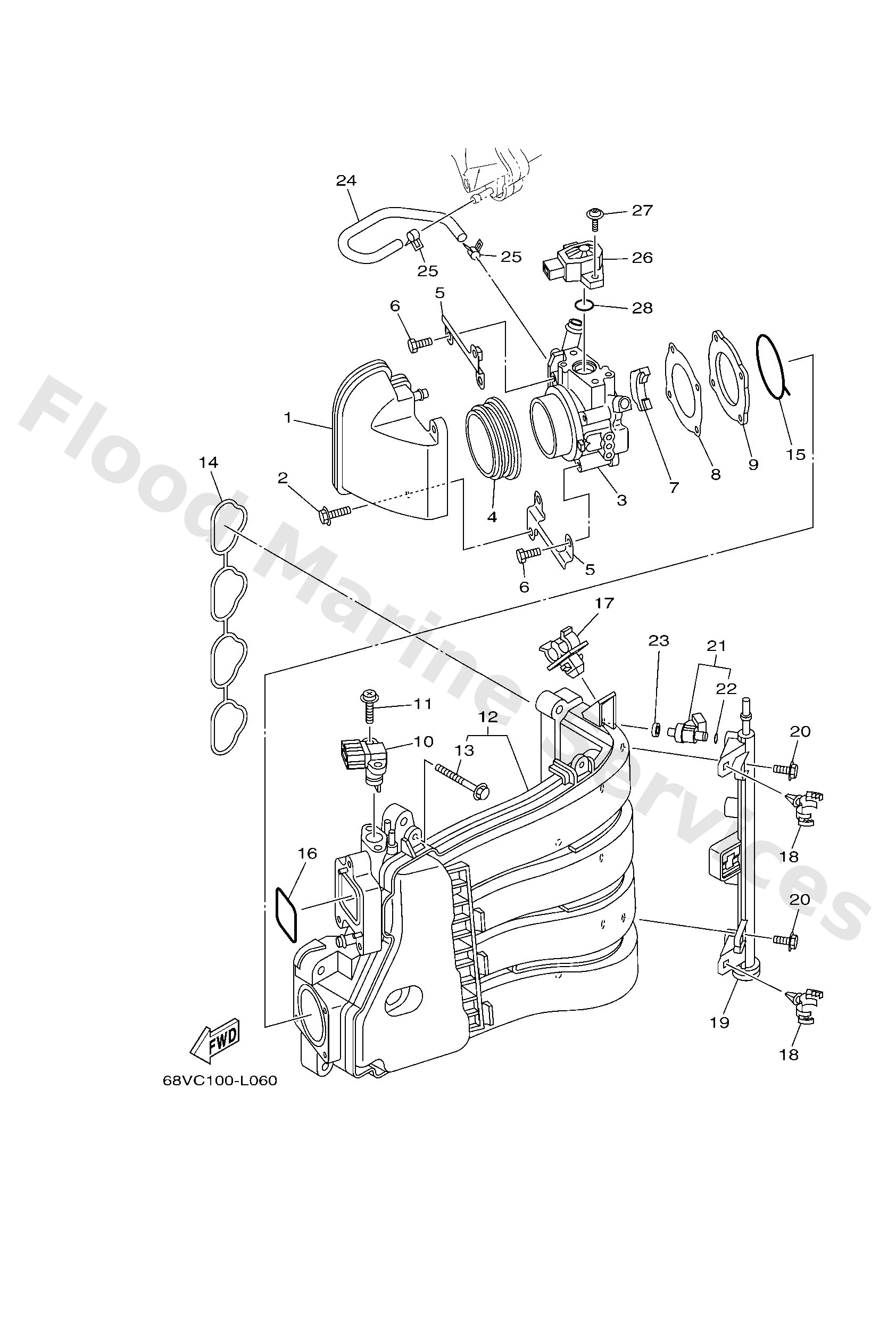

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
68V1444010
Silencer assembly, intake
Loading…
↗
2
9589506020
Bolt, flange(jk3)
Loading…
↗
3
68V1375120
Body, throttle 1
Loading…
↗
4
68V1441J10
Pipe, silencer
Loading…
↗
5
68V1389800
Holder
Loading…
↗
6
68V1449610
Bolt
Loading…
↗
7
68V1427100
Insulator
Loading…
↗
8
68V1355600
Gasket, manifold
Loading…
↗
9
68V1363500
Joint, intake 1
Loading…
↗
10
68F8368810
Sensor assembly
Loading…
↗
11
68V8114700
Screw 3
Loading…
↗
12
68VW136410
Manifold, Intake 1
Loading…
↗
13
9011906266
Bolt, with washer
Loading…
↗
14
68V1364510
Gasket, manifold 1
Loading…
↗
15
68V1364600
Gasket, manifold 2
Loading…
↗
16
68V1364700
Gasket, manifold 3
Loading…
↗
17
9046411012
Clamp
Loading…
↗
18
9046420181
Clamp(4ap)
Loading…
↗
19
68V1316110
Pipe, delivery 1
Loading…
↗
20
6P21444600
Bolt
Loading…
↗
21
68V1376110
Injector
Loading…
↗
22
68V1416A00
O-ring
Loading…
↗
23
68V1376610
Rubber, injector
Loading…
↗
24
68V1358400
Pipe, intake manifold
Loading…
↗
25
68V1357710
Clip
Loading…
↗
26
68V8588510
Throttle sensor assembly
Loading…
↗
27
68V8114501
Screw 1
Loading…
↗
28
68V8182L00
O-ring 1
Loading…
↗
