FL115BET (2016)
INTAKE 1

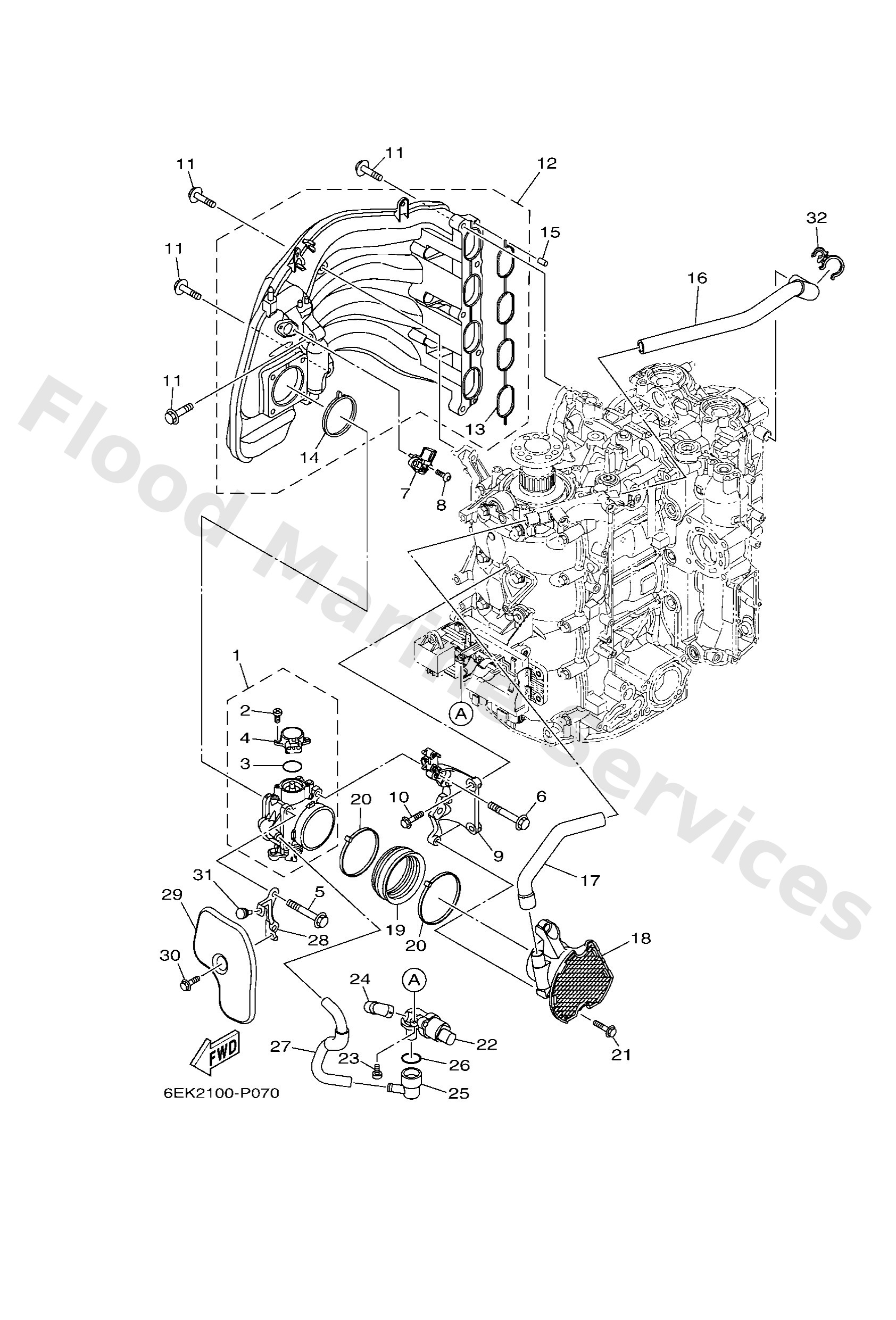

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
6EK1375100
Body, throttle 1
Loading…
↗
2
6C58114500
Screw 1
Loading…
↗
3
6C58182L00
O-ring 1
Loading…
↗
4
6C58588500
Throttle sensor assembly
Loading…
↗
5
9587508060
Bolt, flange
Loading…
↗
6
9010508186
Bolt, flange
Loading…
↗
7
68F8368810
Sensor assembly
Loading…
↗
8
9011105037
Bolt,hex. socket button
Loading…
↗
9
6EK1315202
Stay 2
Loading…
↗
10
9587506025
Bolt, flange deep recess
Loading…
↗
11
9011908022
Bolt, with washer
Loading…
↗
12
6EK1364100
Manifold, intake 1
Loading…
↗
13
6EK1364500
Gasket, manifold 1
Loading…
↗
14
6EK1364600
Gasket, manifold 2
Loading…
↗
15
9169050014
Pin, spring (647)
Loading…
↗
16
6EK1537300
Pipe, breather
Loading…
↗
17
6EK1539300
Pipe, breather 2
Loading…
↗
18
6DA1444000
Silencer assembly, intake
Loading…
↗
19
6P21441J00
Pipe, silencer
Loading…
↗
20
9046499004
Clamp
Loading…
↗
22
6C51371300
Valve, idle speed control
Loading…
↗
23
9798005214
Screw, with washer
Loading…
↗
24
68V1389700
Pipe, air
Loading…
↗
25
6CJ1137200
Nipple, hose
Loading…
↗
26
9321033003
O-ring
Loading…
↗
27
6EK1354300
Hose, air
Loading…
↗
28
6EK1384300
Plate 1
Loading…
↗
29
6EK1388100
Cover 1
Loading…
↗
30
9589506016
Bolt, flange deep recess
Loading…
↗
31
9048006M19
Grommet (6e3)
Loading…
↗
32
9046421002
Clamp
Loading…
↗
