FL150DET (2019)
INTAKE 1

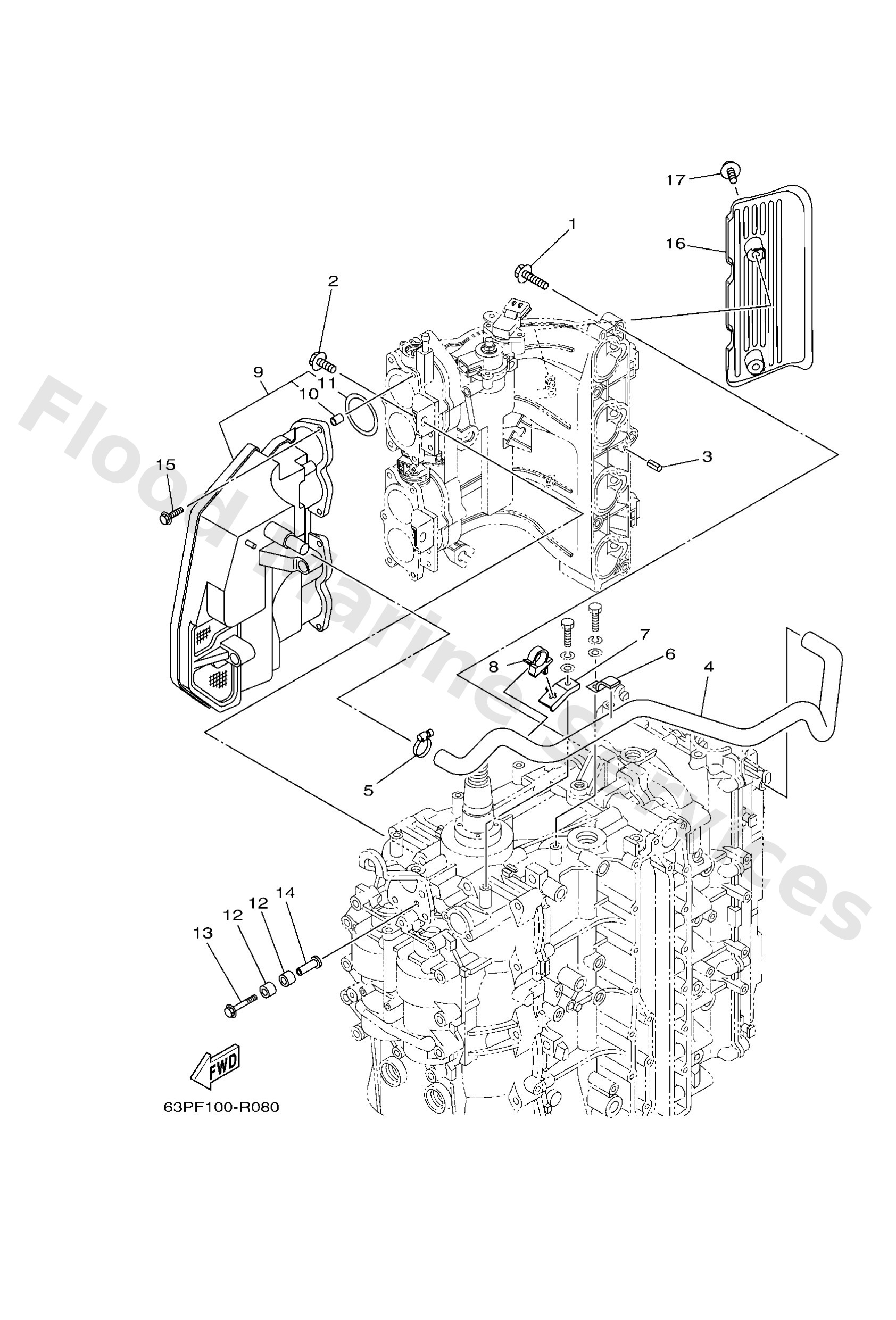

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
97E7508540
Bolt, hexagon w/w deep recess
Loading…
↗
2
9751308520
Bolt, with washer(61b)
Loading…
↗
3
9169050014
Pin, spring (647)
Loading…
↗
4
63P1537300
Pipe, breather
Loading…
↗
5
9045022M14
Hose clamp assembly(64x)
Loading…
↗
6
9046210023
Clamp
Loading…
↗
7
63P1537800
Holder
Loading…
↗
8
9046420006
Clamp
Loading…
↗
9
63P1444000
Silencer assembly, intake
Loading…
↗
10
63P1444900
Collar
Loading…
↗
11
63P1445700
Seal
Loading…
↗
12
9038608001
Bush
Loading…
↗
13
9011906076
Bolt, with washer
Loading…
↗
14
9038706280
Collar
Loading…
↗
15
9011906M82
Bolt, with washer
Loading…
↗
16
63P1356400
Cover, manifold
Loading…
↗
17
95D9506016
Bolt, flange deep recess
Loading…
↗
