FL200CET (2010)
INTAKE 1

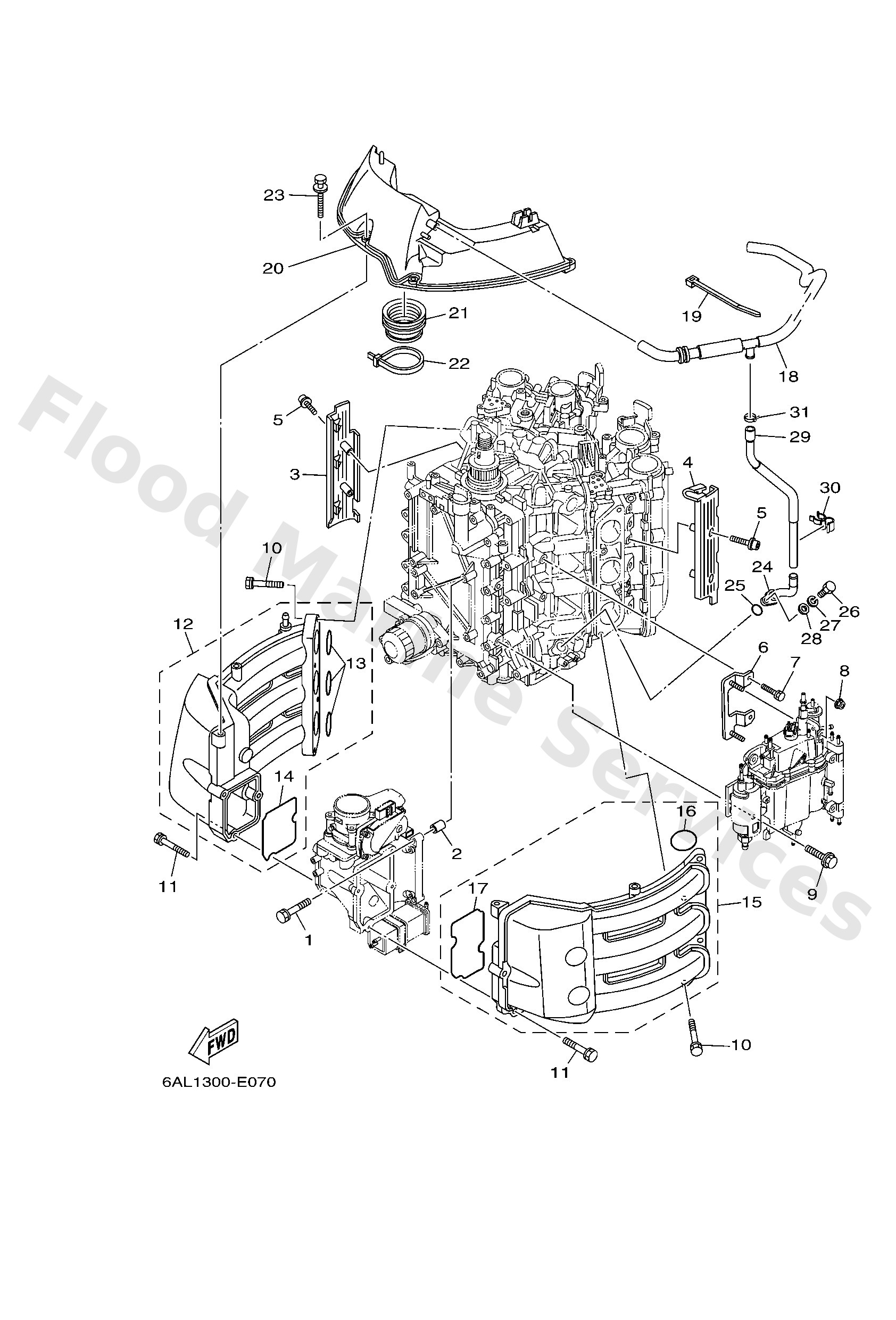

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
2
9953010114
Pin, dowel(3vd)
Loading…
↗
3
6P21356400
Cover, manifold
Loading…
↗
4
6P21359400
Cover, manifold 2
Loading…
↗
5
9011006038
Bolt, hexagon socket head
Loading…
↗
6
6P22442200
-
Loading…
↗
7
9757506516
Bolt, hexagon w/w deep recess
Loading…
↗
8
9017906M28
Nut(63v)
Loading…
↗
9
9011906M24
Bolt, with washer
Loading…
↗
11
9011906MA6
Bolt, with washer
Loading…
↗
12
6P21364100
Manifold 1
Loading…
↗
13
6P21364500
Gasket, manifold 1
Loading…
↗
14
6P21364600
Gasket, manifold 2
Loading…
↗
15
6P21364200
Manifold 2
Loading…
↗
17
6P21364700
Gasket, manifold 3
Loading…
↗
18
6P21537301
Pipe, breather
Loading…
↗
19
9046513M18
Clamp
Loading…
↗
20
6P21444000
Silencer assembly, intake
Loading…
↗
21
6P21441J00
Pipe, silencer
Loading…
↗
22
9046499004
Clamp
Loading…
↗
23
9011906M35
Bolt, with washer
Loading…
↗
24
6P21137200
Nipple, hose
Loading…
↗
25
9321019MJ3
O-ring
Loading…
↗
26
9709506020
Bolt(7u8)
Loading…
↗
27
9299506100
Washer(6a1)
Loading…
↗
28
9299506600
Washer, plain (646)
Loading…
↗
29
6P21137700
Hose
Loading…
↗
30
9046420011
Clamp
Loading…
↗
31
9046511M10
Clamp
Loading…
↗
