Yamaha Outboard Parts - INTAKE 1 - FL250AET (2009) | Flood Marine

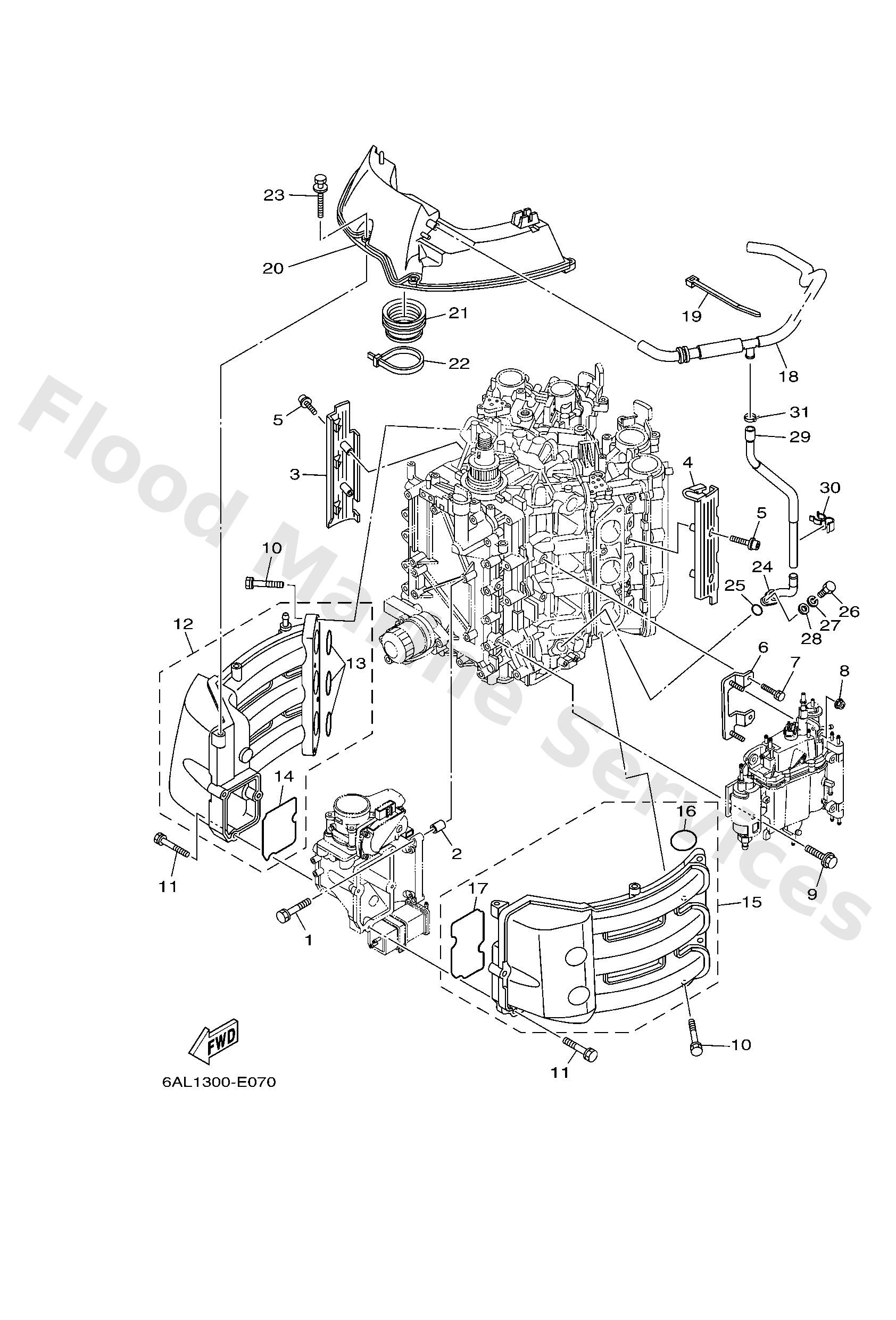

Diagram: INTAKE 1

Diagram

Parts List

Reference
Description
Price


1
9757508540
Bolt, With Washer
Loading…

↗
2
9953010114
Pin, Dowel
Loading…

↗
3
6P21356400
Cover, manifold
Loading…

↗
4
6P21359400
Cover, manifold 2
Loading…

↗
5
9011006038
16
Loading…

↗
6
6P22442200
-
Loading…

↗
7
9757506516
8
Loading…

↗
8
9017906M28
Nut
Loading…

↗
9
9011906M24
Bolt, With Washer
Loading…

↗
11
9011906MA6
Bolt, With Washer
Loading…

↗
12
6P21364100
Manifold 1
Loading…

↗
13
6P21364500
Gasket, manifold 1
Loading…

↗
14
6P21364600
Gasket, manifold 2
Loading…

↗
15
6P21364200
Manifold 2
Loading…

↗
17
6P21364700
Gasket, manifold 3
Loading…

↗
18
6P21537301
Pipe, breather
Loading…

↗
19
9046513M18
Clamp
Loading…

↗
20
6P21444000
Silencer assembly, intake
Loading…

↗
21
6P21441J00
Pipe, Silencer
Loading…

↗
22
9046499004
Clamp
Loading…

↗
23
9011906M35
Bolt, With Washer
Loading…

↗
24
6P21137200
Nipple, hose
Loading…

↗
25
9321019MJ3
O-Ring
Loading…

↗
26
9709506020
Bolt
Loading…

↗
27
9299506100
Washer, Spring
Loading…

↗
28
9299506600
10
Loading…

↗
29
6P21137700
Hose
Loading…

↗
30
9046420011
Clamp
Loading…

↗
31
9046511M10
Clamp
Loading…

↗
