FL350AET (2008)
INTAKE 1

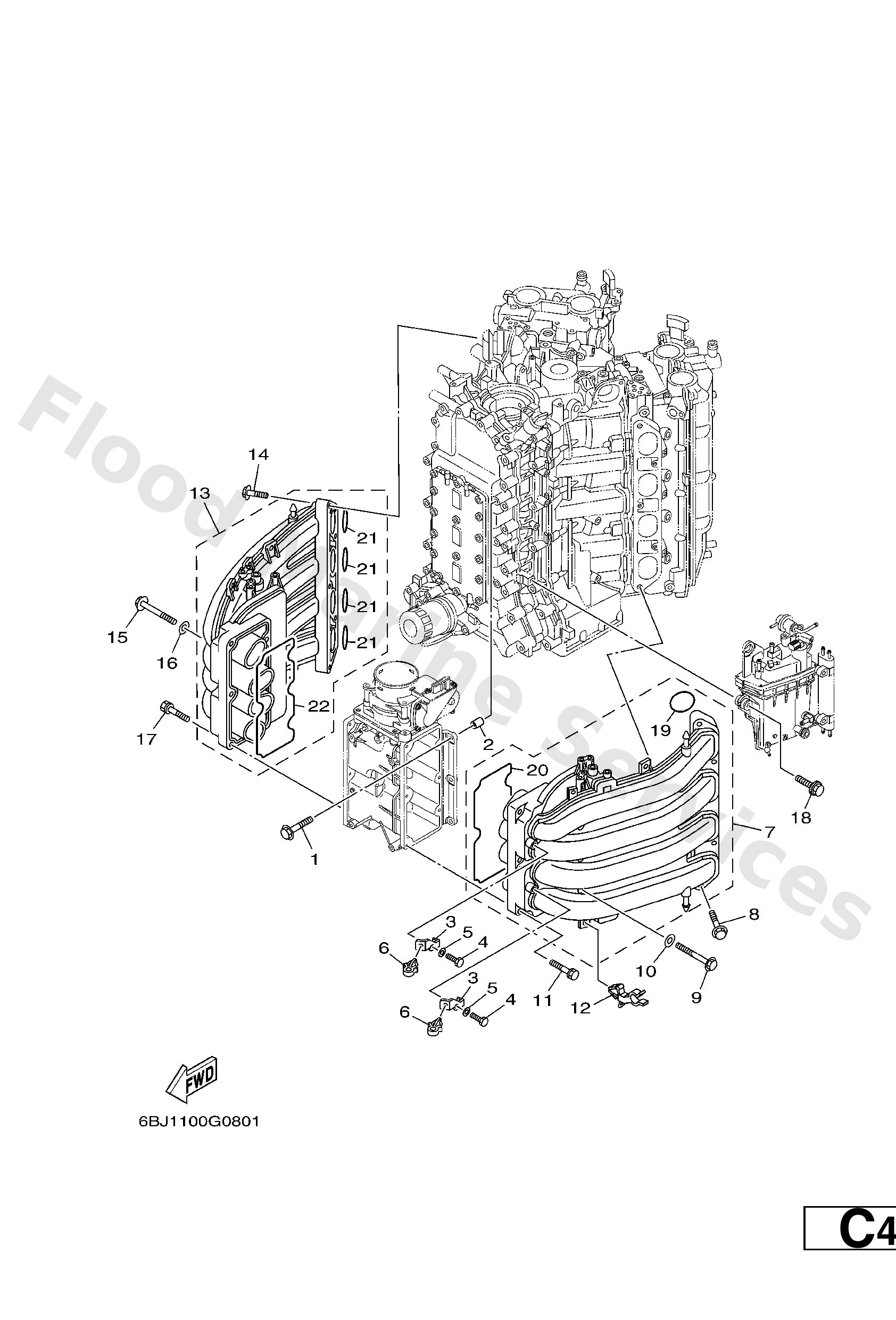

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
9587508035
Bolt, flange
Loading…
↗
2
9953010114
Pin, dowel(3vd)
Loading…
↗
3
6AW1378200
Stay
Loading…
↗
4
9709506012
Bolt(gh1)
Loading…
↗
5
9299506600
Washer, plain (646)
Loading…
↗
6
9046409008
Clamp
Loading…
↗
7
6AW1364100
Manifold 1
Loading…
↗
8
9757508540
Bolt, hexagon w/w deep recess
Loading…
↗
9
9010506149
Bolt, flange
Loading…
↗
10
9299506200
Ybs66-6 washer, plain
Loading…
↗
11
9011906MA6
Bolt, with washer
Loading…
↗
12
9046417006
Clamp
Loading…
↗
18
9011906M24
Bolt, with washer
Loading…
↗
19
6AW1364500
Gasket, manifold 1
Loading…
↗
20
6AW1364600
Gasket, manifold 2
Loading…
↗
