Yamaha Outboard Parts - INTAKE 1 - FT50GET (2008) | Flood Marine

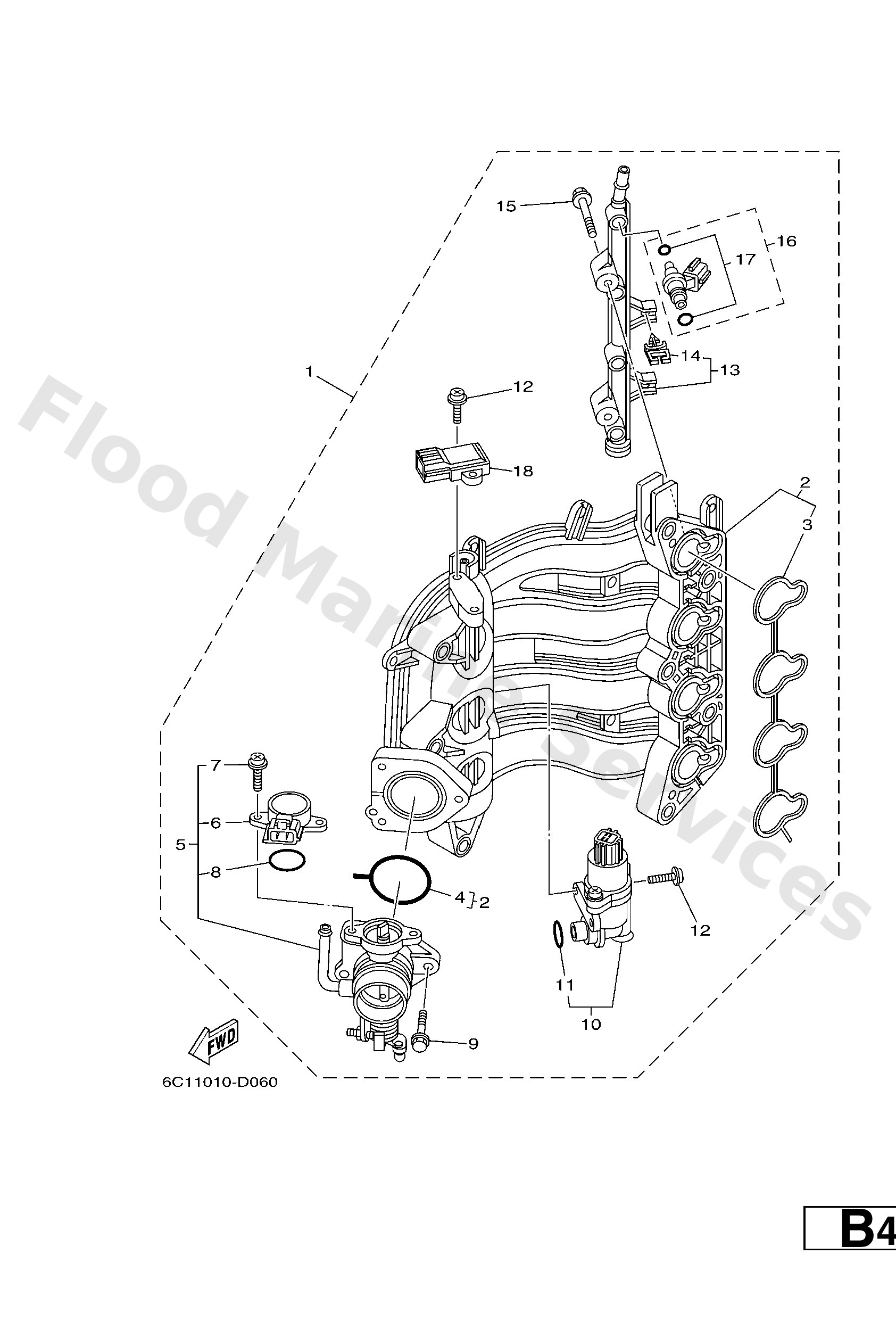

Diagram: INTAKE 1

Diagram

Parts List

Reference
Description
Price


1
6C51420000
Intake assembly
Loading…

↗
2
6C51364100
Manifold, intake 1
Loading…

↗
3
6C51364500
Gasket, manifold 1
Loading…

↗
4
6C51355700
Gasket
Loading…

↗
5
6C51375000
Throttle body assembly
Loading…

↗
6
6C58588500
Throttle sensor assembly
Loading…

↗
7
6C58114500
Screw 1
Loading…

↗
8
6C58182L00
O-ring 1
Loading…

↗
9
6C51449600
Bolt
Loading…

↗
10
6C51310501
Control valve assembly
Loading…

↗
11
6C51319C00
O-ring
Loading…

↗
12
6C58114600
Screw 2
Loading…

↗
13
6C51316100
Pipe, delivery 1
Loading…

↗
14
9046407M56
Clamp
Loading…

↗
15
6C51444600
Bolt
Loading…

↗
16
6C51376100
Injector assembly
Loading…

↗
17
6C51410B00
Packing kit
Loading…

↗
18
68F8368800
Sensor assembly
Loading…

↗
