VF115A (2022)
INTAKE 1

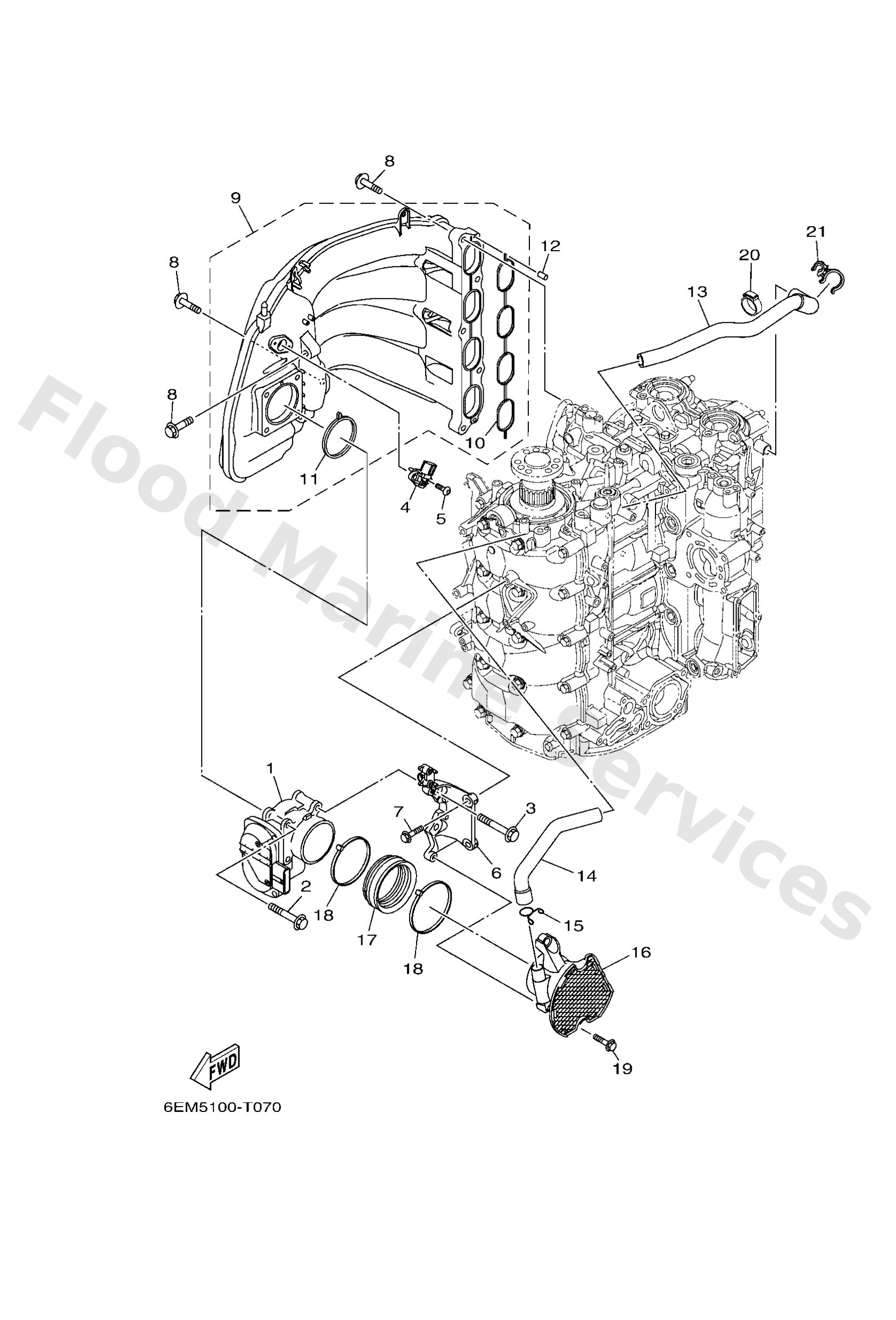

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
6EM1375100
Body, throttle 1
Loading…
↗
2
95D7508060
Bolt, flange deep recess
Loading…
↗
3
9010508186
Bolt, flange
Loading…
↗
4
68F8368810
Sensor assembly
Loading…
↗
5
9011105037
Bolt,hex. socket button
Loading…
↗
6
6EK1315202
Stay 2
Loading…
↗
7
95D7506025
Bolt, flange deep recess
Loading…
↗
8
9011908022
Bolt, with washer
Loading…
↗
9
6EM1364100
Manifold, intake 1
Loading…
↗
10
6EK1364500
Gasket, manifold 1
Loading…
↗
11
6EK1364600
Gasket, manifold 2
Loading…
↗
12
9169050014
Pin, spring (647)
Loading…
↗
13
6EK1537310
Pipe, breather
Loading…
↗
14
6EK1539300
Pipe, breather 2
Loading…
↗
15
9046723M16
Clip
Loading…
↗
16
6DA1444000
Silencer assembly, intake
Loading…
↗
17
6P21441J01
Pipe, silencer
Loading…
↗
18
9046499004
Clamp
Loading…
↗
20
9046426001
Clamp
Loading…
↗
21
9046421002
Clamp
Loading…
↗
