VF175XB (2025)
INTAKE 1

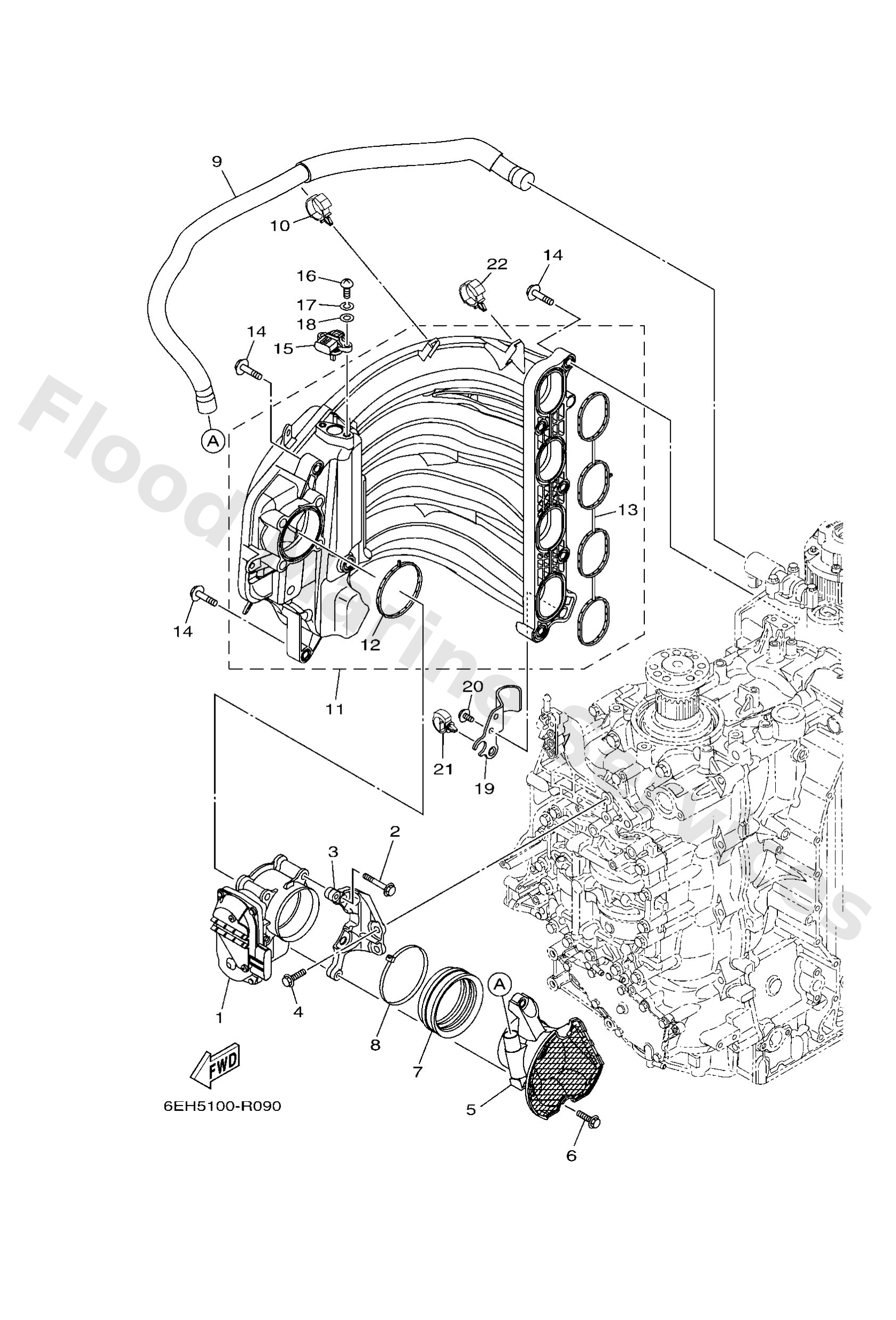

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
6DA1375102
Body, throttle 1
Loading…
↗
2
97E7508560
Bolt, hexagon w/w deep recess
Loading…
↗
3
6DA1315200
Stay 2
Loading…
↗
4
95D7506025
Bolt, flange deep recess
Loading…
↗
5
6DA1444000
Silencer assembly, intake
Loading…
↗
7
6P21441J01
Pipe, silencer
Loading…
↗
8
9046499004
Clamp
Loading…
↗
9
6DA1537300
Pipe, breather
Loading…
↗
10
9046412183
Clamp(jn2)
Loading…
↗
11
6DA1364100
Manifold, intake 1
Loading…
↗
12
6DA1364600
Gasket, manifold 2
Loading…
↗
13
6DA1364500
Gasket, manifold 1
Loading…
↗
14
9011908020
Bolt, with washer
Loading…
↗
15
68F8368810
Sensor assembly
Loading…
↗
16
9788505016
Screw, pan head(6b0)
Loading…
↗
17
9299505100
Ybs67-5 washer, spring
Loading…
↗
18
9299505600
Washer, plain (646)
Loading…
↗
19
6DA1388100
Cover 1
Loading…
↗
20
95D9506012
Bolt, flange deep recess
Loading…
↗
21
9046420181
Clamp(4ap)
Loading…
↗
