VF250XB (2025)
INTAKE 1

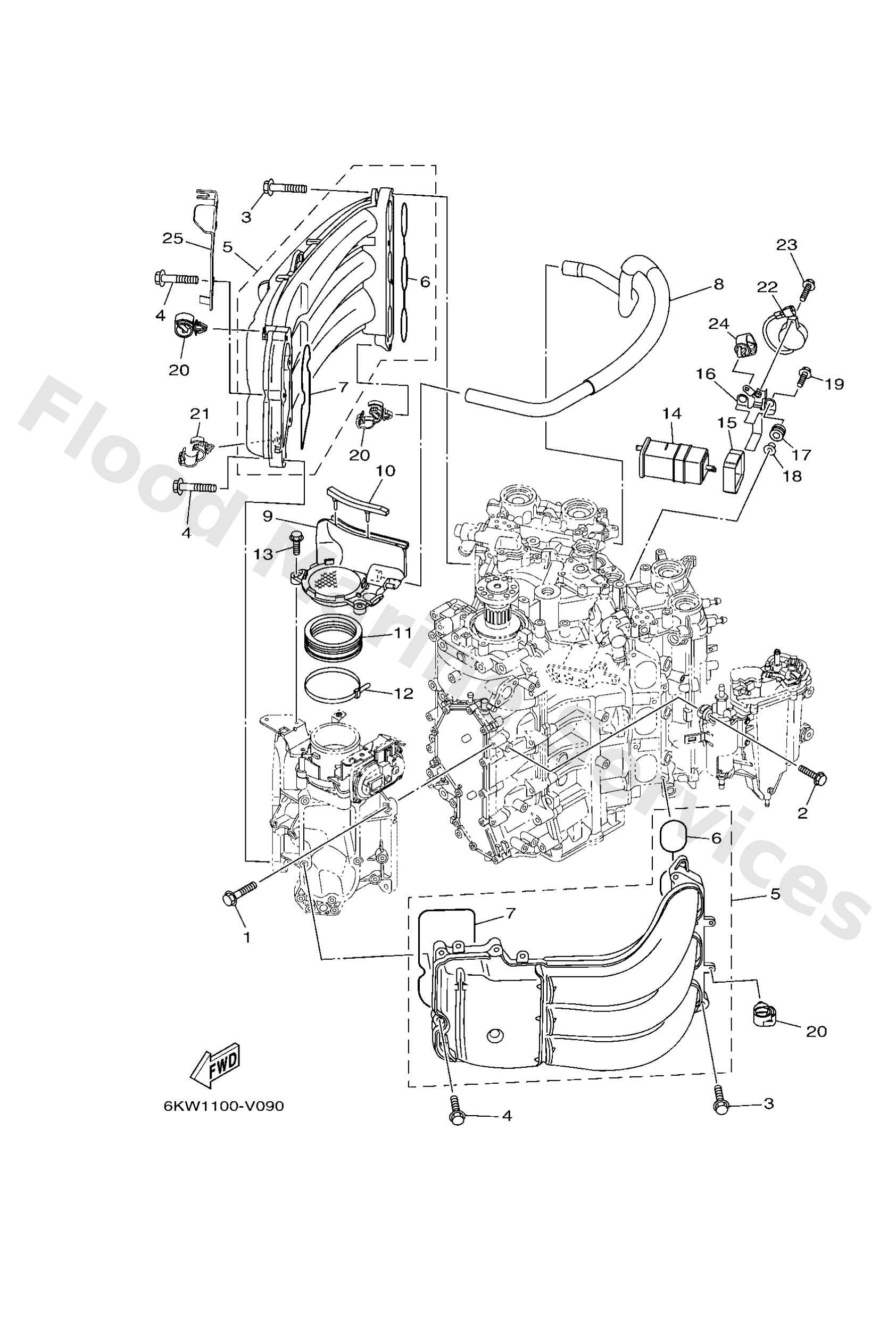

Diagram: INTAKE 1
Parts List
Reference
Description
Price
1
95D7508030
Bolt, flange deep recess
Loading…
↗
2
9011906299
Bolt, with washer
Loading…
↗
3
9011908020
Bolt, with washer
Loading…
↗
4
9010506035
Bolt, flange
Loading…
↗
5
6CB1364100
Manifold 1
Loading…
↗
6
6CB1364500
Gasket, manifold 1
Loading…
↗
7
6CB1364600
Gasket, manifold 2
Loading…
↗
8
6CB1537301
Pipe, breather
Loading…
↗
9
6CB1444001
Silencer assembly, intake
Loading…
↗
10
6CB8554700
Damper
Loading…
↗
11
6AW1441J01
Pipe, silencer
Loading…
↗
12
9046499004
Clamp
Loading…
↗
13
95D9506025
Bolt, flange deep recess
Loading…
↗
14
69J2417000
Canister assembly
Loading…
↗
15
6FP2419E01
Cover, canister
Loading…
↗
16
6KA2134X00
Bracket, canister
Loading…
↗
17
9048010M23
Grommet(6k7)
Loading…
↗
18
9038706289
Collar
Loading…
↗
19
9011906309
Bolt, with washer
Loading…
↗
20
9046413249
Clamp
Loading…
↗
21
9046407209
Clamp(m80)
Loading…
↗
22
6KA8338301
Buzzer
Loading…
↗
23
9011905M04
Bolt, with washer
Loading…
↗
25
6KW8238900
Plate 2
Loading…
↗
