60FET (2003)
INTAKE 2

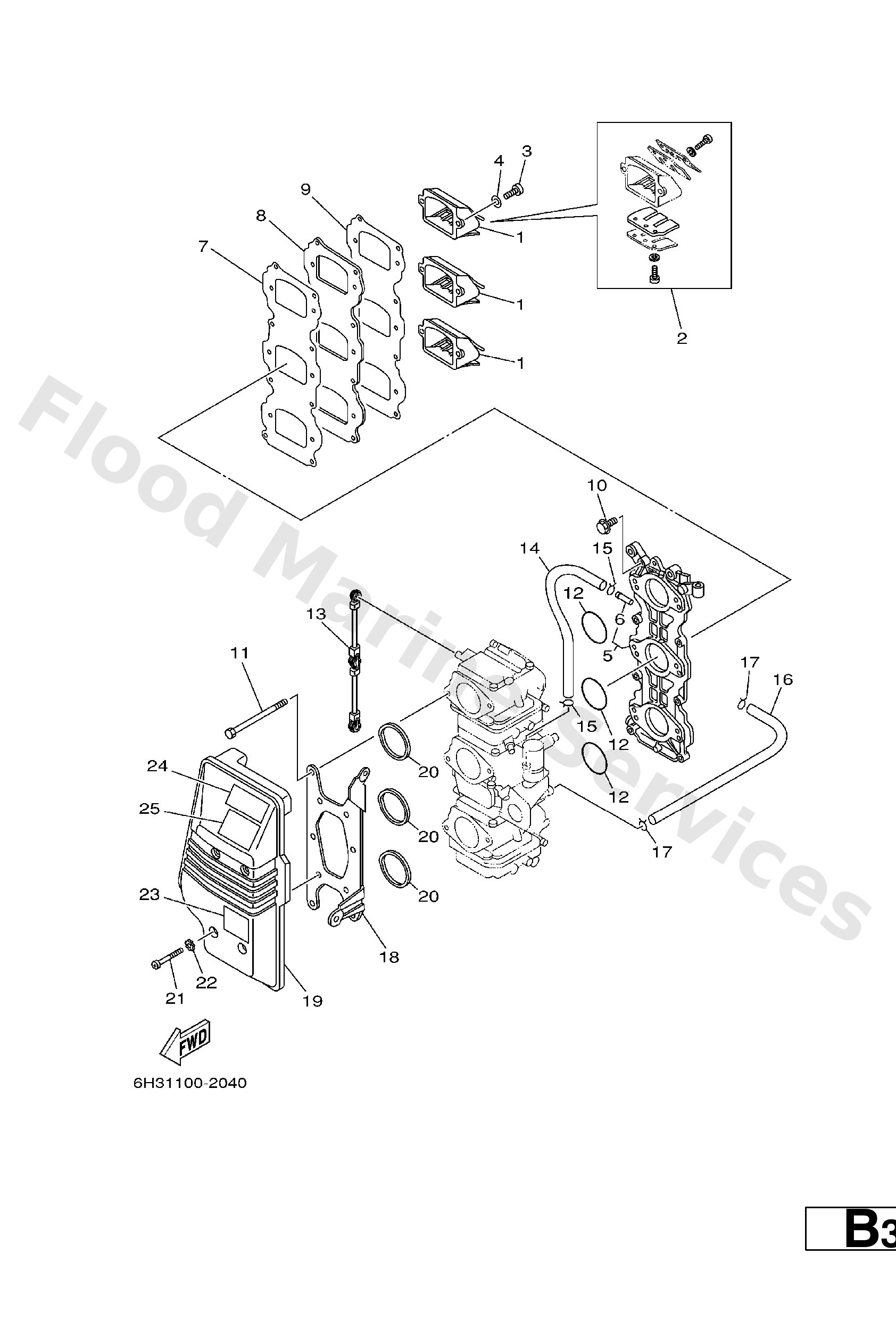

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
6H3−13610−00
Reed valve assembly
Loading…
↗
1
6H2−13610−00
Reed valve assembly
Loading…
↗
2
688−W0004−00
Reed set
Loading…
↗
3
97880−05016
Screw, pan head(6b0)
Loading…
↗
4
92990−05600
Washer, plain (646)
Loading…
↗
5
6H3−13641−13−94
Manifold, intake 1
Loading…
↗
6
6H1−14485−00
Pipe, joint
Loading…
↗
7
6H3−13621−A1
Gasket, valve seat
Loading…
↗
8
6H3−13624−00−94
Plate, reed valve
Loading…
↗
9
6H3−13622−A1
Gasket, valve seat
Loading…
↗
10
90119−06MA3
Bolt, with washer
Loading…
↗
11
97095−06095
Bolt, hexagon deep recess
Loading…
↗
12
93210−39ME4
O-ring(6h2)
Loading…
↗
13
6H3−41217−00
Rod, accel lever
Loading…
↗
14
90445−07255
Hose (l200)
Loading…
↗
15
90467−06016
Clip (655)
Loading…
↗
16
6H3−14349−00
Pipe
Loading…
↗
17
90467−08004
Clip, pipe 6162435600
Loading…
↗
18
6H3−14413−10
Stay
Loading…
↗
19
6H3−14440−02
Silencer assembly, intake
Loading…
↗
20
6H3−14457−01
Seal
Loading…
↗
21
97885−06045
Screw, pan head(6b0)
Loading…
↗
22
90209−06M05
Washer (688)
Loading…
↗
23
6H1−85711−60
Mark, caution
Loading…
↗
24
6A1−83625−41
Mark 5
Loading…
↗
25
6A1−83625−51
FOR CANADA
Mark 5
Loading…
↗
