E115AWH (2003)
INTAKE 2

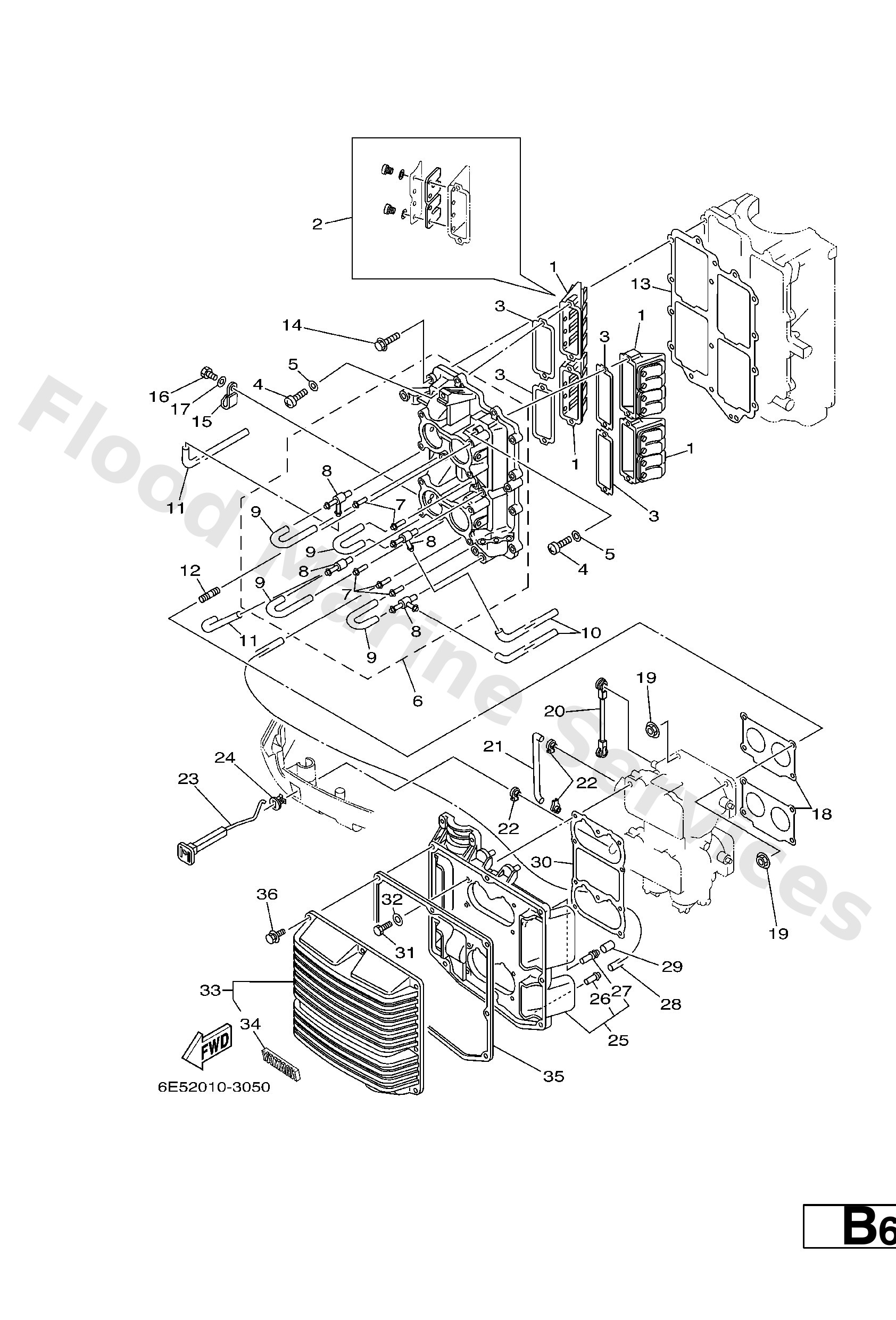

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
6E5−13610−00
Reed valve assembly
Loading…
↗
2
6E5−W0004−00
Reed set
Loading…
↗
3
6E5−13621−A1
Gasket, valve seat
Loading…
↗
4
97880−05025
Screw, panhead (a93)
Loading…
↗
5
92990−05600
Washer, plain (646)
Loading…
↗
6
6E5−13641−03−1S
Manifold 1
Loading…
↗
7
624−14485−00
Pipe, joint
Loading…
↗
8
6E5−11370−01
Check valve assembly
Loading…
↗
9
90445−07M28
Hose (l200)
Loading…
↗
10
90445−07M24
Hose (l390)
Loading…
↗
11
90445−07M46
Hose (l390)
Loading…
↗
12
90116−06M30
Bolt, stud(6e5)
Loading…
↗
13
6E5−13645−A1
Gasket, manifold 1
Loading…
↗
14
90119−06MA3
Bolt, with washer
Loading…
↗
15
90465−06M86
Clamp
Loading…
↗
16
97095−06012
Bolt(gh1)
Loading…
↗
17
92995−06600
Washer, plain (646)
Loading…
↗
18
6E5−14198−A2
Gasket
Loading…
↗
19
90179−06M28
Nut(63v)
Loading…
↗
20
6E5−41217−01
Rod, accel. lever
Loading…
↗
21
6E5−41256−01
Rod, choke 1
Loading…
↗
22
661−41262−02
Joint, choke lever
Loading…
↗
23
6E5−41271−02
Knob, choke
Loading…
↗
24
689−41273−00
Grommet
Loading…
↗
25
6E5−14417−10−94
Cover 1
Loading…
↗
27
6E5−14485−00
Pipe, joint
Loading…
↗
28
90445−07M23
Hose (l570)
Loading…
↗
29
647−14395−60
Cap,over flow pipe
Loading…
↗
30
6E5−14483−A1
Gasket
Loading…
↗
31
97013−06020
Bolt(62y)
Loading…
↗
32
92903−06600
Washer, plain (646)
Loading…
↗
33
6E5−14418−00
Cover 2
Loading…
↗
34
6E5−1441K−00
Emblem 1
Loading…
↗
35
6E5−14416−A1
Gasket, air cleaner
Loading…
↗
36
90119−06M31
Bolt, with washer(680)
Loading…
↗
