F150FET (2023)
INTAKE 2

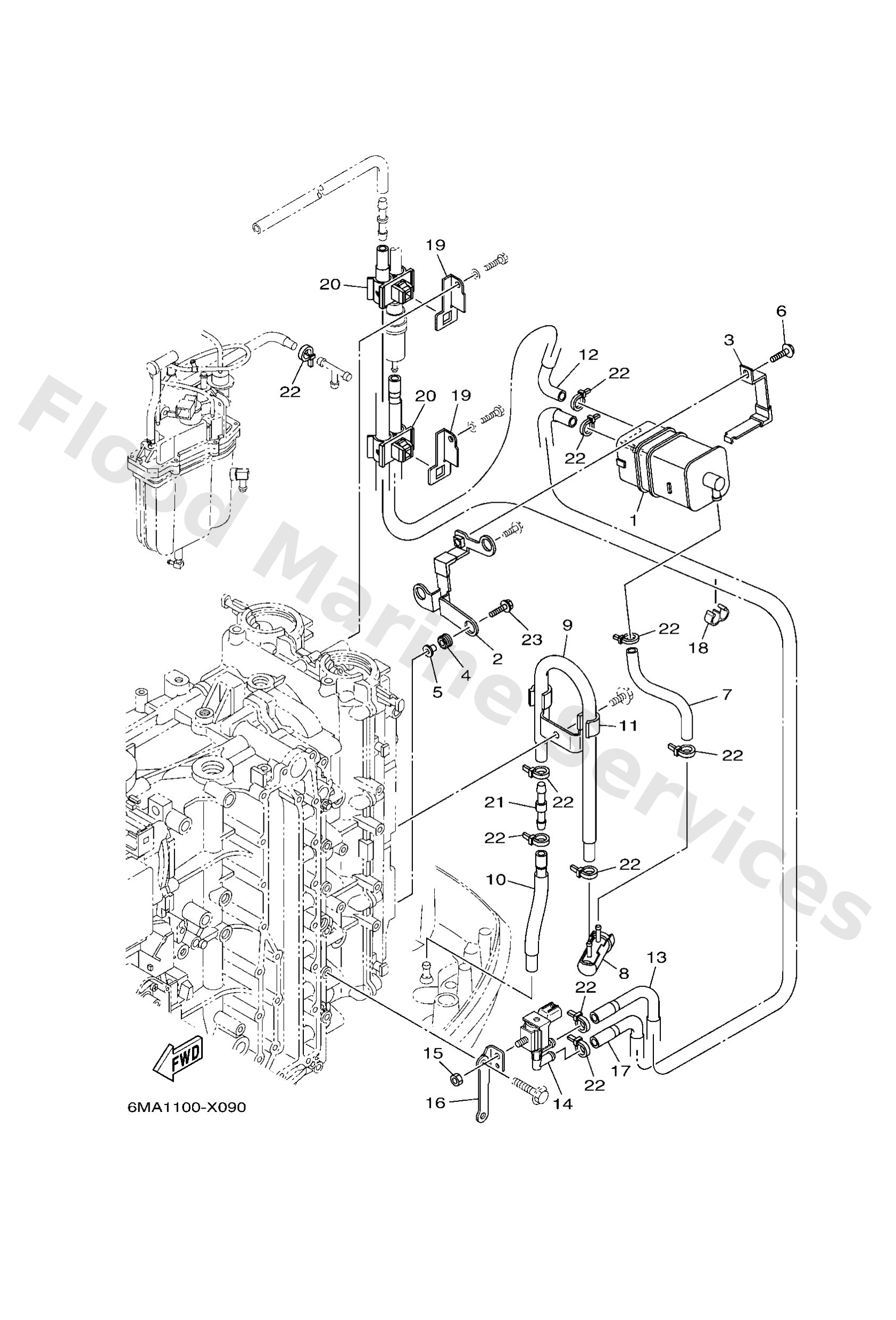

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
6P22417000
Canister assembly
Loading…
↗
2
63P2134X00
Bracket, canister
Loading…
↗
3
63P2419A01
Holder
Loading…
↗
4
9048010M23
Grommet(6k7)
Loading…
↗
5
9038706289
Collar
Loading…
↗
6
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
7
64P2431300
Pipe 3
Loading…
↗
8
69J2450200
Filter, fuel
Loading…
↗
9
64P2431200
Pipe 2
Loading…
↗
10
64P2431110
Pipe, fuel 1
Loading…
↗
11
63P2436701
Clamp, fuel pipe 2
Loading…
↗
12
64P2431500
Pipe 5
Loading…
↗
13
64P2431610
Pipe 6
Loading…
↗
14
6C58612000
Solenoid valve assembly
Loading…
↗
15
9538006600
Nut(661)
Loading…
↗
16
63P8184520
Plate
Loading…
↗
17
64P2431410
Pipe 4
Loading…
↗
18
9046409M31
Clamp(6m7)
Loading…
↗
19
63P2436401
Stay
Loading…
↗
20
9046411012
Clamp
Loading…
↗
21
6E52437900
Pipe, joint 4
Loading…
↗
22
9046511M10
Clamp
Loading…
↗
23
9011906135
Bolt, with washer
Loading…
↗
