F200GET (2019)
INTAKE 2

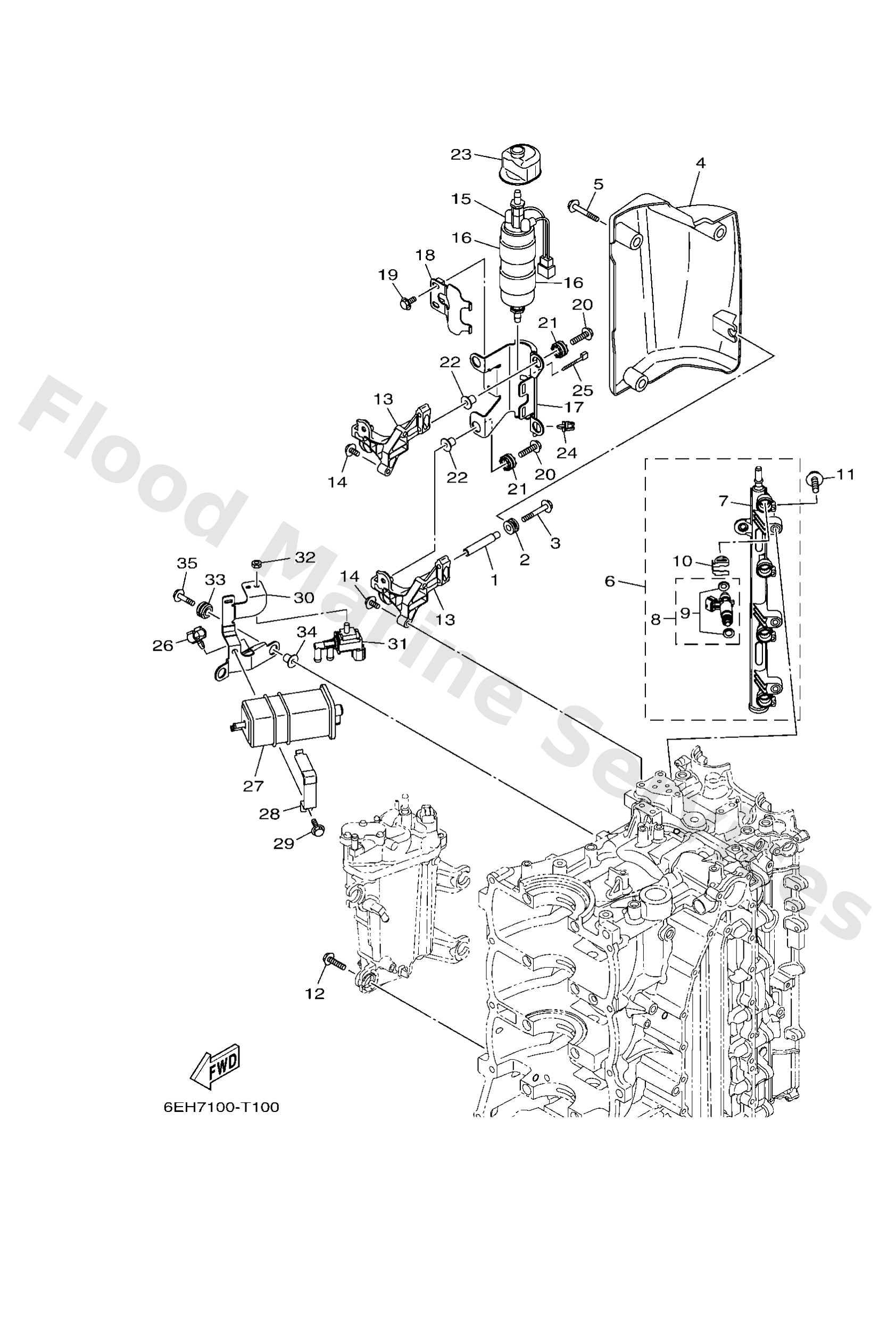

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
9038706283
Collar
Loading…
↗
2
9048012314
Grommet(3aa)
Loading…
↗
3
9010506054
Bolt, flange
Loading…
↗
4
6DA1356400
Cover, manifold
Loading…
↗
5
95D9506020
Bolt, flange deep recess
Loading…
↗
6
6DA1316001
Delivery pipe assembly 1
Loading…
↗
7
6DA1316101
Pipe, delivery 1
Loading…
↗
8
6DA1376100
Injector
Loading…
↗
9
6AW1410B00
Packing kit
Loading…
↗
10
6AW1357710
Clip
Loading…
↗
11
9010506M08
Bolt (689)
Loading…
↗
12
9011906269
Bolt, with washer
Loading…
↗
13
6DA2442500
Bracket, fuel pump 1
Loading…
↗
15
6CB2441001
Fuel pump assembly
Loading…
↗
16
6DA2449200
Bush, fuel pump
Loading…
↗
17
6DA2449100
Bracket, fuel pump
Loading…
↗
18
6DA2442600
Bracket, fuel pump 2
Loading…
↗
19
95D9506012
Bolt, flange deep recess
Loading…
↗
20
9011906M17
Bolt, with washer
Loading…
↗
21
60V8551600
Spacer
Loading…
↗
22
9038706289
Collar
Loading…
↗
23
6DA2446200
Cap, blind
Loading…
↗
24
9046411121
Clamp(4gy)
Loading…
↗
25
9046511M10
Clamp
Loading…
↗
26
9046409130
Clamp(3ld)
Loading…
↗
27
6P22417000
Canister assembly
Loading…
↗
28
63P2419A01
Holder
Loading…
↗
29
95D9506016
Bolt, flange deep recess
Loading…
↗
30
6DA2134X00
Bracket, canister
Loading…
↗
31
6C58612000
Solenoid valve assembly
Loading…
↗
32
9538006600
Nut(661)
Loading…
↗
33
9048014031
Grommet
