F225AET (2005)
INTAKE 2

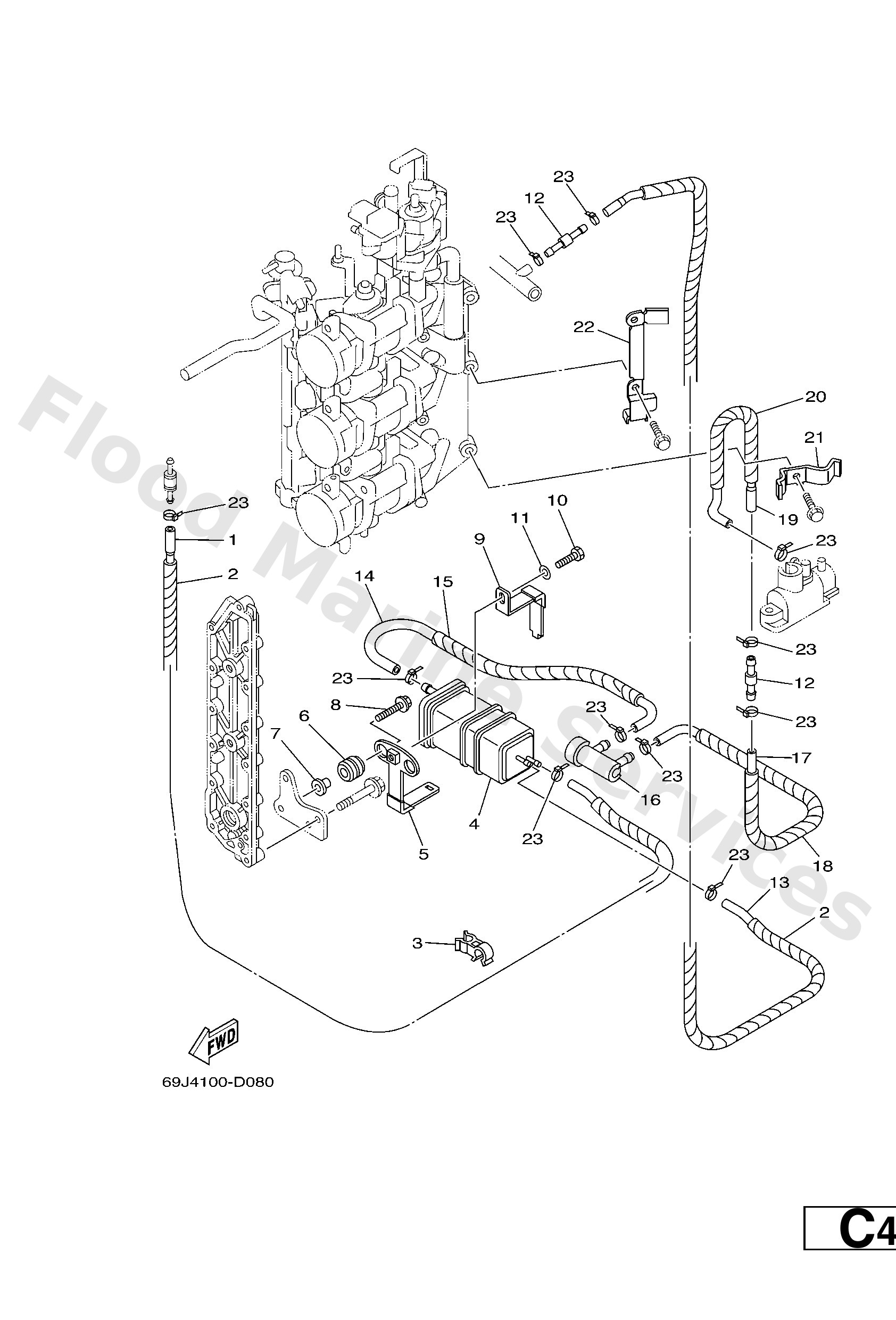

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
60L2431500
Pipe 5
Loading…
↗
2
9044810005
Hose, with union
Loading…
↗
3
9046412004
Clamp
Loading…
↗
4
69J2417000
Canister assembly
Loading…
↗
5
69J2134X00
Bracket, canister
Loading…
↗
6
9048010M23
Grommet(6k7)
Loading…
↗
7
9038706M60
Collar (6h3)
Loading…
↗
8
9011906M59
Bolt, with washer
Loading…
↗
9
69J2419A00
Holder
Loading…
↗
10
9709506016
Bolt, hexagon deep recess
Loading…
↗
11
9299506600
Washer, plain (646)
Loading…
↗
12
6E52437900
Pipe, joint 4
Loading…
↗
13
60L2431400
Pipe 4
Loading…
↗
14
60L2431300
Pipe 3
Loading…
↗
15
9044812003
Hose, with union
Loading…
↗
16
69J2450200
Filter, fuel
Loading…
↗
17
60L2431200
Pipe 2
Loading…
↗
18
9044812001
Hose, With Union
Loading…
↗
19
60L2431100
-
Loading…
↗
20
9044810002
Hose, With Union
Loading…
↗
21
60L2436700
Clamp, fuel pipe 2
Loading…
↗
22
60L2436600
Clamp, fuel pipe 1
Loading…
↗
23
9046511M10
Clamp
Loading…
↗
