F225CET (2014)
INTAKE 2

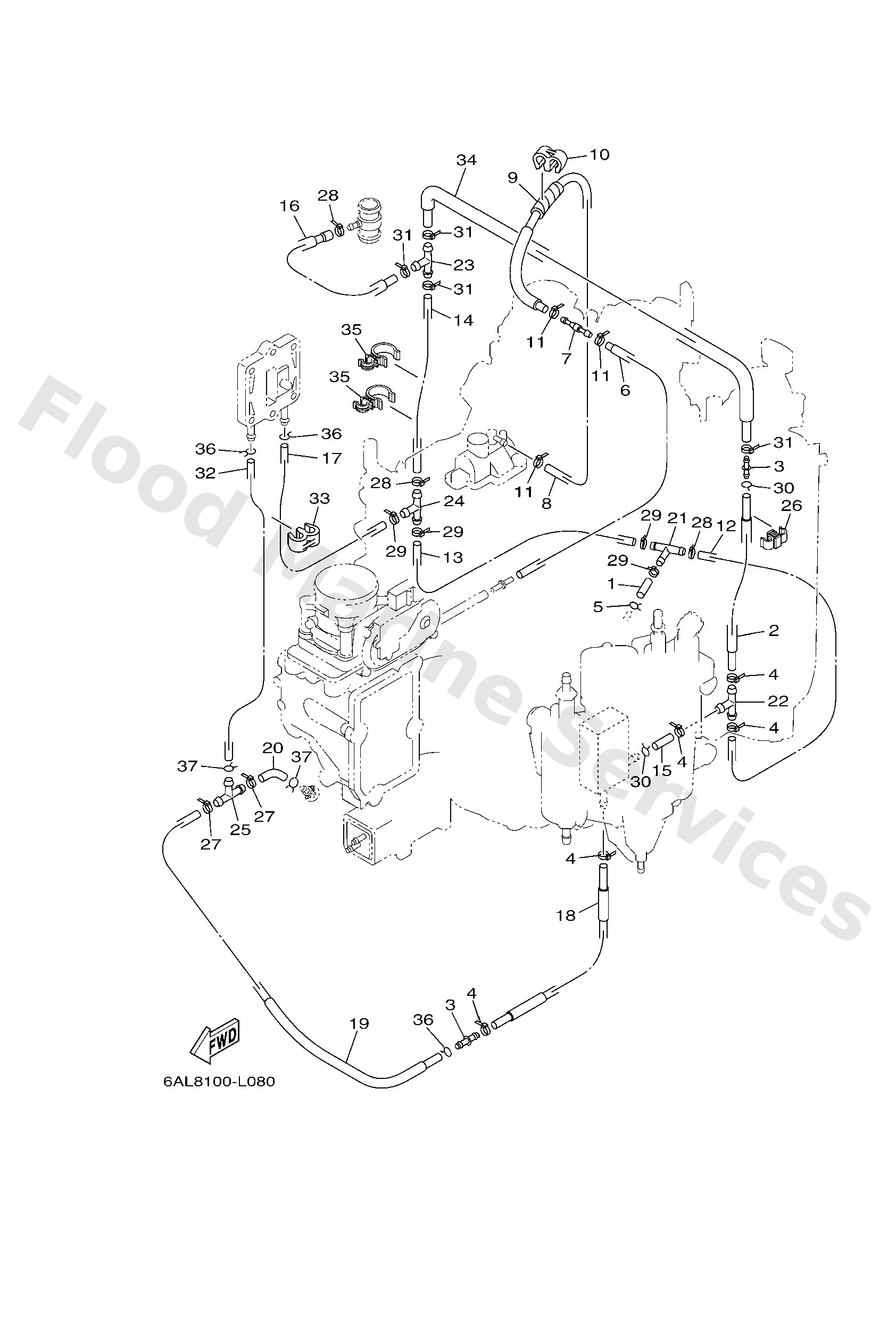

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
9044509040
Hose
Loading…
↗
2
6P21248401
Pipe 4
Loading…
↗
3
6CE2437600
Pipe, joint 1
Loading…
↗
4
9046511M10
Clamp
Loading…
↗
5
9046709M03
Clip(6k8)
Loading…
↗
6
6P21248200
Pipe 2
Loading…
↗
7
6E52174400
Breezer
Loading…
↗
8
6P21248300
Pipe 3
Loading…
↗
9
9044610M01
Tube (6e5)
Loading…
↗
10
9046460067
Clamp(56r)
Loading…
↗
12
9044509041
Hose
Loading…
↗
13
9044509224
Hose (l1500)
Loading…
↗
14
9044509097
Hose (l1500)
Loading…
↗
15
9044509220
Hose (l1500)
Loading…
↗
16
6P21248500
Pipe 5
Loading…
↗
17
6P21248A00
Pipe 8
Loading…
↗
18
6P21248E00
Pipe 9
Loading…
↗
19
6P21475200
Pipe, outlet
Loading…
↗
20
61A2431600
Pipe 6
Loading…
↗
21
6882437800
Pipe, joint
Loading…
↗
26
9046409013
Clamp
Loading…
↗
30
9046708M18
Clip
Loading…
↗
32
9044509304
Hose (l1500)
Loading…
↗
34
6P21248112
Pipe 1
Loading…
↗
35
9046421002
Clamp
Loading…
↗
37
9046709M09
Clip(6k8)
Loading…
↗
