F300XCB (2023)
INTAKE 2

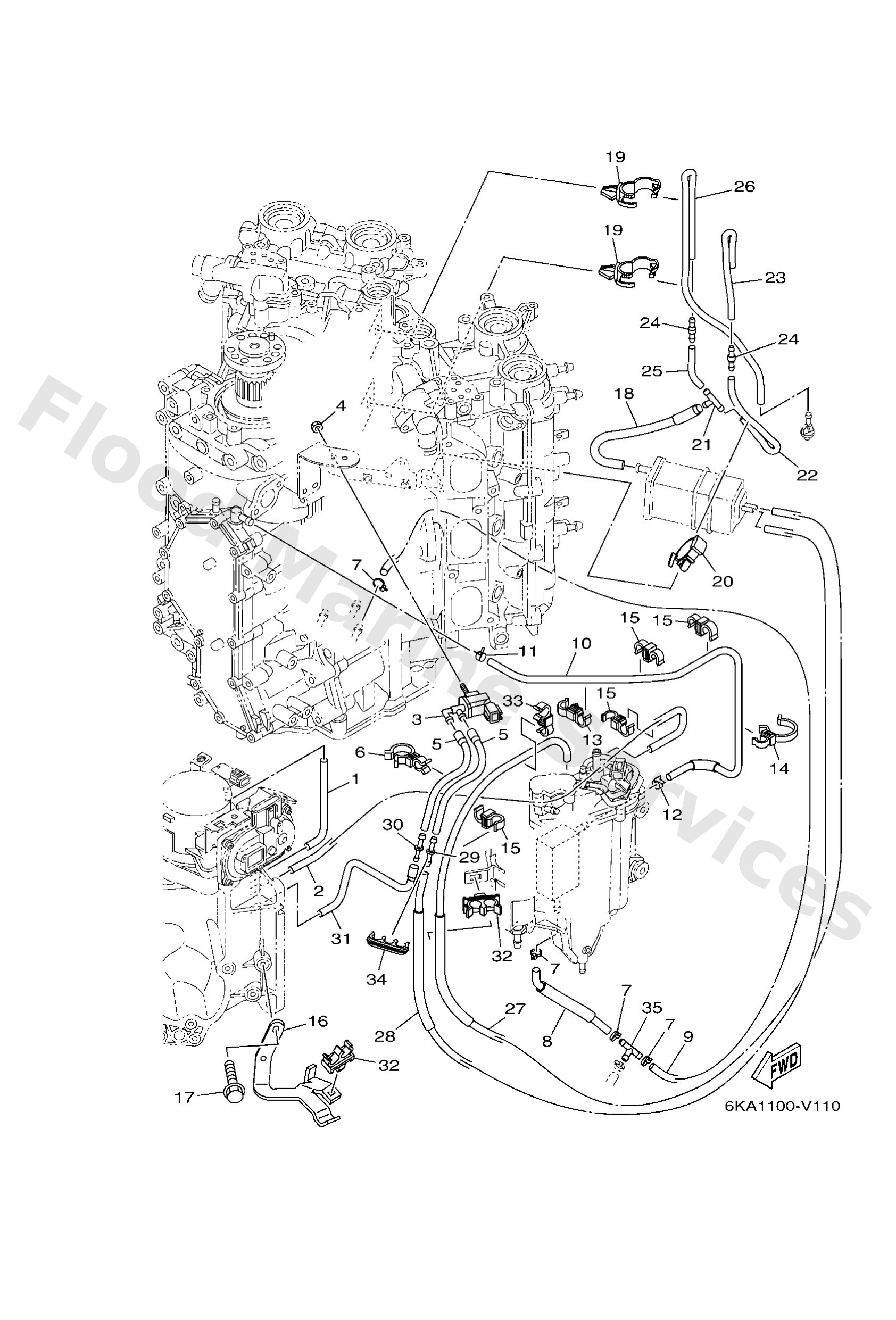

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
6CB1353300
Hose, vacuum sensing 4
Loading…
↗
2
6CB1353210
Hose, vacuum sensing 3
Loading…
↗
3
6C58612000
Solenoid valve assembly
Loading…
↗
4
9538006600
Nut(661)
Loading…
↗
5
6CB2416A00
Hose
Loading…
↗
6
9046423001
Clamp
Loading…
↗
7
9046511M10
Clamp
Loading…
↗
8
6CE1248210
Pipe 2
Loading…
↗
9
9044509120
Hose (l1500)
Loading…
↗
10
6CB1248400
Pipe 4
Loading…
↗
11
90467090A0
Clip
Loading…
↗
13
9046412010
Clamp
Loading…
↗
14
9046426002
Clamp
Loading…
↗
15
9046409013
Clamp
Loading…
↗
16
6CB1378200
Stay
Loading…
↗
17
95D9506016
Bolt, flange deep recess
Loading…
↗
18
6CB1354500
Hose 1
Loading…
↗
19
9046420181
Clamp(4ap)
Loading…
↗
20
9046407209
Clamp(m80)
Loading…
↗
21
6882437800
Pipe, joint
Loading…
↗
22
6CB1354601
Hose 2
Loading…
↗
23
6CB1354700
Hose 3
Loading…
↗
24
6E52174400
Breezer
Loading…
↗
25
6CB1354800
Hose, air 4
Loading…
↗
26
6KA1248300
Pipe 3
Loading…
↗
27
6KA1475A00
Pipe 1
Loading…
↗
28
6KA1475F00
Pipe 3
Loading…
↗
29
6G82437600
Pipe, joint 1
Loading…
↗
30
6EK1498900
Orifice, air vent
Loading…
↗
31
6CB1475G10
Pipe 4
Loading…
↗
32
9046411012
Clamp
Loading…
↗
34
9046410011
Clamp
Loading…
↗
