F350NSA (2024)
INTAKE 2

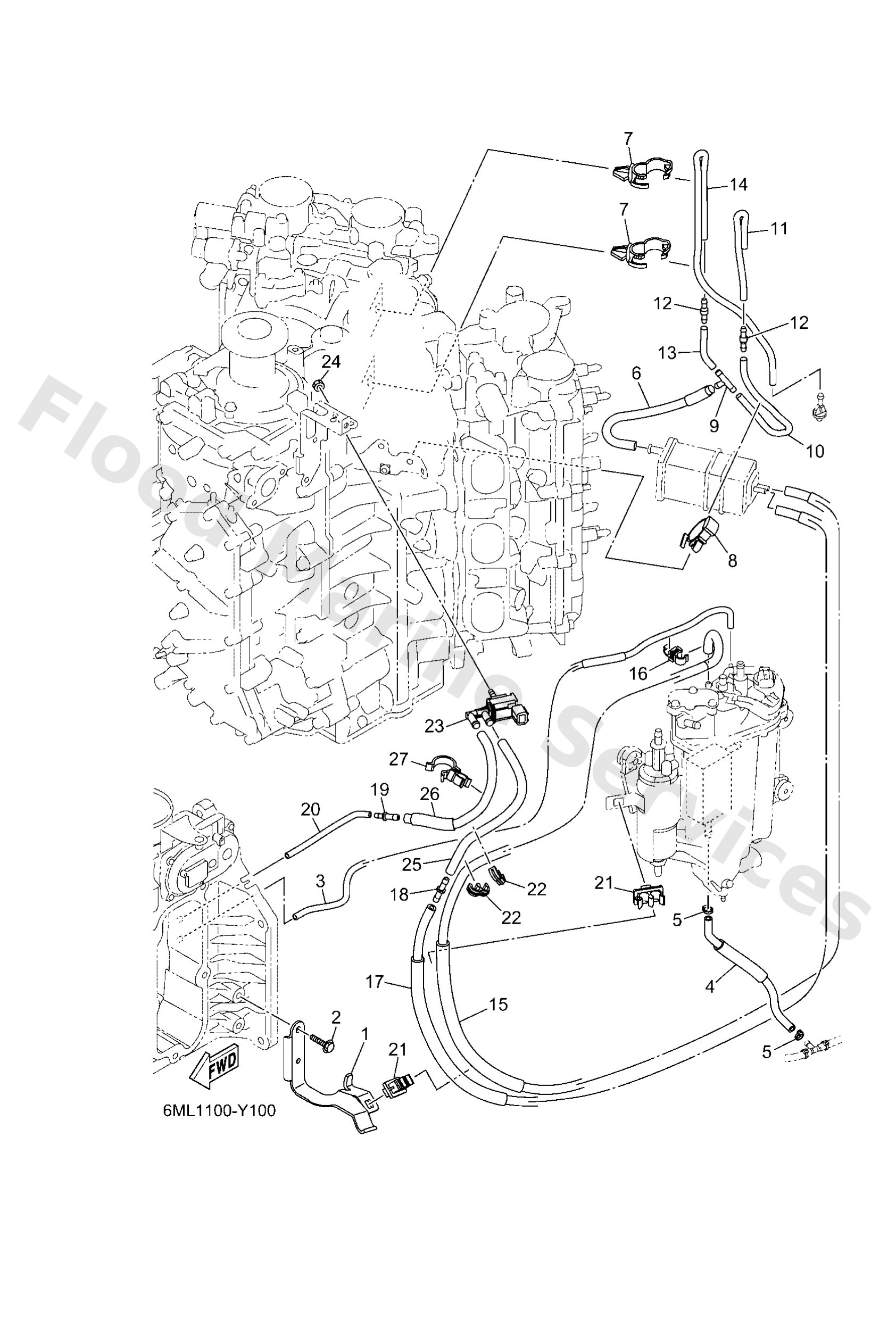

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
6ML1378200
Stay
Loading…
↗
2
95D9506016
Bolt, flange deep recess
Loading…
↗
3
6ML1353200
Hose, vacuum sensing 3
Loading…
↗
4
6ML1248200
Pipe 2
Loading…
↗
5
9046511M10
Clamp
Loading…
↗
6
6CB1354500
Hose 1
Loading…
↗
7
9046420181
Clamp(4ap)
Loading…
↗
8
9046407209
Clamp(m80)
Loading…
↗
9
6882437800
Pipe, joint
Loading…
↗
10
6CB1354601
Hose 2
Loading…
↗
11
6CB1354700
Hose 3
Loading…
↗
12
6E52174400
Breezer
Loading…
↗
13
6CB1354800
Hose, air 4
Loading…
↗
14
6KA1248300
Pipe 3
Loading…
↗
15
6ML1475A00
Pipe 1
Loading…
↗
16
9046409013
Clamp
Loading…
↗
17
6ML1475E00
Pipe 2
Loading…
↗
18
6G82437600
Pipe, joint 1
Loading…
↗
19
6EK1498900
Orifice, air vent
Loading…
↗
20
6ML1475G00
Pipe 4
Loading…
↗
21
9046411012
Clamp
Loading…
↗
22
9046410M57
Clamp
Loading…
↗
23
6C58612000
Solenoid valve assembly
Loading…
↗
24
9538006600
Nut(661)
Loading…
↗
25
6ML1475F00
Pipe 3
Loading…
↗
26
6ML2416A00
Hose
Loading…
↗
27
9046423001
Clamp
Loading…
↗
