F40AET (2002)
INTAKE 2

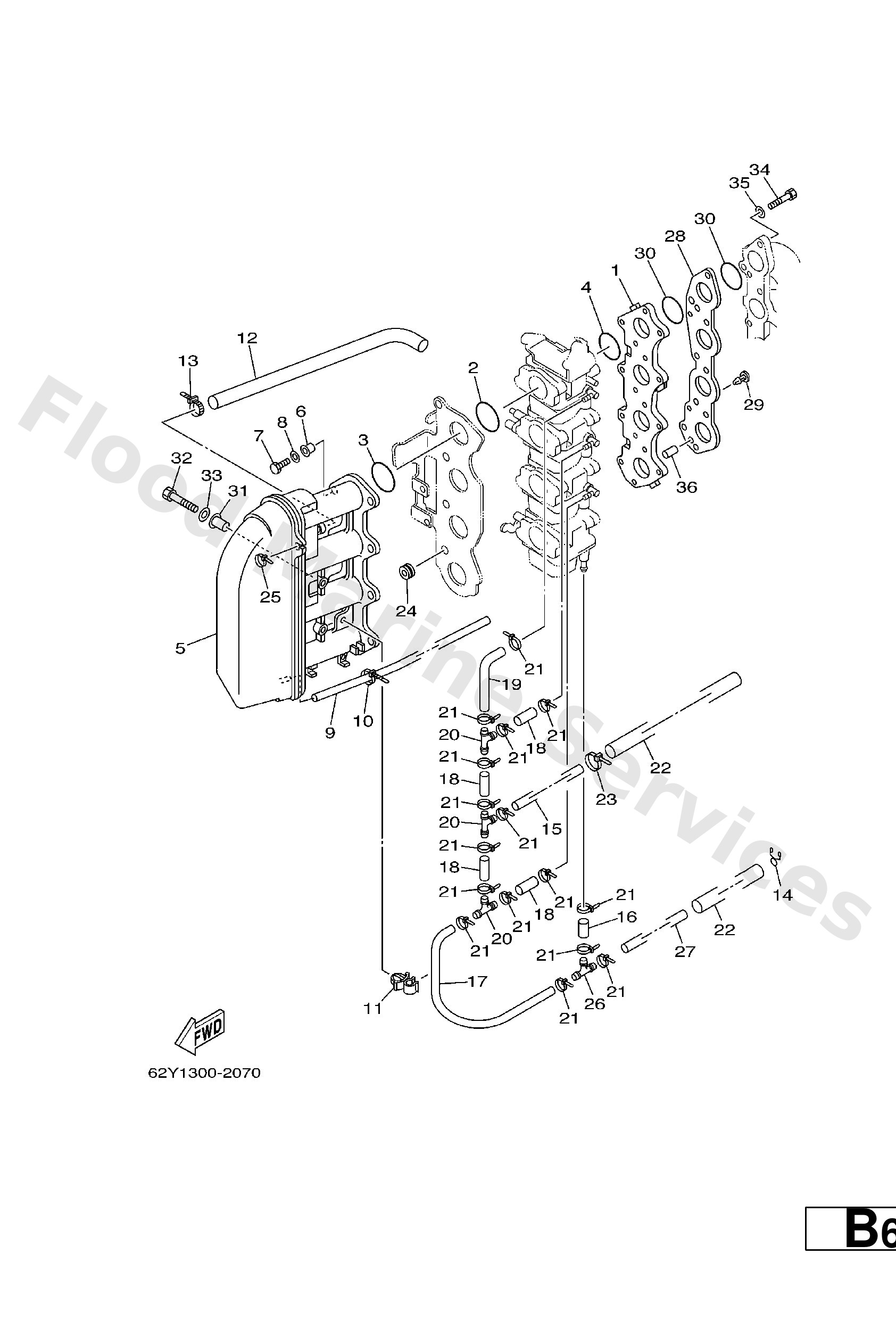

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
62Y135860094
Joint, Carburetor 1
Loading…
↗
2
9321035M86
O-ring(6l2)
Loading…
↗
3
9321038MH3
O-ring(62y)
Loading…
↗
4
9321030MH4
O-ring(62y)
Loading…
↗
5
62Y1444000
Silencer assembly, intake
Loading…
↗
6
9038706M70
Collar (6h5)
Loading…
↗
7
9709506090
Bolt(62y)
Loading…
↗
8
9299506600
Washer, plain (646)
Loading…
↗
9
9044507M38
Hose (l570)
Loading…
↗
10
9046511M10
Clamp
Loading…
↗
11
9046410M32
Clamp(6m7)
Loading…
↗
12
62Y1537300
Pipe, Breather
Loading…
↗
13
9046513M36
Clamp(6h4)
Loading…
↗
14
9046710M04
Clip, pipe 1 (6e9)
Loading…
↗
15
9044510M33
Hose (l1040)
Loading…
↗
16
9044510M85
Hose (l400)
Loading…
↗
17
62Y2431100
Pipe, Fuel 1
Loading…
↗
18
9044510M14
Hose (l400)
Loading…
↗
19
62Y2431300
Pipe, fuel 1
Loading…
↗
20
6882437800
Pipe, joint
Loading…
↗
22
9044516M00
Hose (L200)
Loading…
↗
24
9048011224
Grommet (2h7)
Loading…
↗
26
62Y2437800
Pipe, joint 4
Loading…
↗
27
9044510M18
Hose (l400)
Loading…
↗
28
62Y1427100
Insulator
Loading…
↗
29
9033804M17
Plug(62y)
Loading…
↗
31
9038706M15
Collar(6g8)
Loading…
↗
32
9709506030
Bolt(jf7)
Loading…
↗
34
9709506025
Bolt
Loading…
↗
36
9360816M16
Pin, dowel(6t4)
Loading…
↗
