F40FEHD (2011)
INTAKE 2

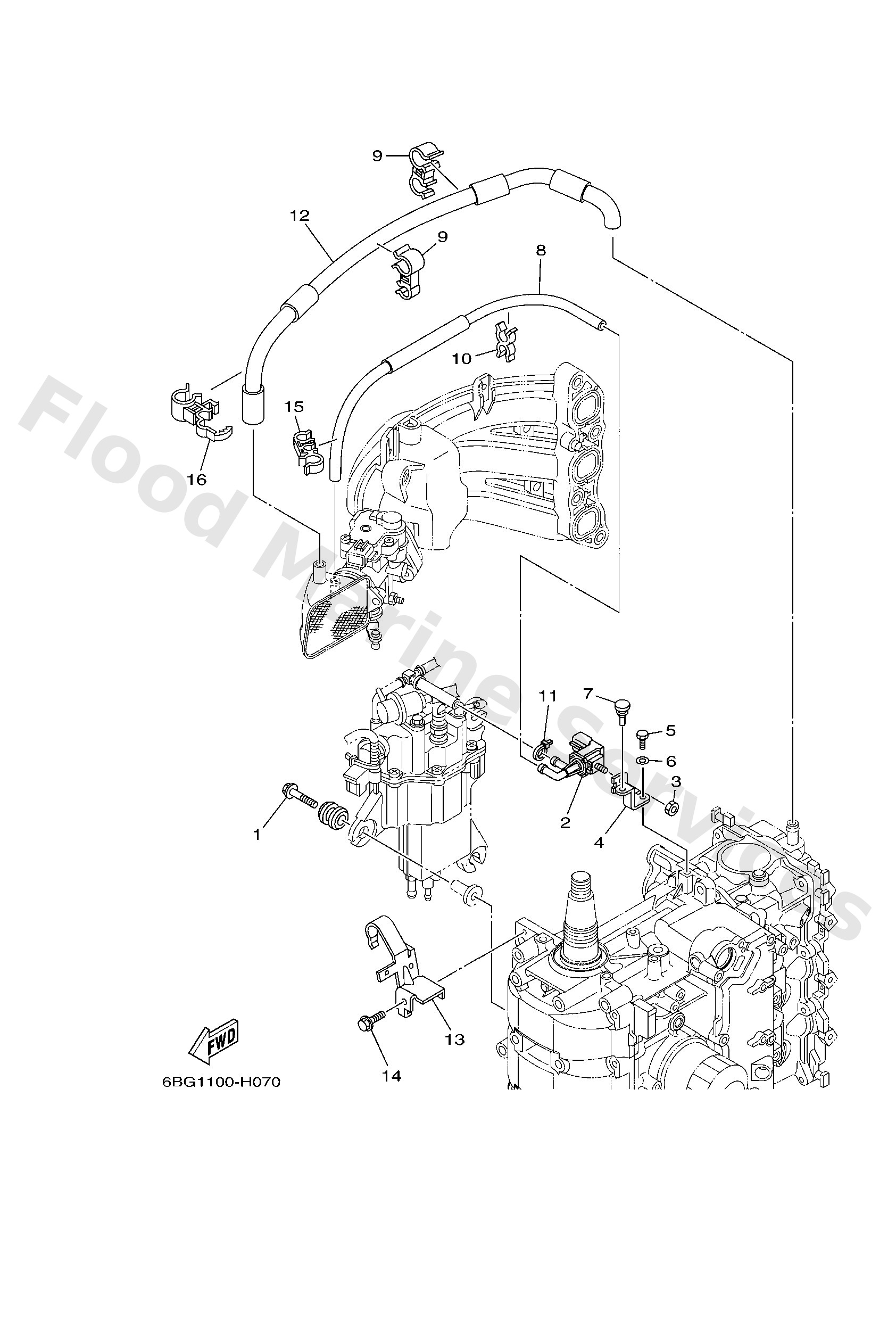

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
9011906M61
Bolt, with washer
Loading…
↗
2
6C58612000
Solenoid valve assembly
Loading…
↗
3
9538006600
Nut(661)
Loading…
↗
4
6BG8611200
Stay, solenoid
Loading…
↗
5
9709506016
Bolt, hexagon deep recess
Loading…
↗
6
9299506600
Washer, plain (646)
Loading…
↗
7
9048006M19
Grommet (6e3)
Loading…
↗
8
6BG1257600
Hose 1
Loading…
↗
9
9046415007
Clamp
Loading…
↗
10
9046411M24
Clamp(6h1)
Loading…
↗
11
9046511M10
Clamp
Loading…
↗
12
6BG1531A00
Hose, breather 1
Loading…
↗
13
6BG1537800
Holder
Loading…
↗
14
9011906037
Bolt, with washer
Loading…
↗
15
9046415008
Clamp
Loading…
↗
16
9046415011
Clamp
Loading…
↗
