F40GET (2020)
INTAKE 2

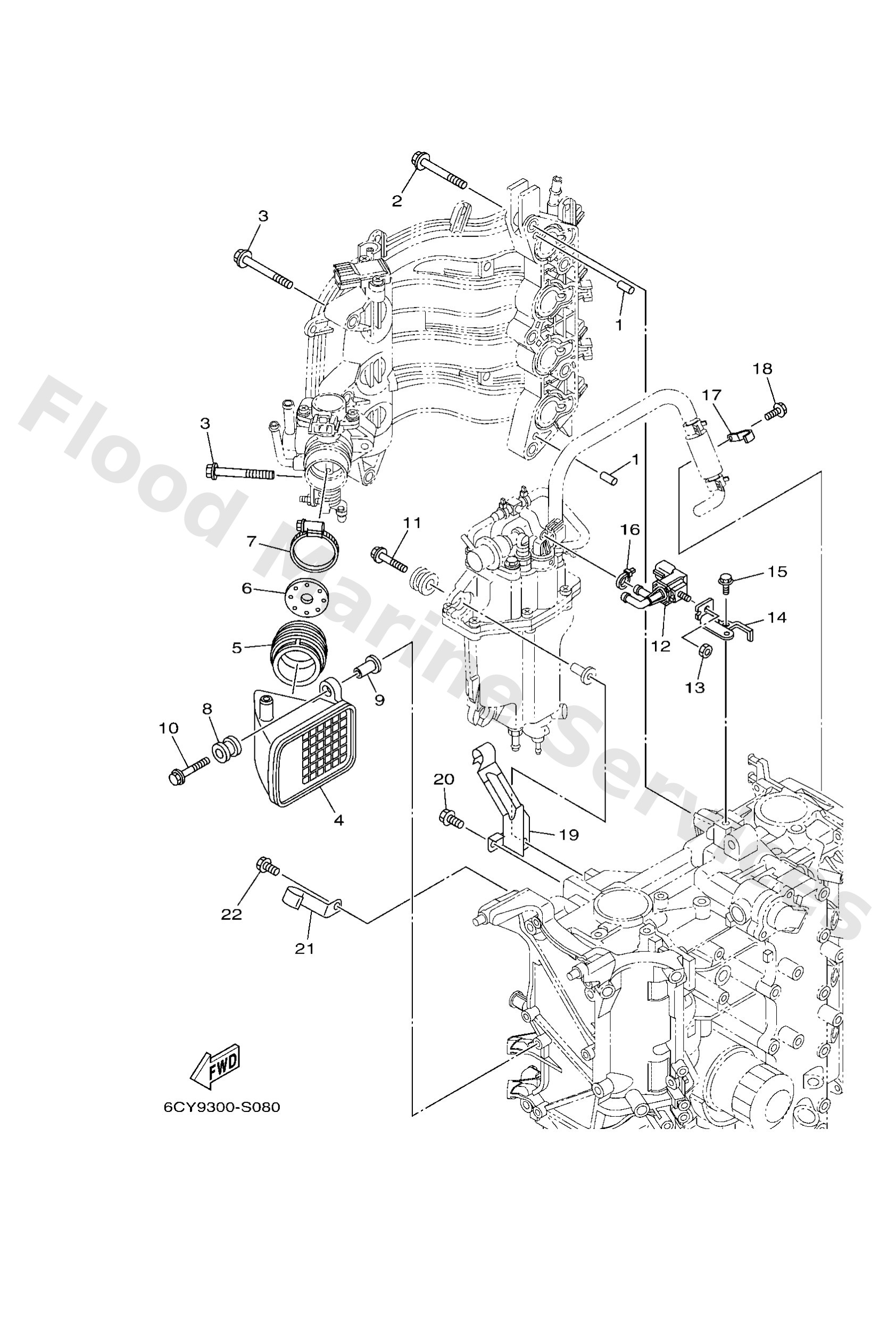

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
9360812M05
Pin, dowel b (6e5)
Loading…
↗
2
9011908069
Bolt, with washer
Loading…
↗
3
9011906087
Bolt, with washer
Loading…
↗
4
6C51444010
Silencer assembly, intake
Loading…
↗
5
6C11445301
Joint, air cleaner 1
Loading…
↗
6
6CY1447700
Plate
Loading…
↗
7
9045050001
Hose Clamp assembly
Loading…
↗
8
6A08231700
Damper, ignition coil
Loading…
↗
9
9038706119
Collar
Loading…
↗
10
9011906126
Bolt, with washer
Loading…
↗
11
9011906M61
Bolt, with washer
Loading…
↗
12
6C58612000
Solenoid valve assembly
Loading…
↗
13
9538006600
Nut(661)
Loading…
↗
14
6BG8611210
Stay, solenoid
Loading…
↗
15
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
16
9046511M10
Clamp
Loading…
↗
17
6CJ1342800
Bracket, strainer 1
Loading…
↗
19
6C51537800
Holder
Loading…
↗
20
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
21
6C51537811
Holder
Loading…
↗
