F80BET (2017)
INTAKE 2

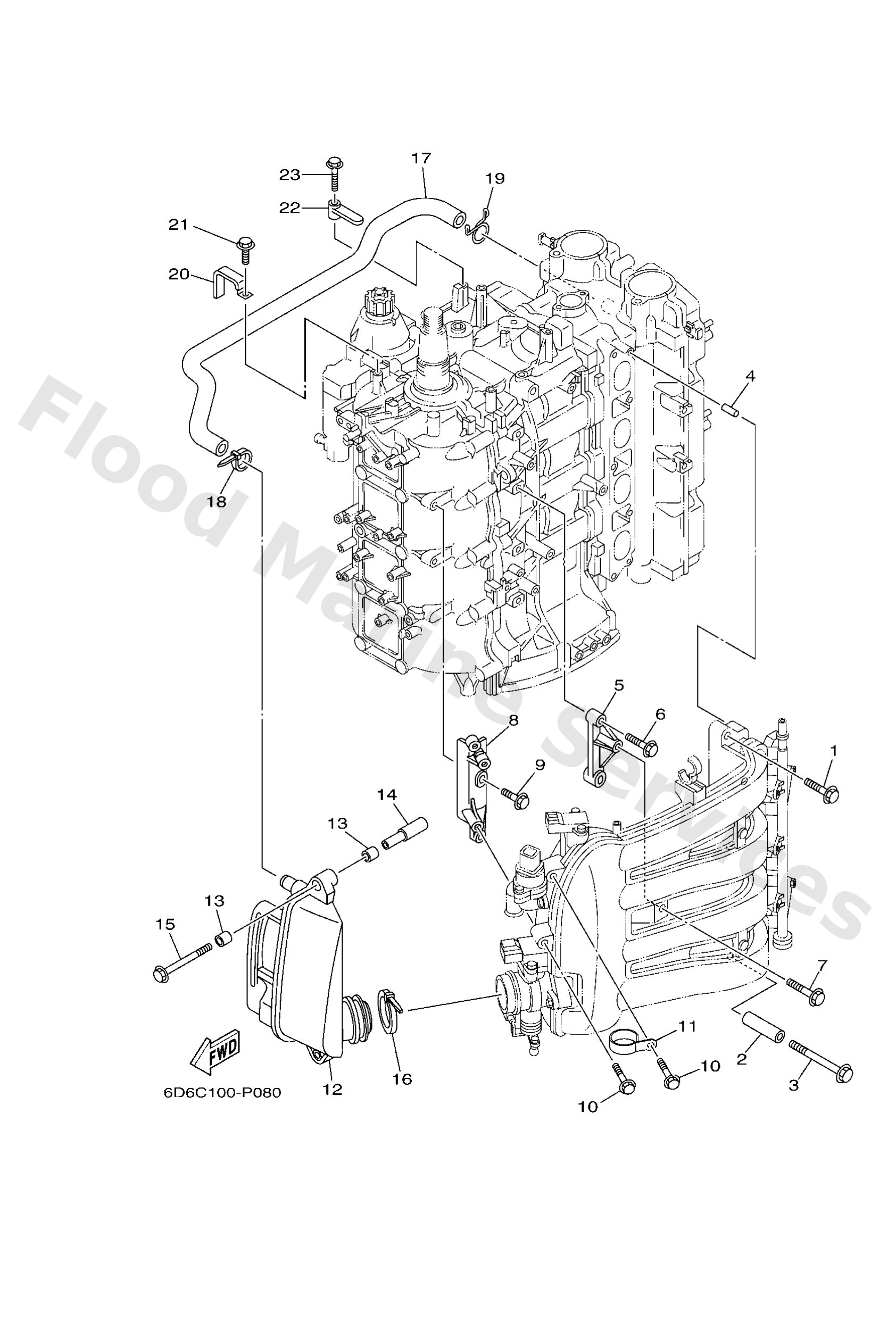

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
9011908069
Bolt, with washer
Loading…
↗
2
9038708033
Collar
Loading…
↗
3
9011908M03
Bolt (689)
Loading…
↗
4
9169050014
Pin, spring (647)
Loading…
↗
5
6D81429100
Bracket 1
Loading…
↗
6
9759506530
Bolt, hexagon w/w deep recess
Loading…
↗
7
9011906087
Bolt, with washer
Loading…
↗
8
6D81429200
Bracket 2
Loading…
↗
9
9759506520
Bolt(7u8)
Loading…
↗
11
6D81378200
Stay
Loading…
↗
12
6D91444002
Silencer assembly, intake
Loading…
↗
12
6D61444001
Silencer assembly, intake
Loading…
↗
13
9038608001
Bush
Loading…
↗
14
9038707013
Collar
Loading…
↗
15
9011906113
Bolt, with washer
Loading…
↗
16
9046476001
Clamp
Loading…
↗
17
6D81537300
Pipe, breather
Loading…
↗
18
9046511M59
Clamp(63m)
Loading…
↗
19
9046720M15
Clip
Loading…
↗
20
9046512M03
Clamp, cord (688)
Loading…
↗
21
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
22
6D88254400
Clamp
Loading…
↗
23
9589506025
Bolt, flange deep recess
Loading…
↗
