F80CED (2009)
INTAKE 2

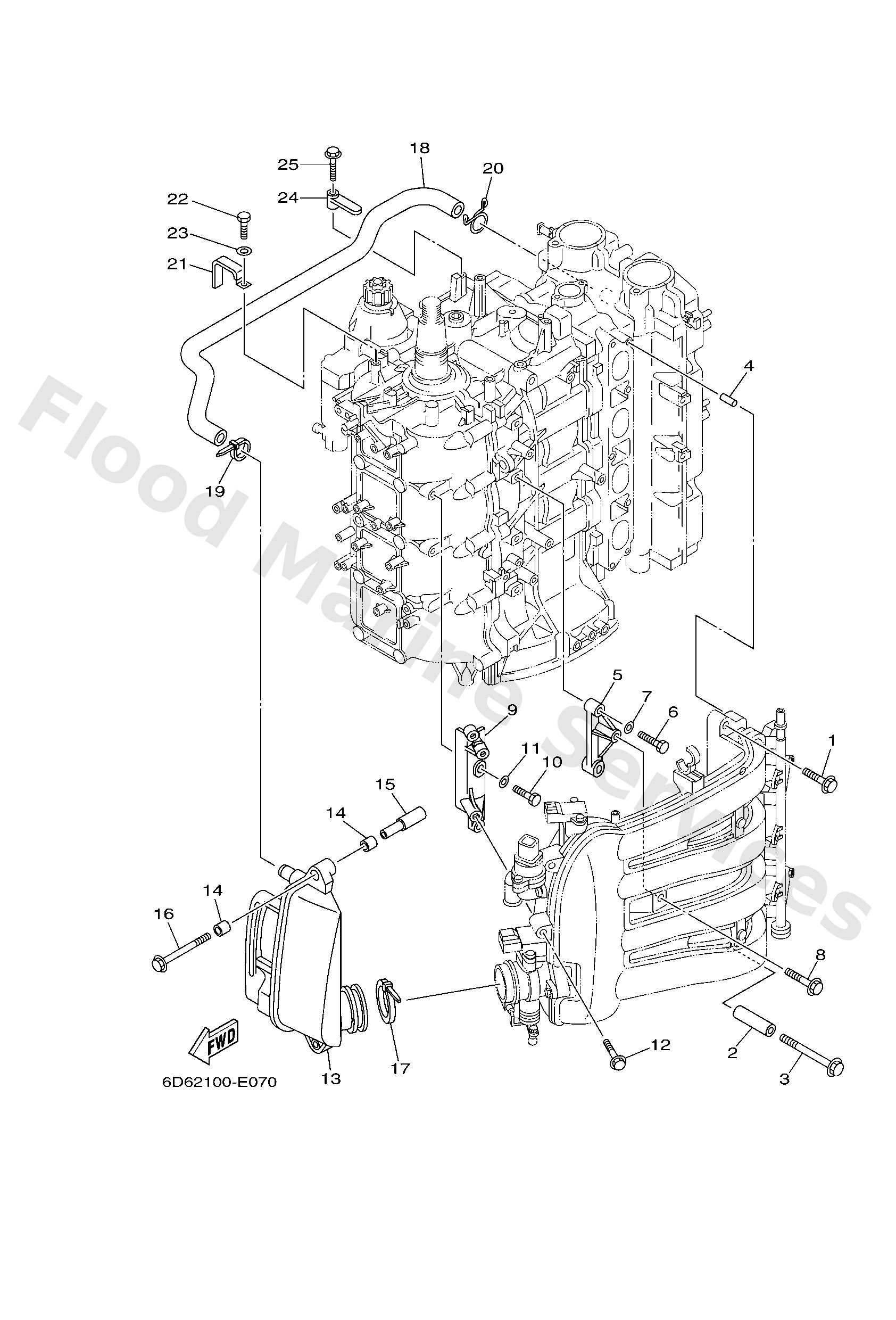

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
9011908069
Bolt, with washer
Loading…
↗
2
9038708033
Collar
Loading…
↗
3
9011908M03
Bolt (689)
Loading…
↗
4
9169050014
Pin, spring (647)
Loading…
↗
5
6D8142910094
Bracket 1
Loading…
↗
6
9709506030
Bolt(jf7)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
9011906087
Bolt, with washer
Loading…
↗
9
6D8142920094
Bracket 2
Loading…
↗
10
9709506020
Bolt(7u8)
Loading…
↗
13
6D61444000
Silencer assembly, intake
Loading…
↗
14
9038608001
Bush
Loading…
↗
15
9038707013
Collar
Loading…
↗
16
9011906113
Bolt, with washer
Loading…
↗
17
9046476001
Clamp
Loading…
↗
18
6D81537300
Pipe, breather
Loading…
↗
19
9046511M59
Clamp(63m)
Loading…
↗
20
9046720M15
Clip
Loading…
↗
21
9046512M03
Clamp, cord (688)
Loading…
↗
22
9709506012
Bolt(gh1)
Loading…
↗
24
6D88254400
Clamp
Loading…
↗
25
9589506025
Bolt, flange deep recess
Loading…
↗
