FL115AET (2003)
INTAKE 2

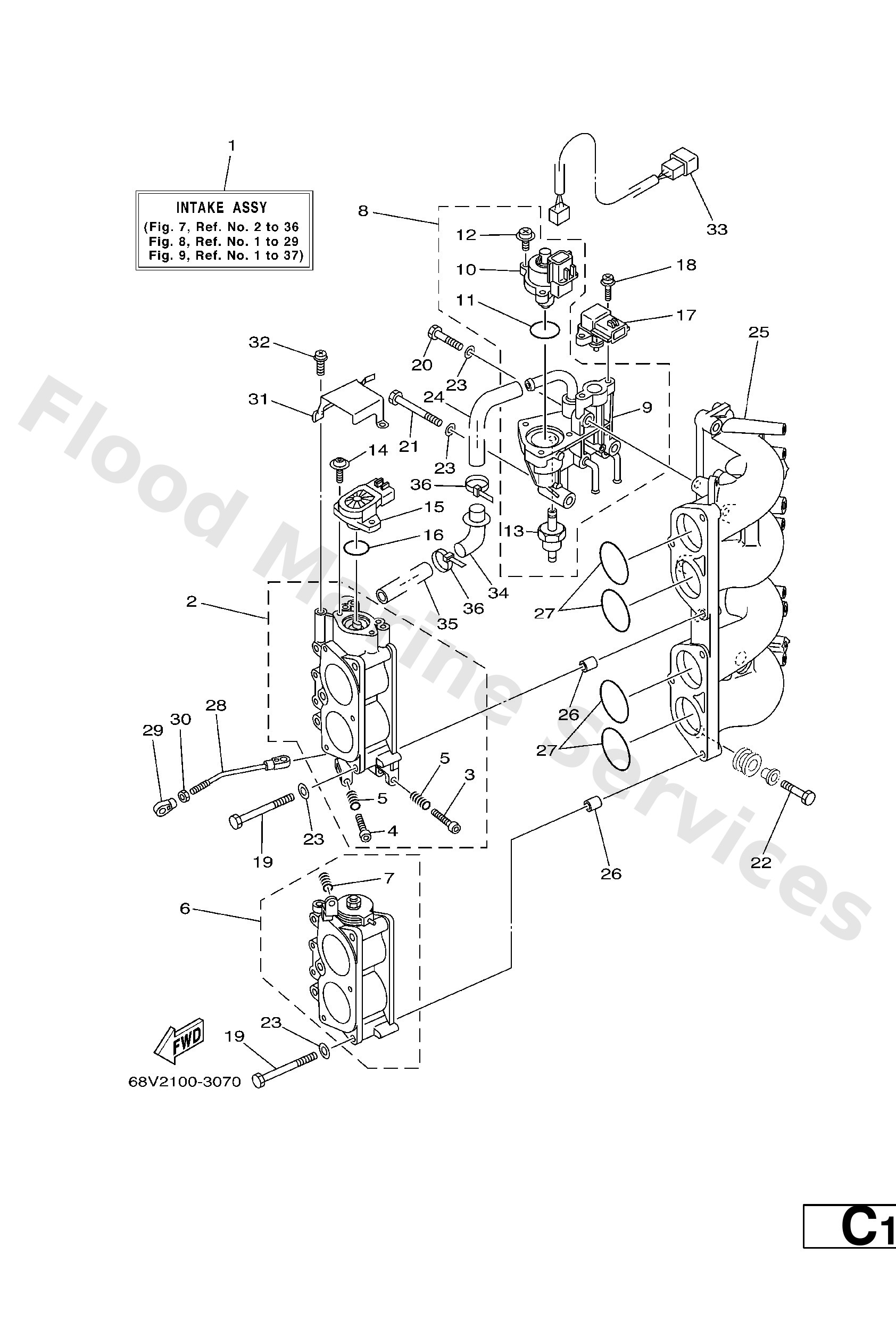

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
68V−14200−02
Intake assembly
Loading…
↗
2
68V−13751−01
Body, Throttle 1
Loading…
↗
3
68V−14323−00
Screw, air adjusting
Loading…
↗
4
68V−14321−00
Screw, throttle
Loading…
↗
5
68V−14331−00
Spring, throttle valve
Loading…
↗
6
68V−13752−01
Body, throttle 2
Loading…
↗
8
68V−13105−00
Control valve assembly
Loading…
↗
9
68V−14960−00
Body assembly
Loading…
↗
10
68V−1312A−00
Valve, control
Loading…
↗
11
68V−13473−00
O-ring
Loading…
↗
12
68V−81146−01
Screw 2
Loading…
↗
13
68V−14511−00
Filter assembly
Loading…
↗
14
68V−81145−01
Screw 1
Loading…
↗
15
68V−85885−00
Throttle sensor assembly
Loading…
↗
16
68V−8182L−00
O-ring 1
Loading…
↗
17
68V−82380−00
Sensor, pressure
Loading…
↗
18
68V−81147−00
Screw 3
Loading…
↗
19
68V−14496−00
Bolt
Loading…
↗
20
68V−13574−00
Bolt 2
Loading…
↗
21
68V−13573−00
Bolt 1
Loading…
↗
22
68V−14777−00
Bolt
Loading…
↗
23
68V−14475−00
Washer
Loading…
↗
24
68V−14419−10
Pipe
Loading…
↗
25
68V−13641−00−94
Manifold 1
Loading…
↗
26
99530−10114
Pin, dowel(3vd)
Loading…
↗
27
93210−48MG8
O-ring
Loading…
↗
28
68V−41237−00
Joint, link
Loading…
↗
29
6H4−41237−00
Joint, link
Loading…
↗
30
95380−05700
Nut (656)
Loading…
↗
31
68V−1441L−00
Bracket 1
Loading…
↗
32
68V−81145−00
Screw 1
Loading…
↗
33
68V−8259N−00
7−
Loading…
↗
34
68V−14453−00
Joint, air cleaner 1
Loading…
↗
35
68V−1441J−00
Pipe, silencer
Loading…
↗
36
68V−2417H−00
Clamp 1
Loading…
↗
