FL150AET (2008)
INTAKE 2

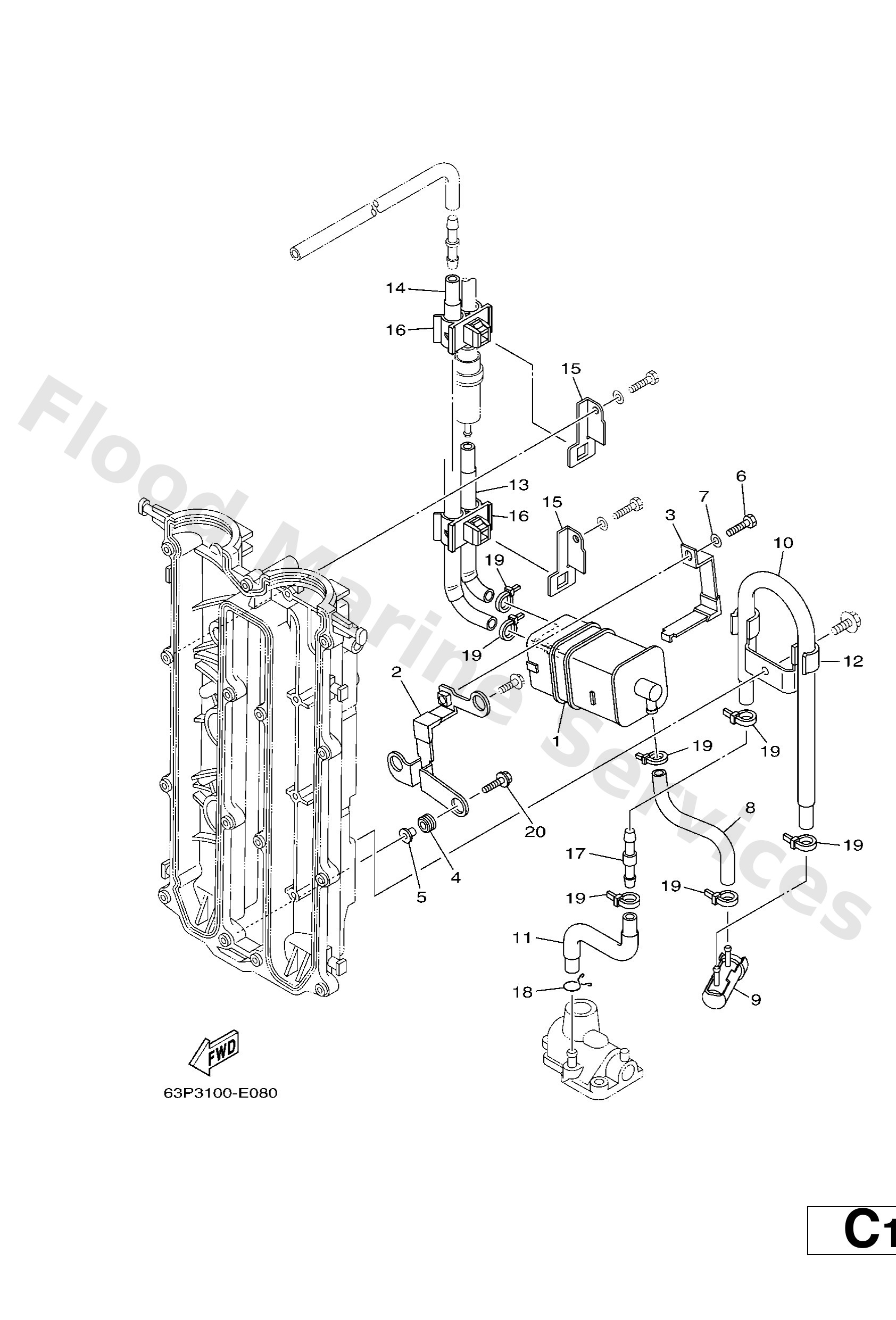

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
6P22417000
Canister assembly
Loading…
↗
2
63P2134X00
Bracket, canister
Loading…
↗
3
63P2419A00
Holder
Loading…
↗
4
9048010M23
Grommet(6k7)
Loading…
↗
5
9038706M60
Collar (6h3)
Loading…
↗
6
9709506016
Bolt, hexagon deep recess
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
64P2431300
Pipe 3
Loading…
↗
9
69J2450200
Filter, fuel
Loading…
↗
10
64P2431200
Pipe 2
Loading…
↗
11
64P2431100
Pipe, fuel 1
Loading…
↗
12
63P2436700
Clamp, fuel pipe 2
Loading…
↗
13
64P2431500
Pipe 5
Loading…
↗
14
64P2431400
Pipe 4
Loading…
↗
15
63P2436400
Stay
Loading…
↗
16
9046411012
Clamp
Loading…
↗
17
6E52437900
Pipe, joint 4
Loading…
↗
18
9046709M09
Clip(6k8)
Loading…
↗
19
9046511M10
Clamp
Loading…
↗
20
9011906135
Bolt, with washer
Loading…
↗
