FL350AET (2016)
INTAKE 2

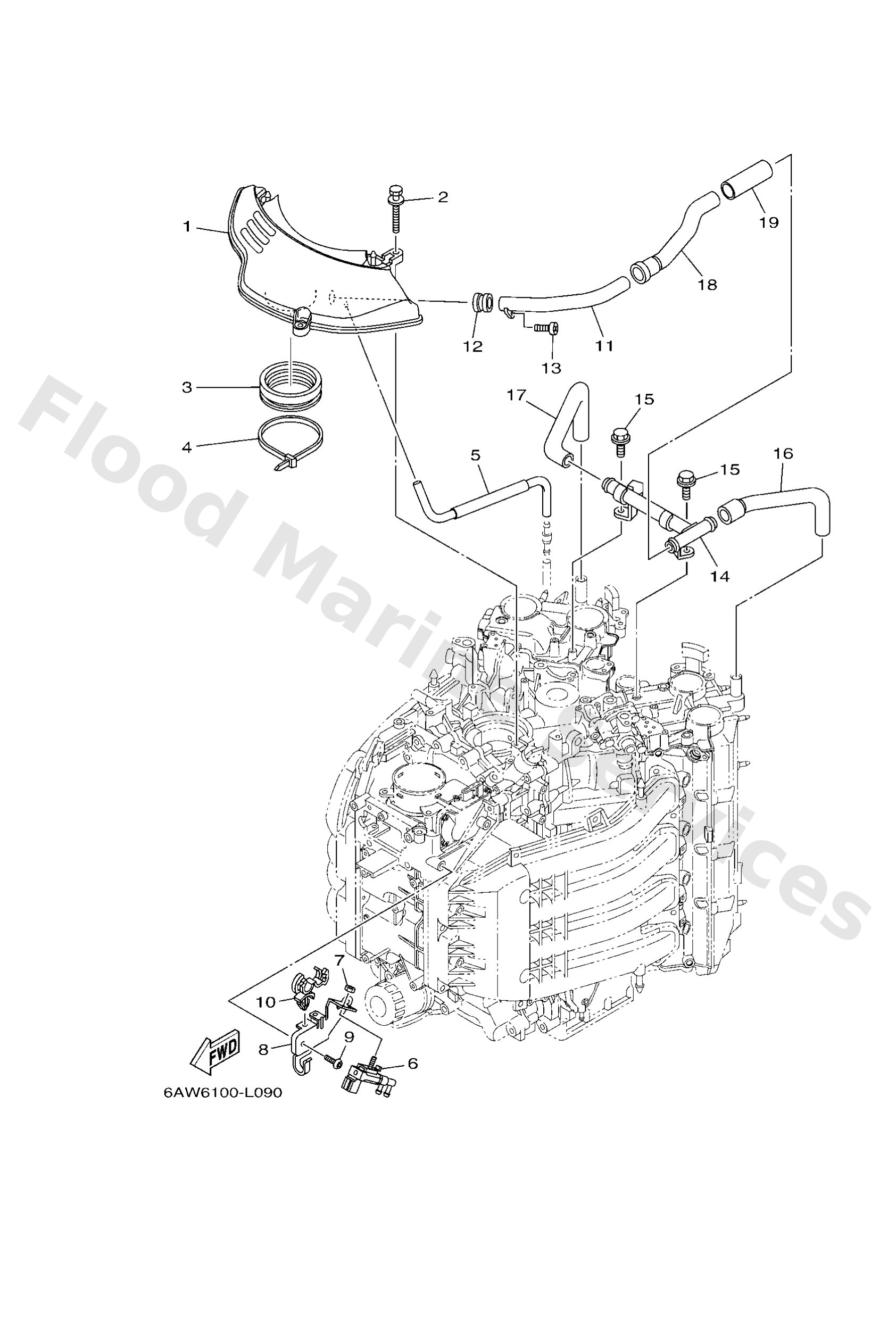

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
6AW1444000
Silencer assembly, intake
Loading…
↗
2
9011906M35
Bolt, with washer
Loading…
↗
3
6AW1441J00
Pipe, silencer
Loading…
↗
4
9046499004
Clamp
Loading…
↗
5
6AW1441900
Pipe
Loading…
↗
6
6C58612000
Solenoid valve assembly
Loading…
↗
7
9538006600
Nut(661)
Loading…
↗
8
6AW8611A00
Holder solenoid
Loading…
↗
9
9011106144
Bolt,hex. socket button
Loading…
↗
10
9046418246
Clamp(4tr)
Loading…
↗
11
6AW1537300
Pipe, breather
Loading…
↗
12
6AW1444500
Grommet
Loading…
↗
13
9778060620
Screw, tapping(6k8)
Loading…
↗
14
6AW1539300
Pipe, breather 2
Loading…
↗
15
9757506514
Bolt, hexagon w/w deep recess
Loading…
↗
16
6AW1531A00
Hose, breather 1
Loading…
↗
17
6AW1531A10
Hose, breather 1
Loading…
↗
18
6AW1532A00
Hose, breather 2
Loading…
↗
19
9044632002
Hose
Loading…
↗
