FT60JET (2025)
INTAKE 2

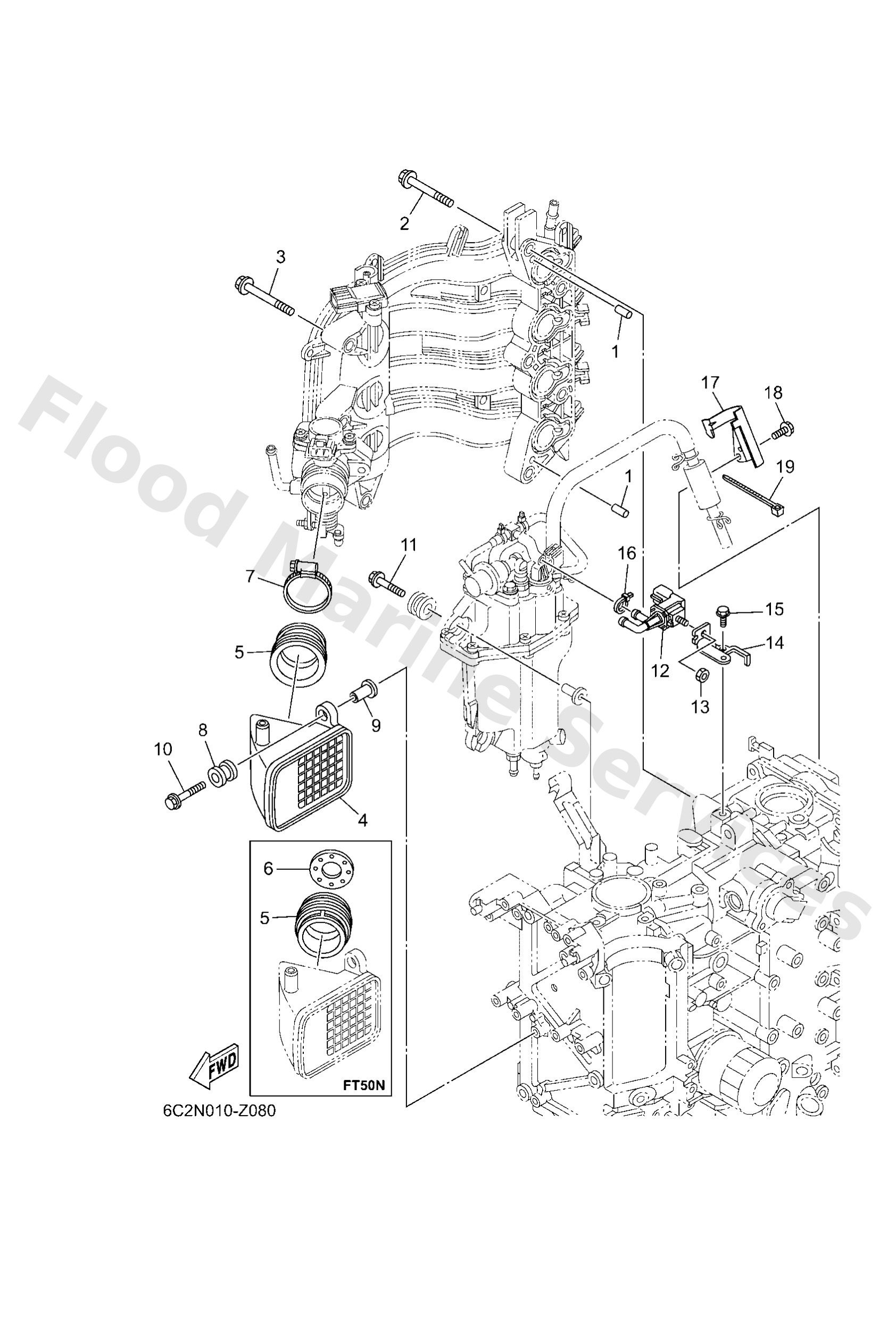

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
9360812M05
Pin, dowel b (6e5)
Loading…
↗
2
9011908190
Bolt, with washer
Loading…
↗
3
9011906304
Bolt, with washer
Loading…
↗
4
6C51444010
Silencer assembly, intake
Loading…
↗
5
6C11445302
FT50N
Joint, air cleaner 1
Loading…
↗
5
6C51445302
FT60J
Joint, air cleaner 1
Loading…
↗
6
6C11447700
FT50N
Plate
Loading…
↗
7
9045050001
Hose Clamp assembly
Loading…
↗
8
6A08231701
Damper, ignition coil
Loading…
↗
9
9038706119
Collar
Loading…
↗
10
9011906297
Bolt, with washer
Loading…
↗
11
9011906291
Bolt, with washer
Loading…
↗
12
6C58612000
Solenoid valve assembly
Loading…
↗
13
9538006600
Nut(661)
Loading…
↗
14
6BG8611210
Stay, solenoid
Loading…
↗
15
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
16
9046511M10
Clamp
Loading…
↗
17
6C51342801
Bracket, strainer 1
Loading…
↗
19
9046513M18
Clamp
Loading…
↗
