VF115B (2025)
INTAKE 2

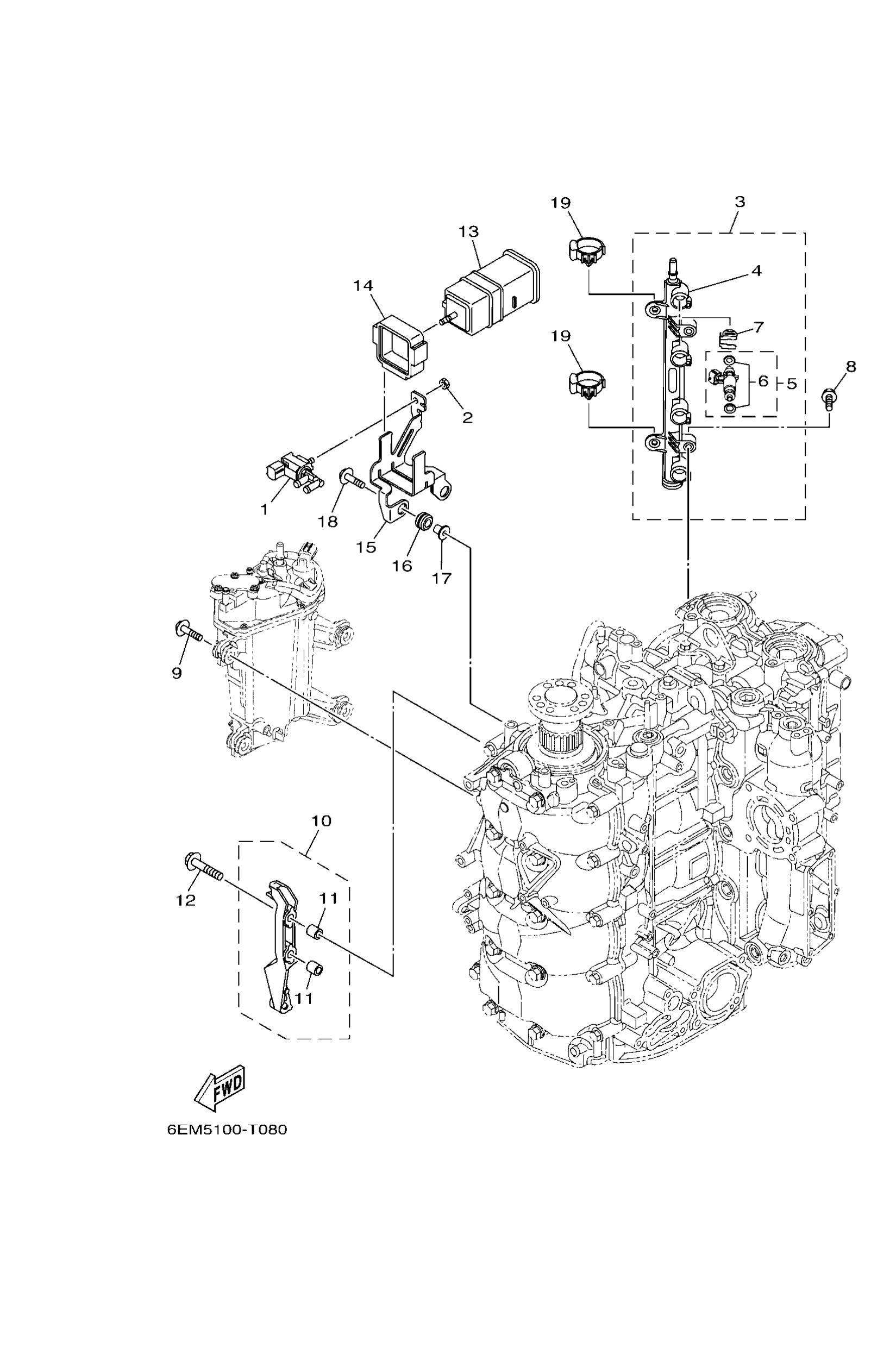

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
6C58612000
Solenoid valve assembly
Loading…
↗
2
9538006600
Nut(661)
Loading…
↗
3
6EK1316001
Delivery pipe assembly 1
Loading…
↗
4
6EK1316100
Pipe, delivery 1
Loading…
↗
5
6EK1376101
Injector
Loading…
↗
6
6AW1410B00
Packing kit
Loading…
↗
7
6AW1357710
Clip
Loading…
↗
8
9010506M08
Bolt (689)
Loading…
↗
9
9011906299
Bolt, with washer
Loading…
↗
10
6EM1429100
Bracket 1
Loading…
↗
11
9959010114
Pin, dowel
Loading…
↗
12
9010508M87
Bolt, washer based
Loading…
↗
13
6P22417000
Canister assembly
Loading…
↗
14
6FP2419E01
Cover, canister
Loading…
↗
15
6EK2134X10
Bracket, canister
Loading…
↗
16
9048010M23
Grommet(6k7)
Loading…
↗
17
9038706289
Collar
Loading…
↗
18
9011906309
Bolt, with washer
Loading…
↗
19
9046407209
Clamp(m80)
Loading…
↗
