VF90A (2022)
INTAKE 2

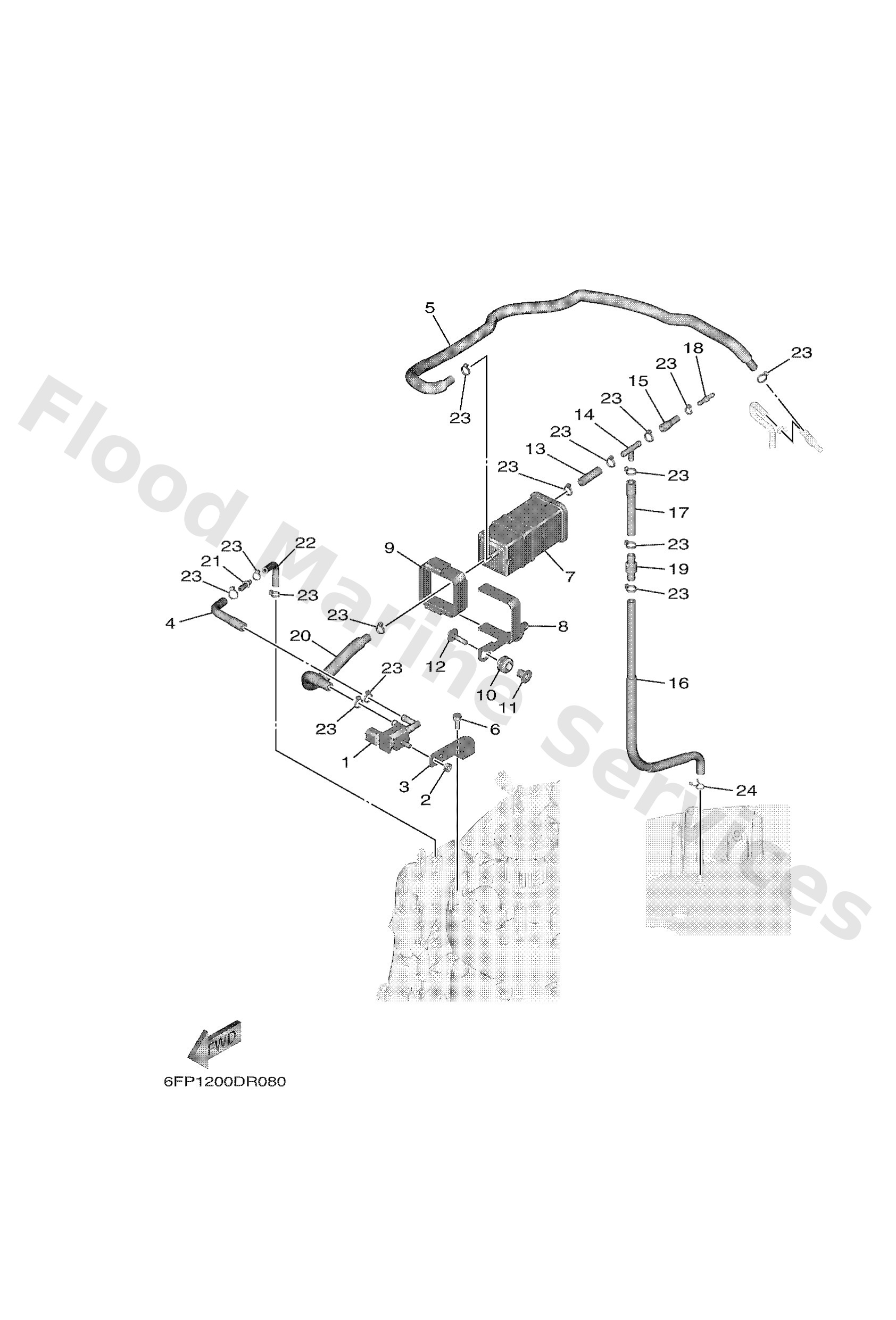

Diagram: INTAKE 2
Parts List
Reference
Description
Price
1
6C58612000
Solenoid valve assembly
Loading…
↗
2
9538006600
Nut(661)
Loading…
↗
3
6FP8611200
Stay, solenoid
Loading…
↗
4
6FP2416A00
Hose
Loading…
↗
5
6FP1475A00
Pipe 1
Loading…
↗
6
97E9506516
Bolt, hexagon w/w deep recess
Loading…
↗
7
69J2417000
Canister assembly
Loading…
↗
8
6FP2134X00
Bracket, canister
Loading…
↗
9
6FP2419E01
Cover, canister
Loading…
↗
10
9048010M23
Grommet(6k7)
Loading…
↗
11
9038706289
Collar
Loading…
↗
12
9011906309
Bolt, with washer
Loading…
↗
13
6AW1354510
Hose 1
Loading…
↗
14
6882437800
Pipe, joint
Loading…
↗
15
6FP1354600
Hose 2
Loading…
↗
16
6FP1354700
Hose 3
Loading…
↗
17
6FP1354800
Hose, air 4
Loading…
↗
18
6E52174400
Breezer
Loading…
↗
19
63D2174400
Breather
Loading…
↗
20
6FP1475F00
Pipe 3
Loading…
↗
21
6EK1498900
Orifice, air vent
Loading…
↗
22
6FP1475G00
Pipe 4
Loading…
↗
23
9046511M10
Clamp
Loading…
↗
24
9046709M17
Clip(6k8)
Loading…
↗
