F100DET (2017)
INTAKE 3

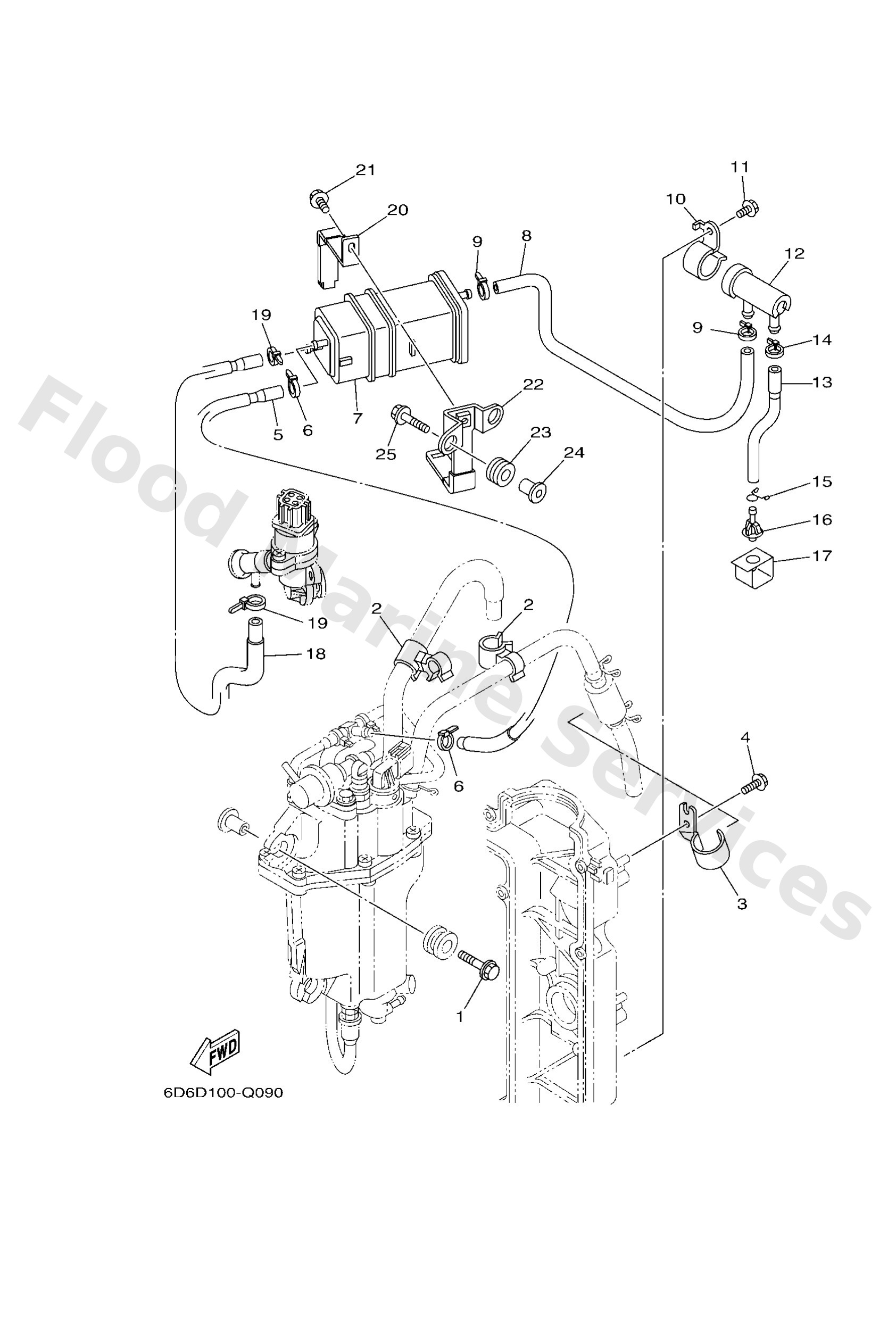

Diagram: INTAKE 3
Parts List
Reference
Description
Price
1
9011906M08
Bolt, with washer
Loading…
↗
2
9046415007
Clamp
Loading…
↗
3
6D81342801
Bracket, strainer 1
Loading…
↗
4
9759506512
Bolt, hexagon w/w deep recess
Loading…
↗
5
6D82431401
Pipe 4
Loading…
↗
6
9046511M10
Clamp
Loading…
↗
7
69J2417000
Canister assembly
Loading…
↗
8
6D82431500
Pipe 5
Loading…
↗
10
6D82417H01
Clamp 1
Loading…
↗
11
9759506510
Bolt, hexagon w/w deep recess
Loading…
↗
12
69J2450200
Filter, fuel
Loading…
↗
13
6D82431600
Pipe 6
Loading…
↗
15
9046709M03
Clip(6k8)
Loading…
↗
16
69J4439100
Nipple, hose
Loading…
↗
17
6D82413X01
Plate
Loading…
↗
18
6D82431701
Pipe 7
Loading…
↗
20
69J2419A01
Holder
Loading…
↗
21
9759506516
Bolt, with washer(6r6)
Loading…
↗
22
6D82134X00
Bracket, canister
Loading…
↗
23
9048010M23
Grommet(6k7)
Loading…
↗
24
9038706289
Collar
Loading…
↗
25
9011906M59
Bolt, with washer
Loading…
↗
